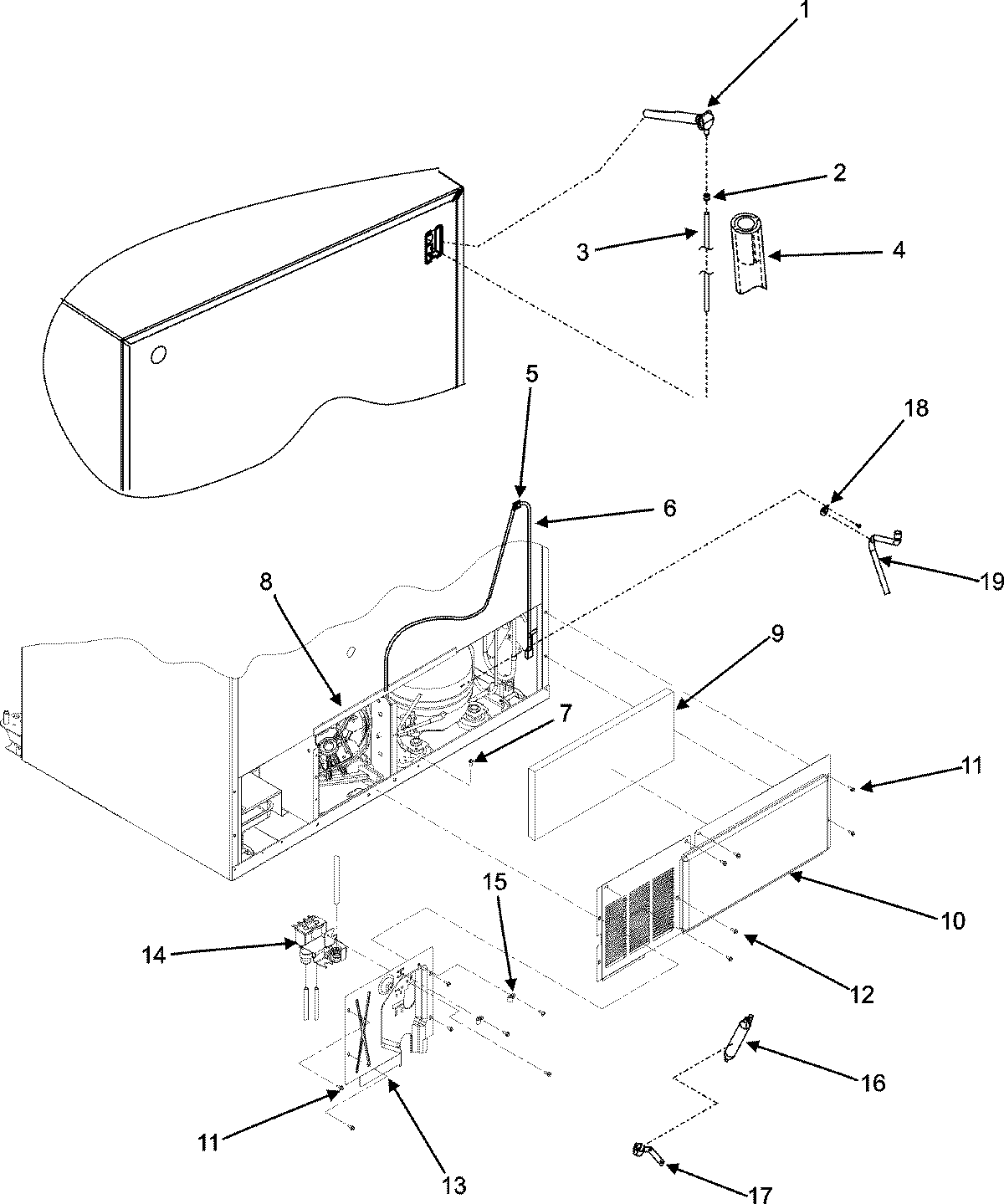

JCB2282HTB 02 – CABINET BACK

Products

Position	Product
1	MAY 67003579
2	Clip
3	WPB5705307 Whirlpool Refrigerator Tube
4	MAY A3223101
5	WPM0104106 Whirlpool Refrigerator Clip
6	WP67006506 Whirlpool Refrigerator Power Cord
7	MAY M0239216
8	Gasket
9	67003796 Whirlpool Refrigerator Fiber Acoustic
10	BACK, MACH COMP
10	MAY M0238616
13	MAY 12479803
13	MAY M0226528
14	681390 Whirlpool Refrigerator Screw
14	WP67003753 Whirlpool Refrigerator Inlet Valve
15	W10833902 Whirlpool Refrigerator Clamp
16	DRIER
17	W10709801 Whirlpool Refrigerator Screw
17	MAY 10547002
18	MAY M0102303
18	WP489069 Whirlpool Compactor Screw
19	MAY 12580401
