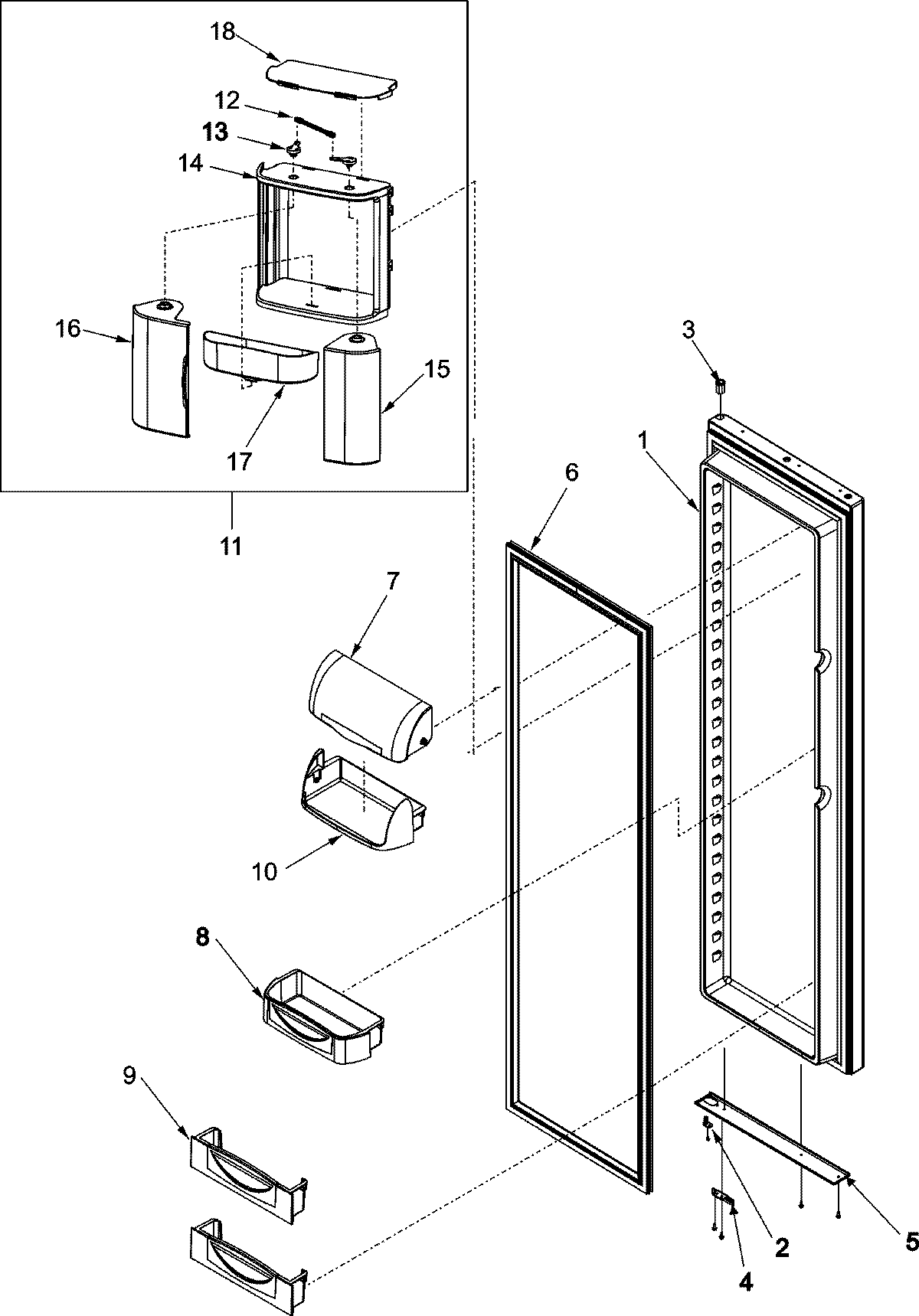

JCB2282HTB 13 – REFRIGERATOR DOOR

JCB2282HTB 13 – REFRIGERATOR DOOR

Written by

in

JCB2282HTB 13 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67003812
2MAY R0181181
2MAY M0220432
3MAY 10961002
4MAY 12636401B
4MAY M0211018
5MAY 67004202
6W10840101 Whirlpool Refrigerator FIP Gasket
7MAY 67001325
8MAY 67004540
9MAY 67004498
10MAY 67002304
11MAY 67004539
12Linkage, Center Chiller (2)
13Linkage, Chiller (4)
14Frame, Chiller (Large)
15Door Chiller (RT) (Large)
16MAY 67004542
17Tray, Chiller (2)
18Cover, Chiller (2)
