JCB2282KTW 13 – REFRIGERATOR DOOR
Written by
in

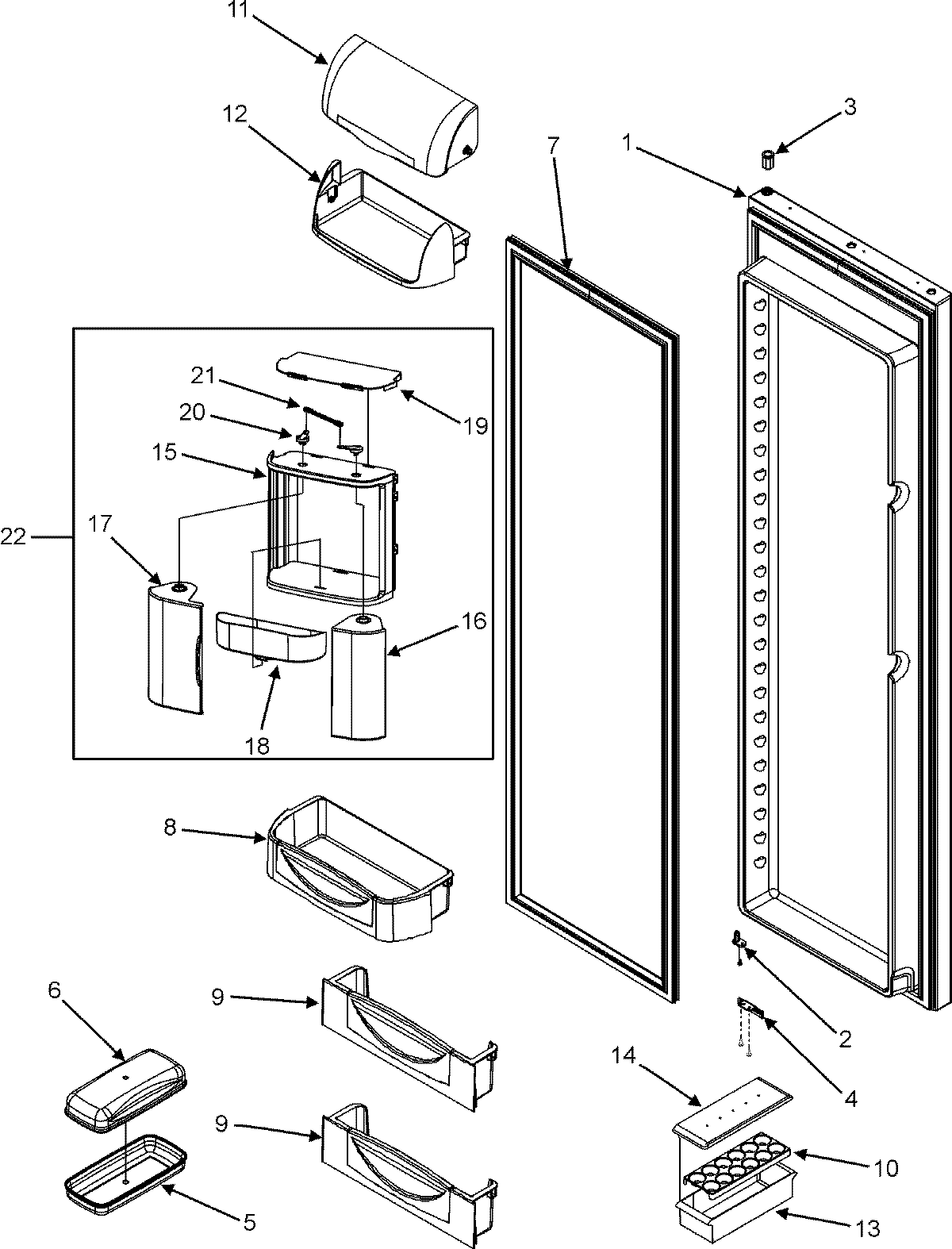

JCB2282KTW 13 – REFRIGERATOR DOOR
Products
Position
Product
1
MAY 67004622
1
MAY 12818225W
2
MAY M0220432
2
MAY 12113204
2
MAY 67006493
3
MAY 67004976
4
MAY M0211018
4
STOP, DOOR (WHT)
4
MAY 12636401W
5
MAY 67004404
6
MAY 67004405
7
MAY 67003966
8
MAY 67004540
9
MAY 67004498
10
MAY 10436506
11
MAY 67001325
12
MAY 67002304
13
MAY 10423131
14
MAY 10436404
15
Frame, Chiller (Large)
16
Door Chiller (RT) (Large)
17
MAY 67004542
18
Tray, Chiller (2)
19
Cover, Chiller (2)
20
Linkage, Chiller (4)
21
Linkage, Center Chiller (2)
22
MAY 67004539
←
