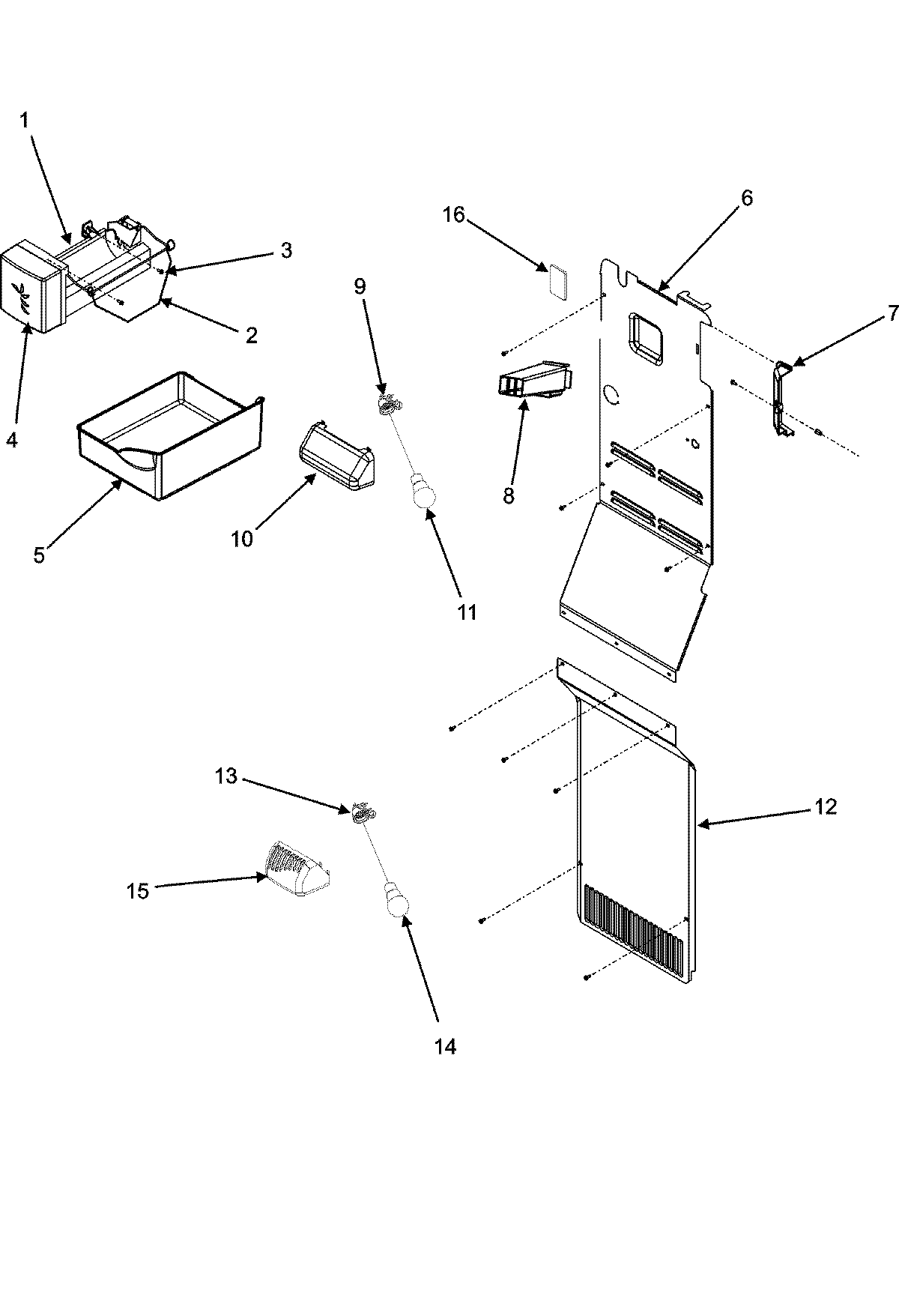

JCB2287KEF 08 – FREEZER COMPARTMENT

Written by

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	MAY 12671401
3	MAY M0211019
4	Cover
5	MAY 10476207
6	MAY 67005482
7	MAY 12583101
7	MAY M0580205
8	MAY 67003581
12	Screw (10)
12	MAY M0238616
12	MAY 67004192
13	Socket, Light (2)
14	RANGE ONLY 40W 120V APPL BULB
15	MAY 67004135
16	MAY 67005336
17	MAY 67005483
