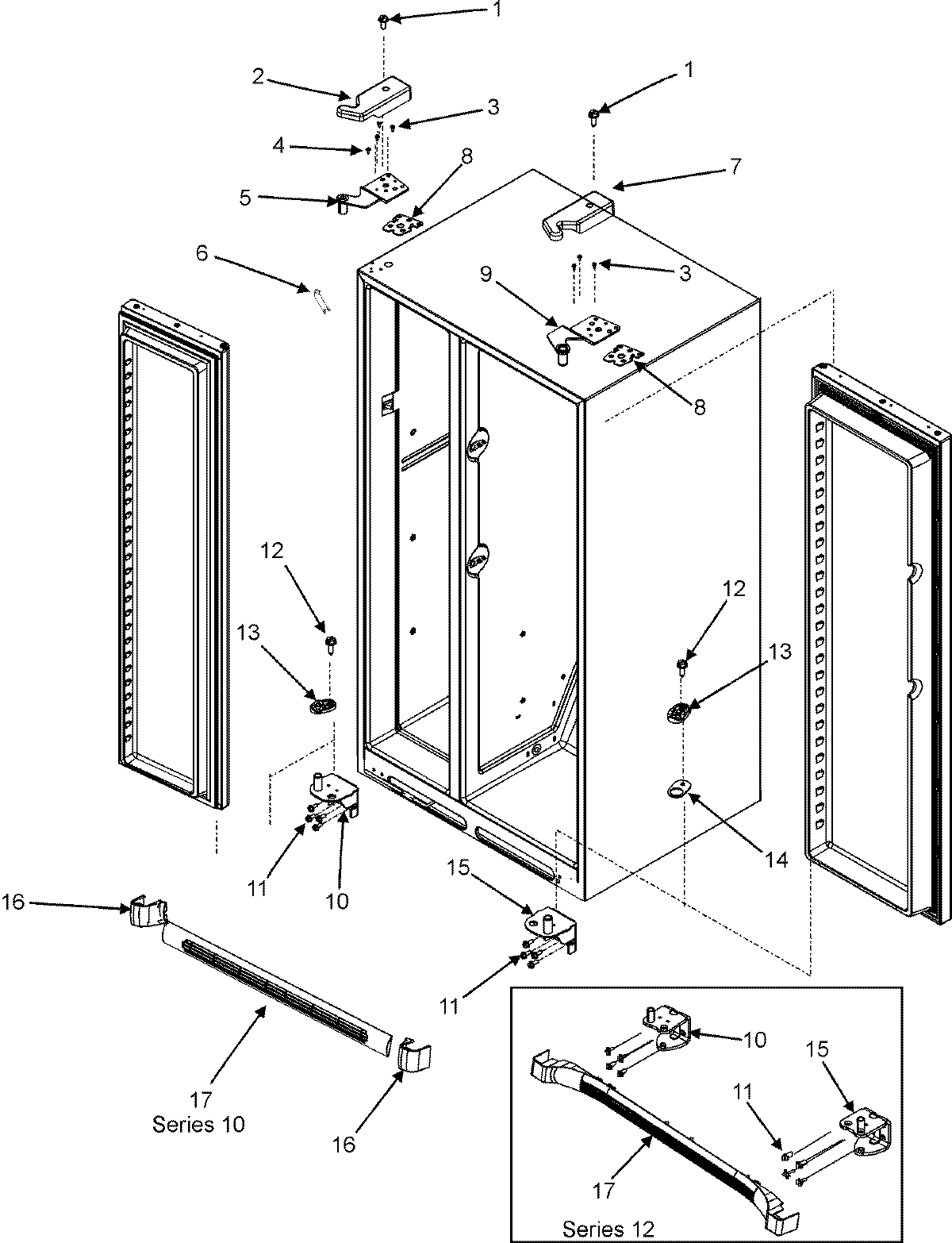

JCB2287KEY 11 – HINGES & TOE GRILLE

JCB2287KEY 11 – HINGES & TOE GRILLE

Written by

in

JCB2287KEY 11 – HINGES & TOE GRILLE

Products

PositionProduct
1WP8281196 Whirlpool Screw
2W10217485 Whirlpool Refrigerator Cover
3MAY M0238731
4W11214483 Whirlpool Refrigerator Screw
512626911ED Whirlpool Refrigerator Door Hinge
667003485 Whirlpool Refrigerator Corner Cover (Black)
7MAY 12629801B
8MAY 12695601
912626910ED Whirlpool Refrigerator Door Hinge
10MAY 12636901ED
10MAY 67006685
11MAY 67006491
11MAY 67003858
12MAY 67006492
12MAY M0220431
13MAY 67006493
13MAY 12431302
14MAY 10361806
15MAY 67005413
15MAY 67006686
16MAY 12630301B
17WP67002224 Whirlpool Refrigerator Grille Assembly
17Clip, Grille
17WP67006687 Whirlpool Refrigerator Front Grille
