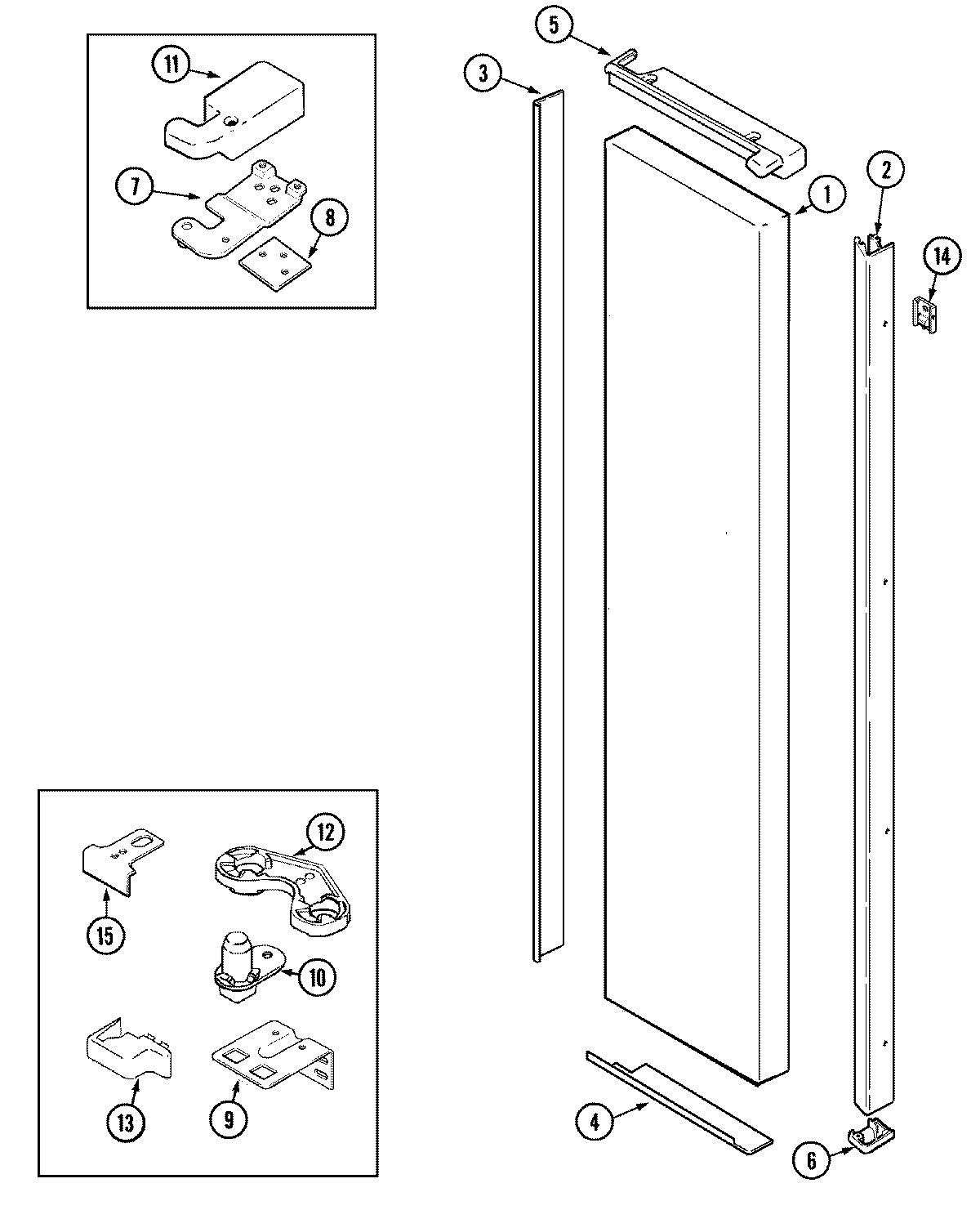

JCB2388DTB 05 – FREEZER OUTER DOOR (JCB2388DTB/W)

JCB2388DTB 05 – FREEZER OUTER DOOR (JCB2388DTB/W)

Written by

in

JCB2388DTB 05 – FREEZER OUTER DOOR (JCB2388DTB/W)

Products

PositionProduct
1MAY 61004220
2MAY 61004208
2MAY 61004345
3MAY 61004221
4MAY 61004222
4MAY 61004346
5MAY 61004396
5MAY 61004223
5MAY 61004173
6WPW10253196 Whirlpool Screw
6MAY 61004224
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004194
8MAY 61001922
93400112 Whirlpool Refrigerator Screw
9MAY 61004713
10MAY 61003174
11MAY 61004722
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004178
14MAY 61004179
15MAY 61004120
15W10856122 Whirlpool Refrigerator Screw
