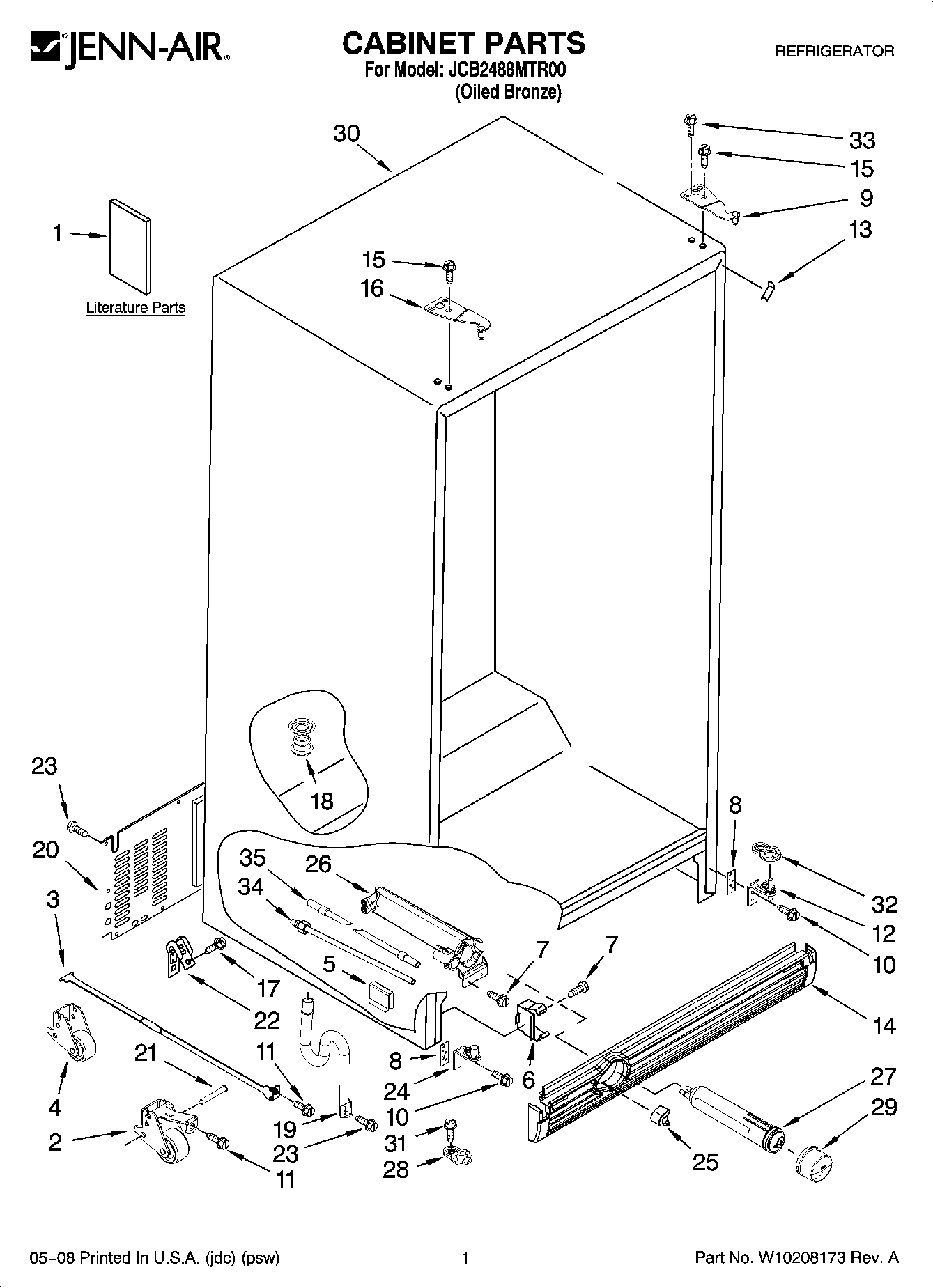

JCB2488MTR00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	MAY 2318477
1	MAY W10123700
1	MAY W10184739
1	MAY W10142175
2	MAY 2306951
2	MAY 2306950
3	MAY 2223263
4	MAY 2306949
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	MAY 489478
8	MAY 2223545
9	MAY 2307008B
10	Screw (4)
11	MAY 3400243
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893B
14	Grille, Filter (Black)
15	MAY 3400108
16	MAY 2307007B
17	Screw (3)
18	MAY 2304888
19	MAY 2254566
20	MAY 2223409
21	MAY 2223387
22	MAY 549193
23	MAY 489084
24	Hinge Assembly, Bottom-FC (Includes 28 & 31)
25	Button, Filter (Black)
26	MAY 2260526
27	MAY 4396841
28	MAY 2307051
29	MAY 2260502B
31	MAY 489483
32	Door Closer, RC
33	MAY 3400858
34	MAY 2204020
35	MAY 2319867
