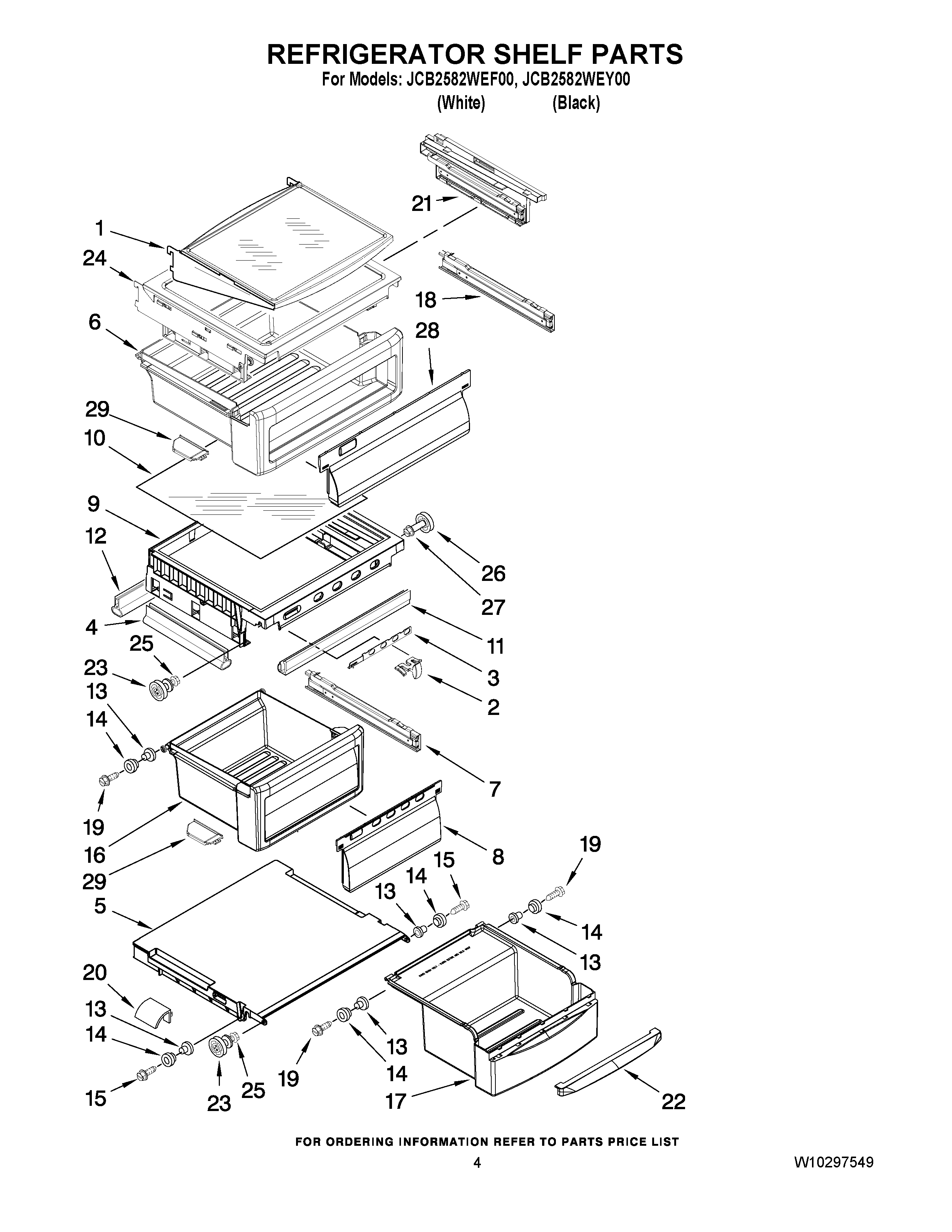

JCB2582WEF00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Button, Humidity
3	Slide, Humidity
4	MAY 2301117
5	COVER, MEAT PAN (INCLUDES ITEMS 13, 14, 15 & 20)
6	MAY W10163047
7	Glide Assembly, Crisper Pan (Right Side)
7	Glide Assembly, Crisper Pan (Left Side)
8	Window, Crisper Pan
9	MAY W10163043
11	Gasket (Front)
12	Gasket (Rear)
13	MAY 2174478
14	MAY 2188212
15	MAY 489211
16	Crisper Pan (Includes 8, 13 14, 19 & 29)
17	MAY W10162924
18	Glide Assembly, Snack Pan (Left Side)
18	Glide Assembly, Snack Pan (Right Side)
19	MAY 489261
20	MAY 2223487
21	MAY 2301570
21	MAY 2301569
22	Handle
23	Stud Assembly
24	MAY W10163049
25	MAY W10191954
26	Stud Assembly
27	MAY W10191952
28	MAY 2301006
29	Cap, Snack Pan (Left Side)
29	Cap, Snack Pan (Right Side)
