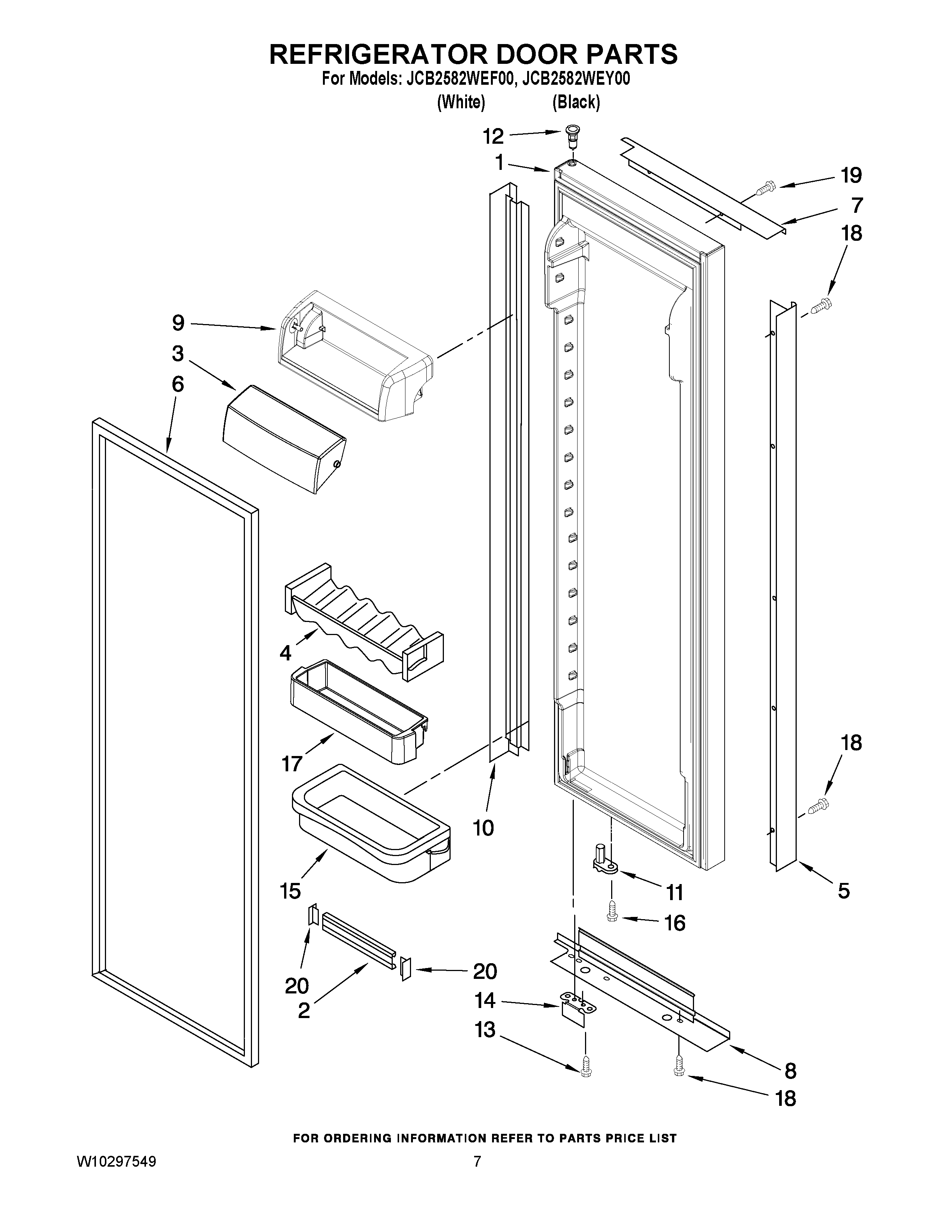

JCB2582WEF00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
2Trim, Shelf
3MAY 2255421
4MAY 2223883
5TRIM, HANDLE
6DOOR GASKET, MAGNETIC (WHITE)
6MAY 2223909
7TRIM, TOP
8TRIM, BOTTOM
9MAY 2223879
10TRIM, HINGE SIDE
11Thimble Cam, RC
12MAY 2308091
13MAY W10001250
14MAY 2306940
15MAY 2223860
16SCREW 10-32 X 1/2
17MAY 2224173
18MAY W10142284
19MAY 3196180
20MAY 2156006
