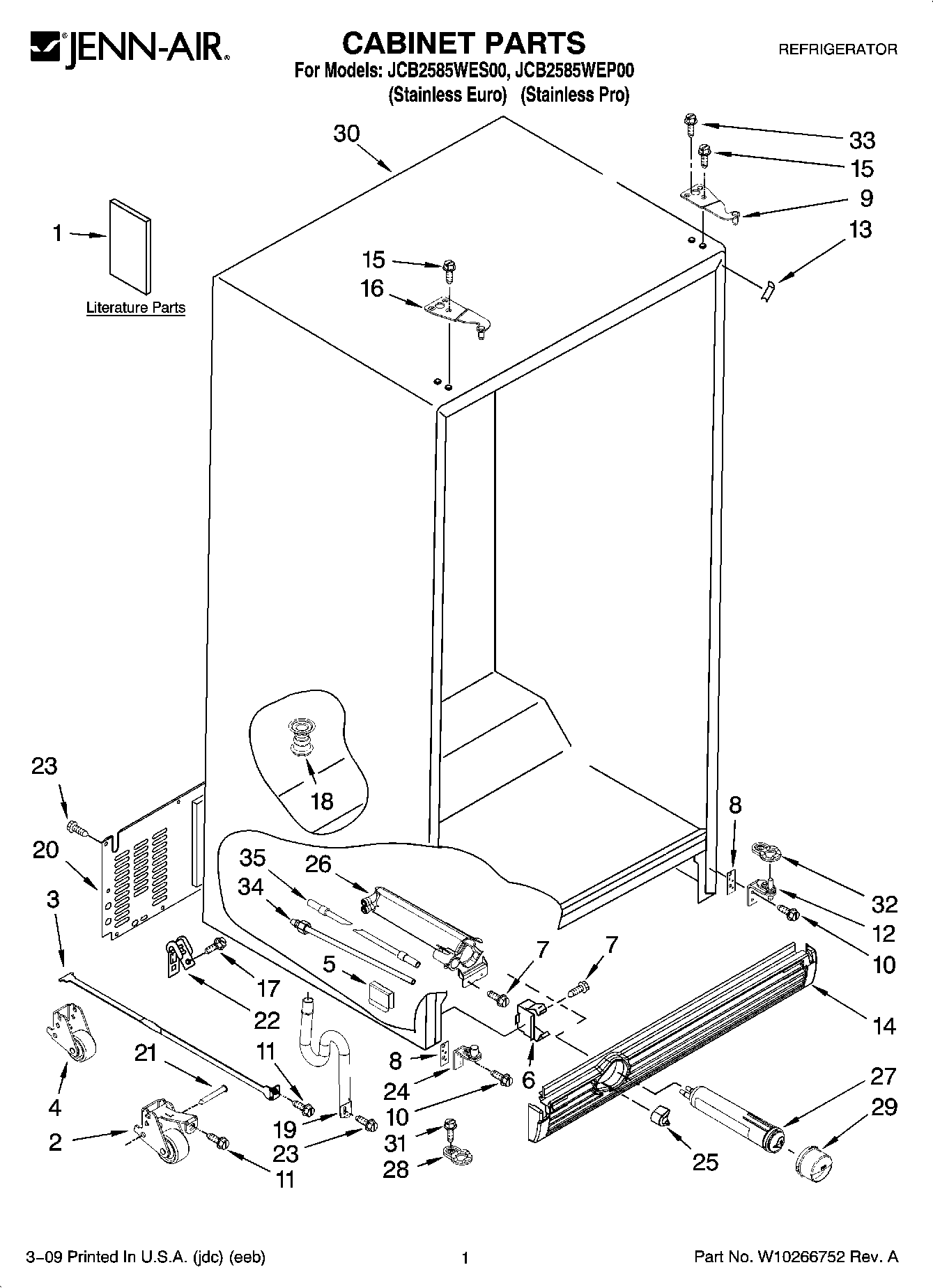

JCB2585WEP00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10142175
1	MAY 2220407
1	MAY 2318477
1	MAY W10168304
1	MAY W10252507
2	MAY W10199222
2	MAY W10199223
3	MAY W10199260
4	MAY W10173132
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	Screw
8	MAY 2223545
9	MAY 2307008AP
10	MAY W10151272
11	SCREW 8-32 X 1/2
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893AP
14	Grille, Filter (Midnight Grey)
16	MAY 2307007AP
17	SCREW 8-18 X 5/8
18	MAY 2304888
19	MAY 2254566
20	MAY 2223409
21	MAY 2223387
22	MAY 549193
23	MAY W10154233
24	Hinge Assembly, Bottom-FC (Includes 28 & 31)
25	BUTTON, WATER FILTER (GREY)
26	MAY W10121140
27	MAY 4396841
28	MAY 2307051
29	CAP, WATER FILTER (GREY)
31	SCREW, 8 X 1/2
32	Door Closer, RC
33	MAY W10001250
34	MAY 2224020
35	MAY 2319867
