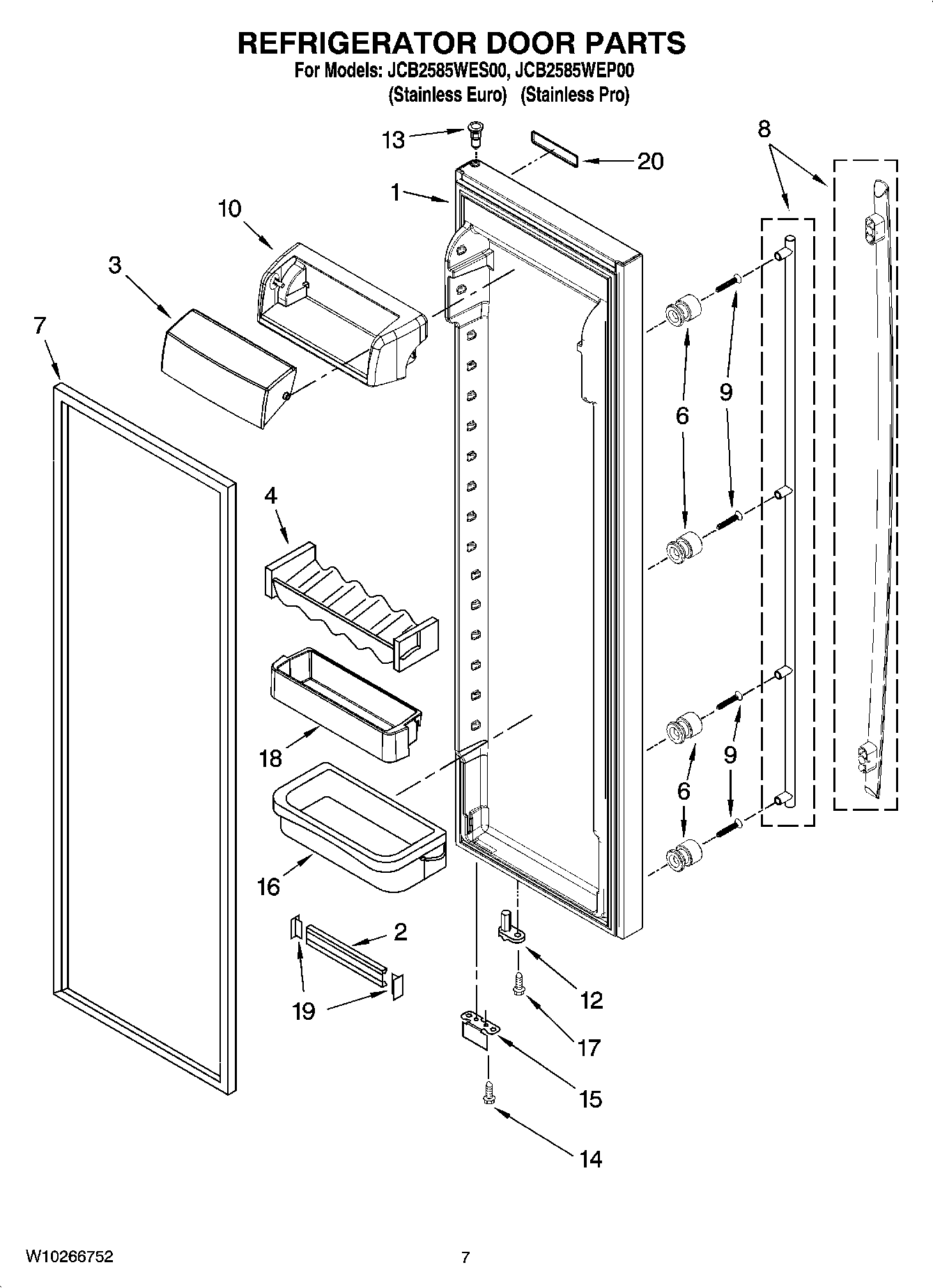

JCB2585WEP00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES No.7) (STAINLESS)
2	Trim, Shelf
3	MAY 2255421
4	MAY 2223883
6	MAY 67006109
7	MAY 2326341
8	MAY W10202812
8	HANDLE, DOOR
9	SCREW 8-15 X .813
10	MAY 2223879
12	Thimble Cam, RC
13	MAY 2308091
14	MAY W10001250
15	MAY 2306940
16	MAY 2223860
17	SCREW 10-32 X 1/2
18	MAY 2224173
19	MAY 2156006K
20	MAY W10159578
20	ASSEMBLY, BADGE (STAINLESS)
