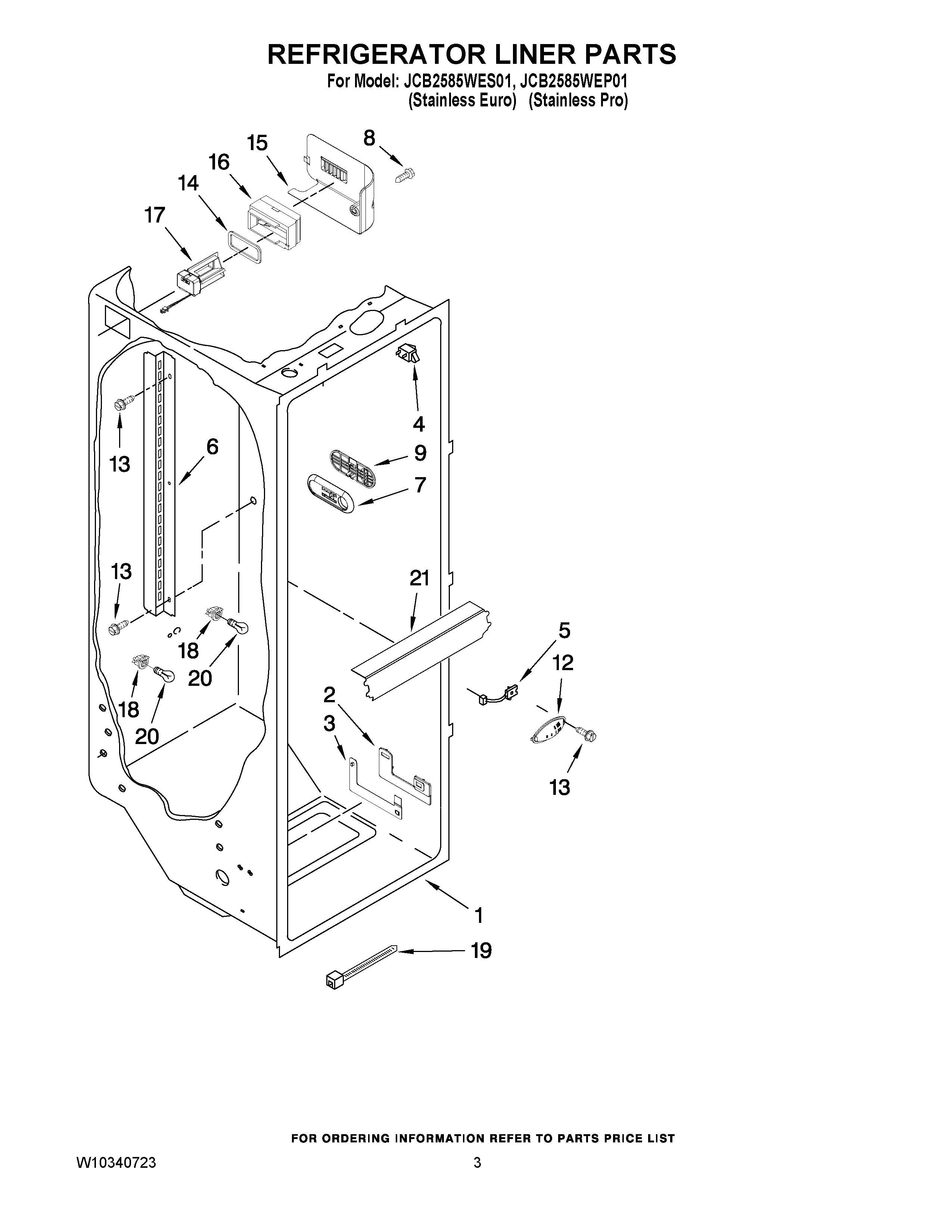

JCB2585WEP01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2223524
3MAY 2223339
4MAY 1118894
5MAY 2188820
6MAY 2223456
7MAY 2301234
8MAY W10141645
9MAY W10162918
12MAY 2317105
13SCREW 8-18 X 5/8
14MAY 2304597
15MAY 2223403
16MAY 2224076
17MAY 2220377
18Socket, Light
19TIE, WIRE
20MAY W10311505
21MAY 2223663
