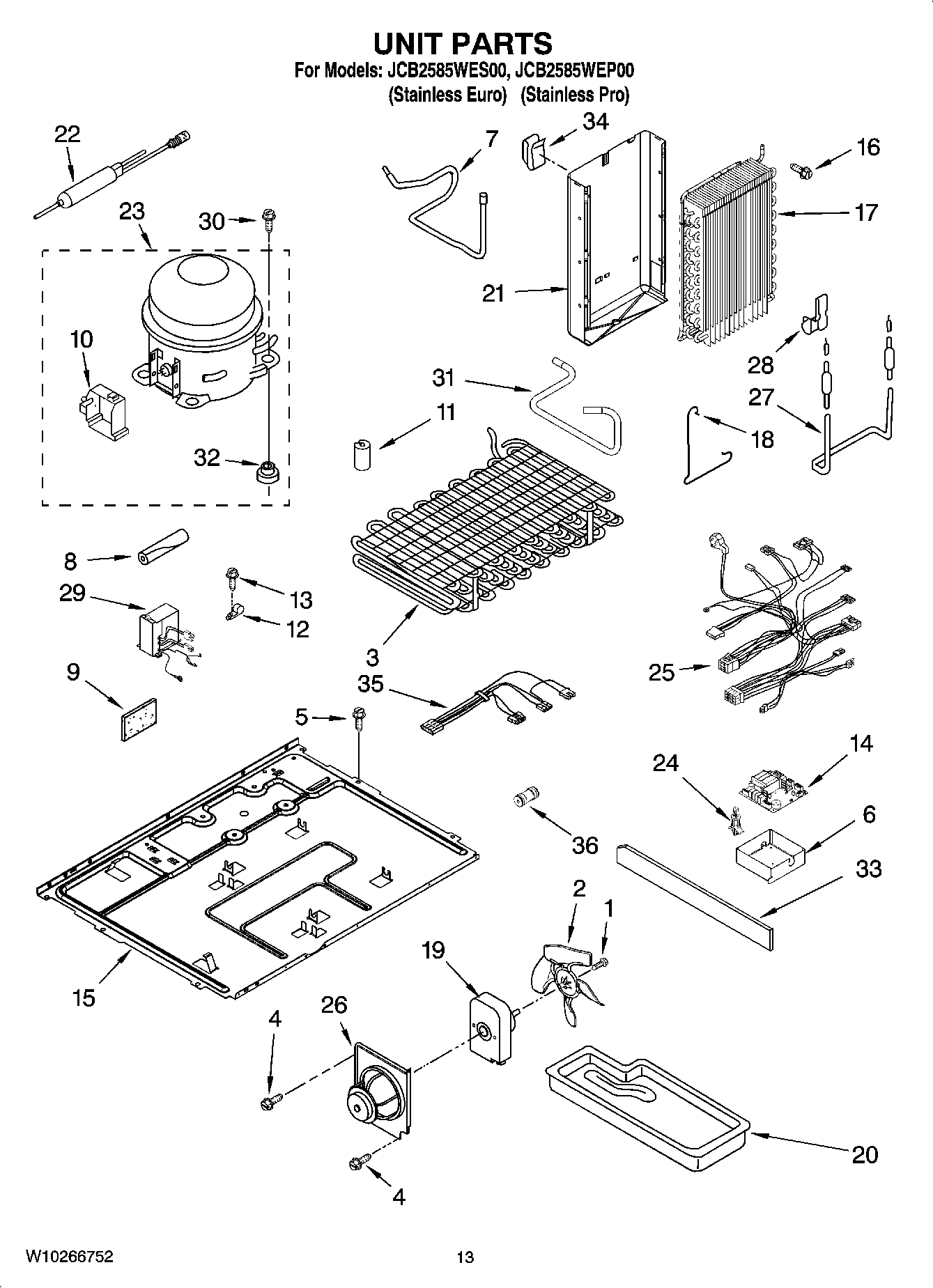

JCB2585WES00 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY W10141645
2	MAY W10139483
3	MAY W10193018
4	SCREW 8-32 X 1/2
5	SCREW
6	MAY 2223703
7	MAY 2223351
8	Sleeve, Pressure Switch Hose
9	SEALER, INSULATION
10	MAY 2215676
11	GROMMET, CONDENSER
12	Clamp, Cable
13	SCREW, 8-32 X 5/16
14	MAY W10219463
15	MAY 2306932
16	MAY W10001250
17	Evaporator
18	Clip
19	MOTOR, CONDENSOR
20	MAY 2223398
21	MAY 2224022
22	Drier
23	MAY W10183959
24	Spacer (5)
25	MAY 2187849
26	MAY 2224024
27	MAY 2323199
28	MAY 2304287
29	ASSEMBLY, INVERTER BOX
30	MAY 489373
31	MAY W10181542
32	Grommet (Production)
33	MAY 2223394
34	MAY 2155547
35	MAY 2310119
36	Connector, Water
