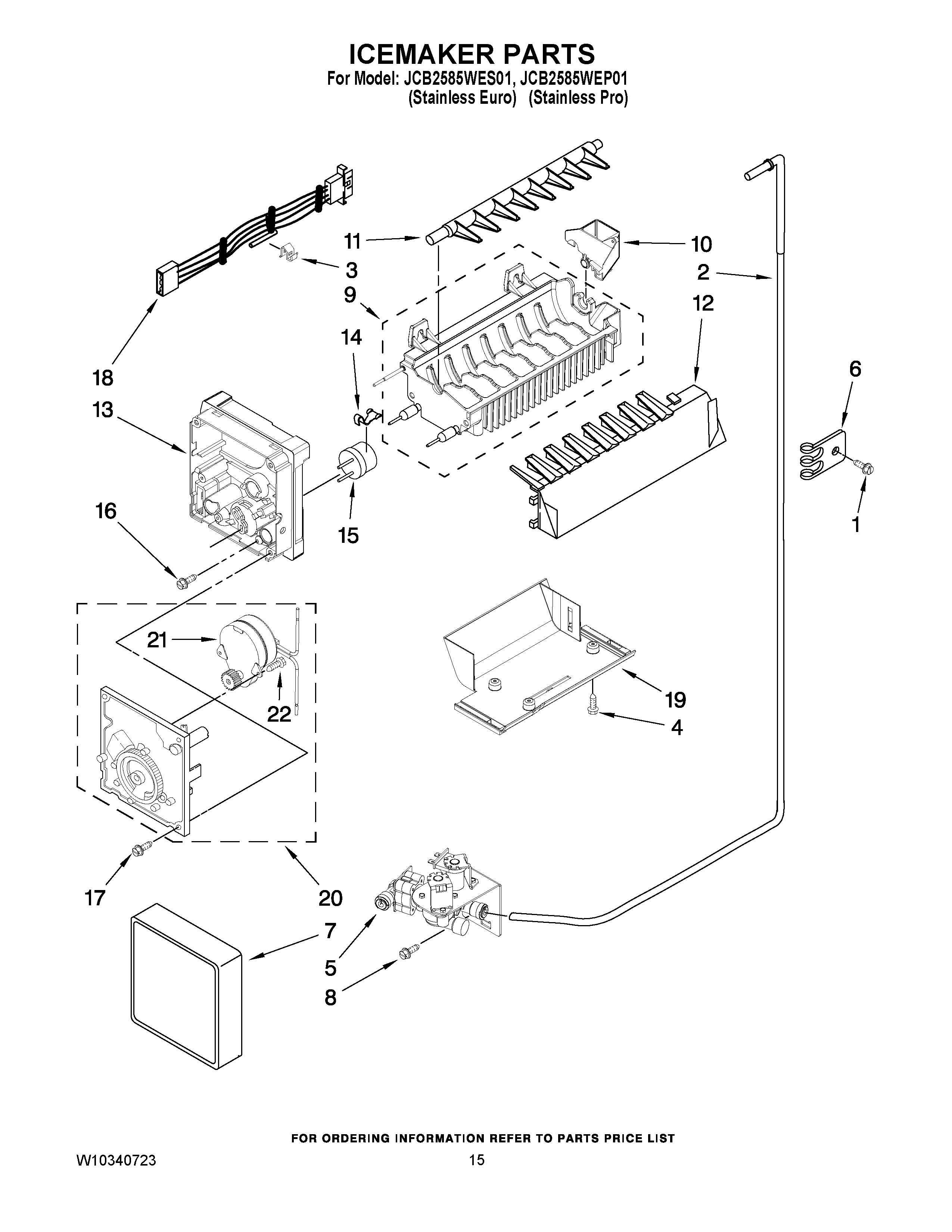

JCB2585WES01 10 – ICEMAKER PARTS

Products

Position	Product
1	MAY W10142287
2	MAY 2303216
3	Clip
4	SCREW 8-32 X 1/2
5	MAY W10216170
6	Clip, Tube
7	COVER
8	MAY W10146358
9	MAY W10122527
10	MAY W10272168
11	MAY 627843
12	STRIPPER, ICE
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2187467
19	Bracket, Ice Maker Mounting
20	Module Assembly (Includes Items 23 and 24)
21	MAY 626683
22	MAY 489136
100	MAY W10272869
