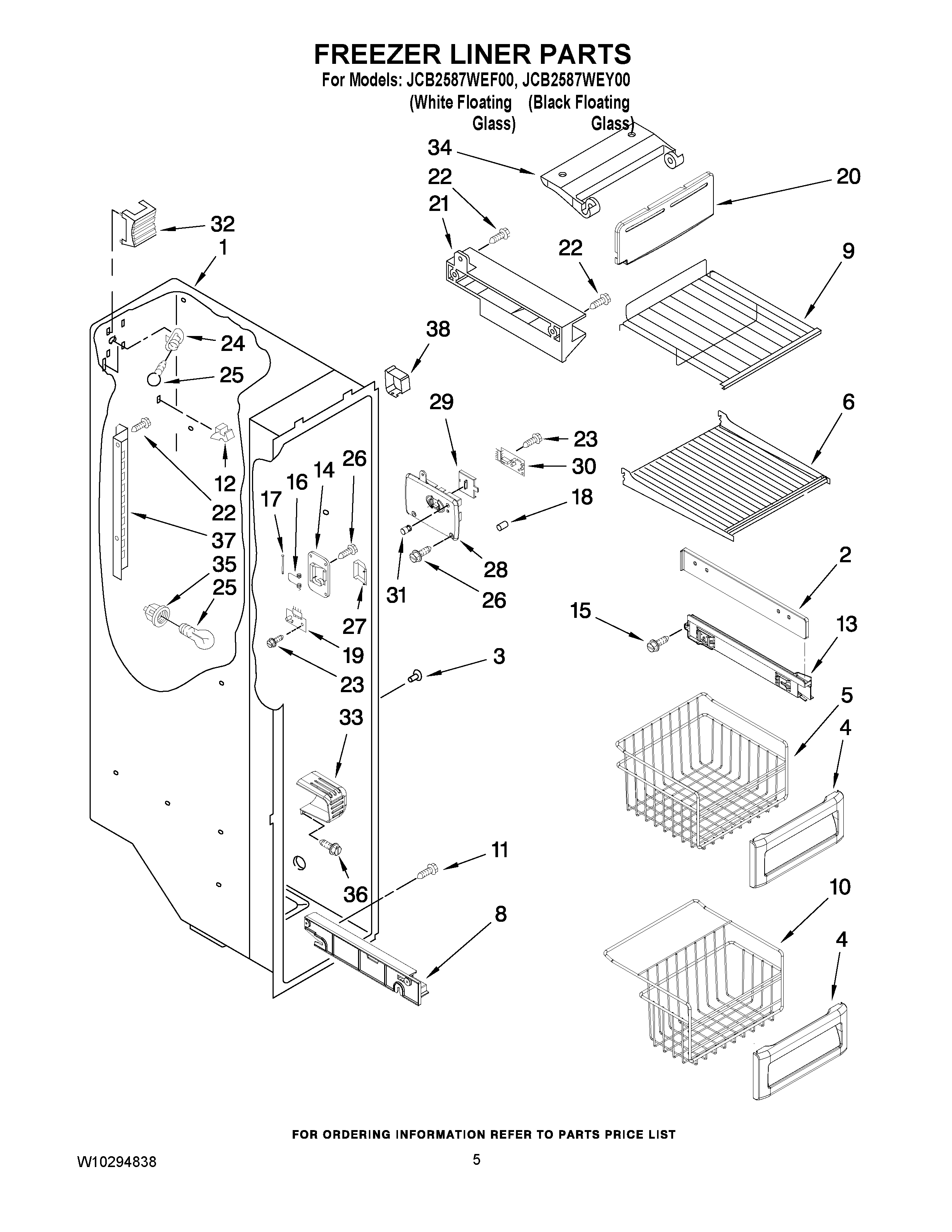

JCB2587WEF00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2223777
3	MAY 941839
4	Basket, Front
5	MAY 2223811
6	MAY 2223500
8	MAY 2223787
8	MAY 2223788
9	MAY 2223681
10	MAY 2223694
12	MAY 2315163
13	MAY 2301545
13	MAY 2301544
14	MAY 2259487
15	MAY 8534064
16	SPRING, DOOR
17	PIN, DOOR
18	MAY 2198665
19	MAY W10193840
20	MAY W10185438
21	Slide, Ice Maker Mounting (Right Side)
21	MAY 2306900
22	MAY 489478
23	Screw (2)
24	Socket, Light
25	MAY W10194422
26	MAY 8281185
27	MAY 2198633
28	MAY W10173569
29	MAY 2315398
30	MAY W10193666
31	MAY 2198643
32	MAY 2198589
33	MAY 2212340
34	Bracket, Ice Maker Cover
35	SOCKET, LIGHT
36	MAY 3400893
37	MAY 2223414
37	MAY 2223415
38	MAY 2303378
