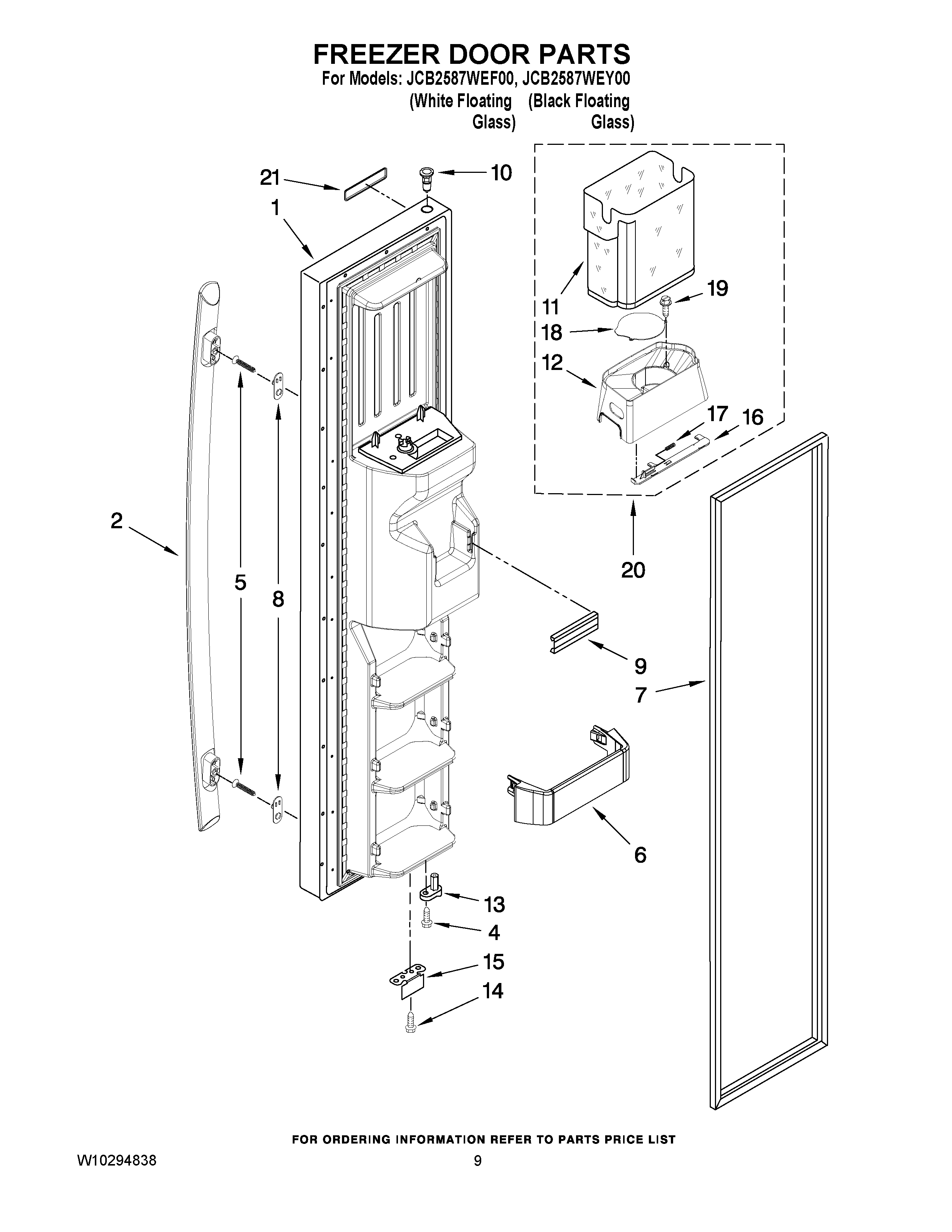

JCB2587WEF00 06 – FREEZER DOOR PARTS

JCB2587WEF00 06 – FREEZER DOOR PARTS

Written by

in

JCB2587WEF00 06 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10202801
1	MAY W10202802
2	MAY W10183426
2	MAY W10183427
4	SCREW 10-32 X 1/2
5	STUD SCREW
6	MAY 2223559
7	MAY 2223910
7	DOOR GASKET, MAGNETIC (WHITE)
8	SPACER, HANDLE (BLACK)
8	MAY W10190715
9	MAY 2219982
10	MAY 2308091
11	Upper Bin
12	MAY W10162938
13	Thimble Cam, FC
14	MAY 489420
15	MAY 2306940B
15	MAY 2306940
16	MAY 2317272
17	MAY 2198608
18	MAY W10131326
19	SCREW (STAINLESS)
20	MAY W10162937
21	ASSEMBLY, BADGE (BLACK)
21	ASSEMBLY, BADGE (WHITE)
