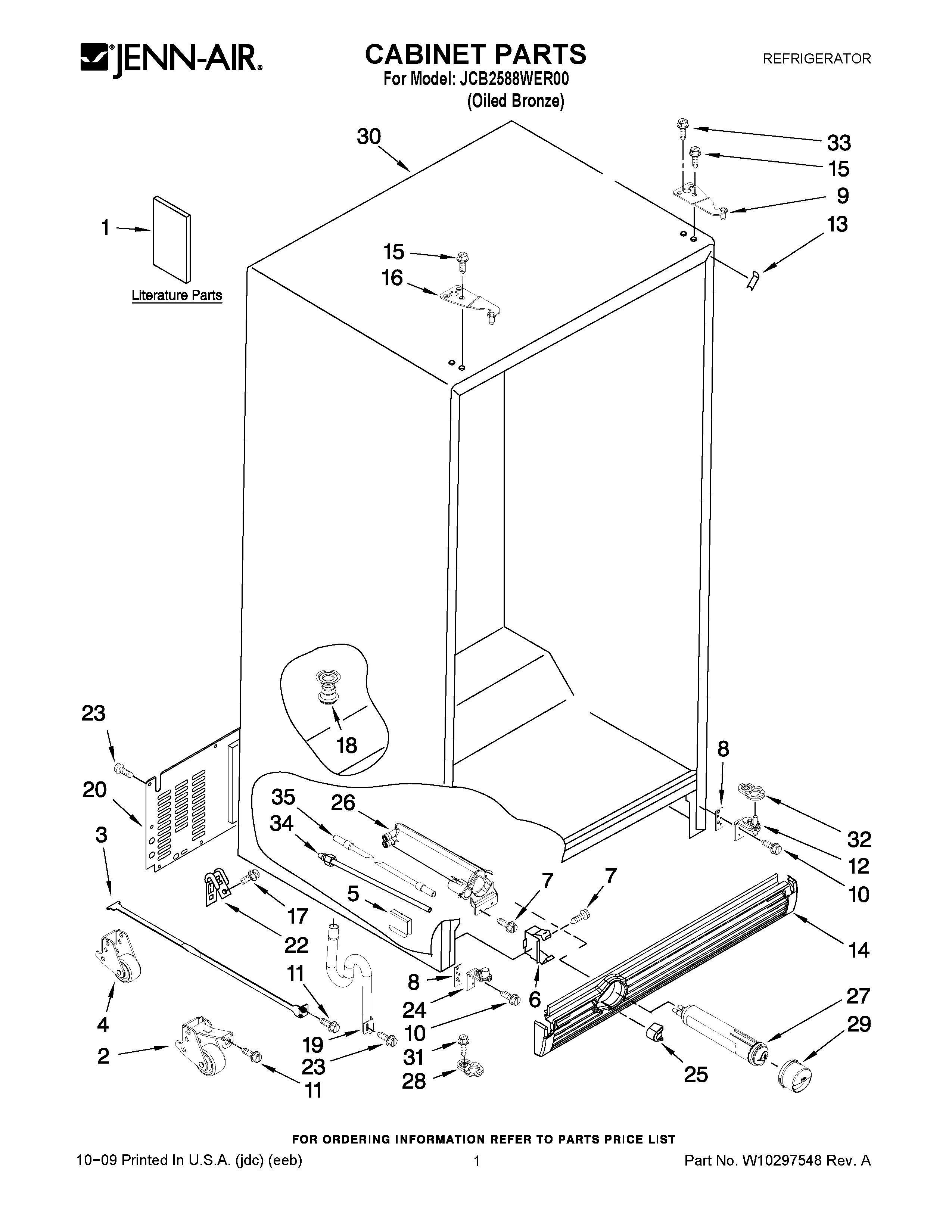

JCB2588WER00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10168304
1	MAY 2220407
1	MAY 2318477
1	MAY W10142175
1	MAY W10268712
2	MAY W10199222
2	MAY W10199223
3	MAY W10199260
4	MAY W10173132
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	MAY 489478
8	MAY 2223545
9	MAY 2307008B
10	Screw (4)
11	MAY 3400243
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893B
14	Grille, Filter (Black)
15	MAY 3400108
16	MAY 2307007B
17	Screw (3)
18	MAY 2304888
19	MAY 2254566
20	MAY 2223409
22	MAY 549193
23	MAY 489084
24	Hinge Assembly, Bottom-FC (Includes 28 & 31)
25	Button, Filter (Black)
26	MAY W10121140
27	MAY 4396841
28	MAY 2307051
29	MAY 2260502B
30	LINER (NOT A SERVICEABLE PART)
31	MAY 489483
32	Door Closer, RC
33	MAY 3400858
34	MAY 2224020
35	MAY W10212512
