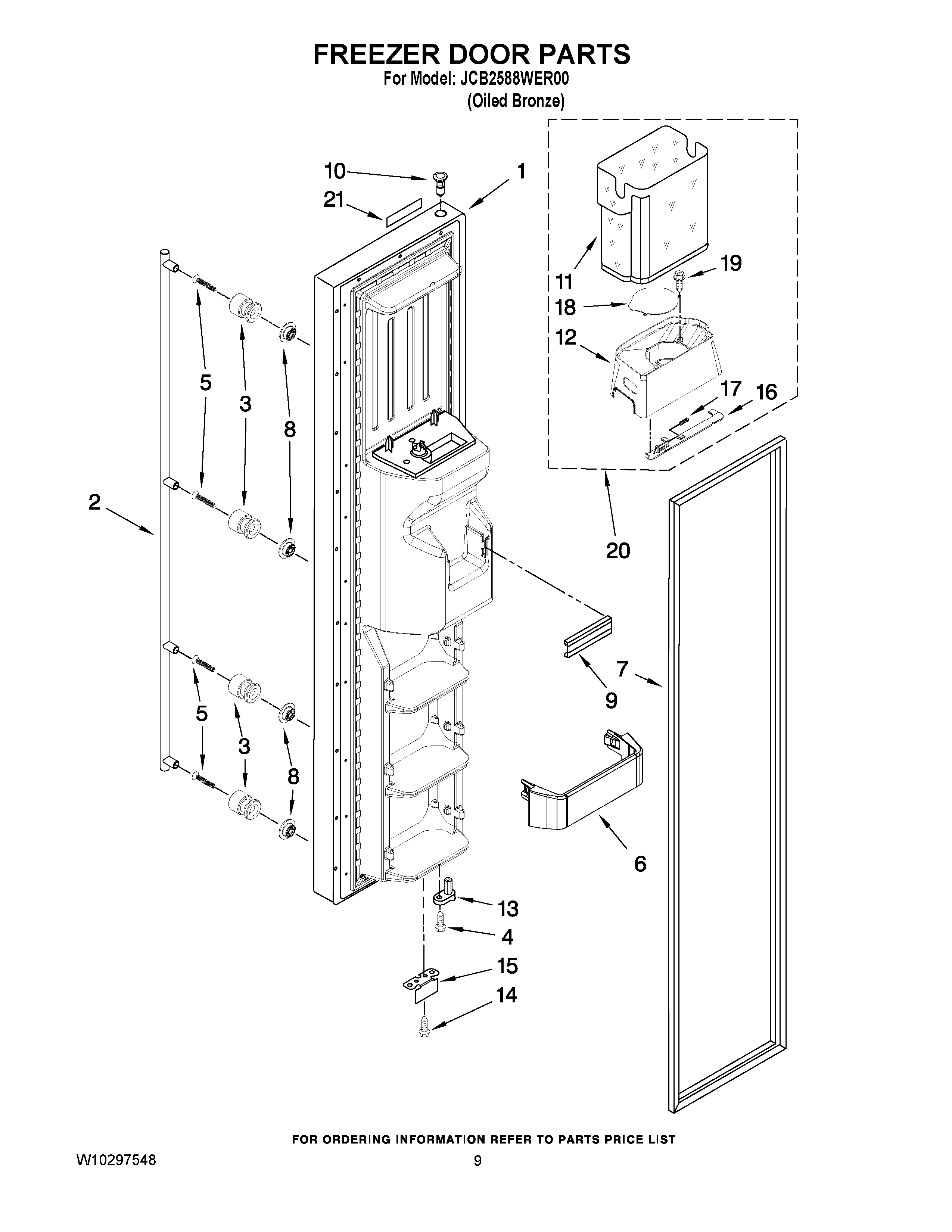

JCB2588WER00 06 – FREEZER DOOR PARTS

JCB2588WER00 06 – FREEZER DOOR PARTS

Written by

in

JCB2588WER00 06 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10214165
2	MAY W10202814
3	MAY 67006109
4	MAY 3400012
5	STUD SCREW
6	MAY 2223559K
7	MAY 2223910
8	SPACER, HANDLE (BLACK)
9	MAY 2219982
10	MAY 2308091
11	Upper Bin
12	MAY W10162938
13	Thimble Cam, FC
14	MAY 489420
15	MAY 2306940B
16	MAY 2317272
17	MAY 2198608
18	MAY W10131326
19	SCREW (STAINLESS)
20	MAY W10162937
21	ASSEMBLY, BADGE (OILED BRONZE)
