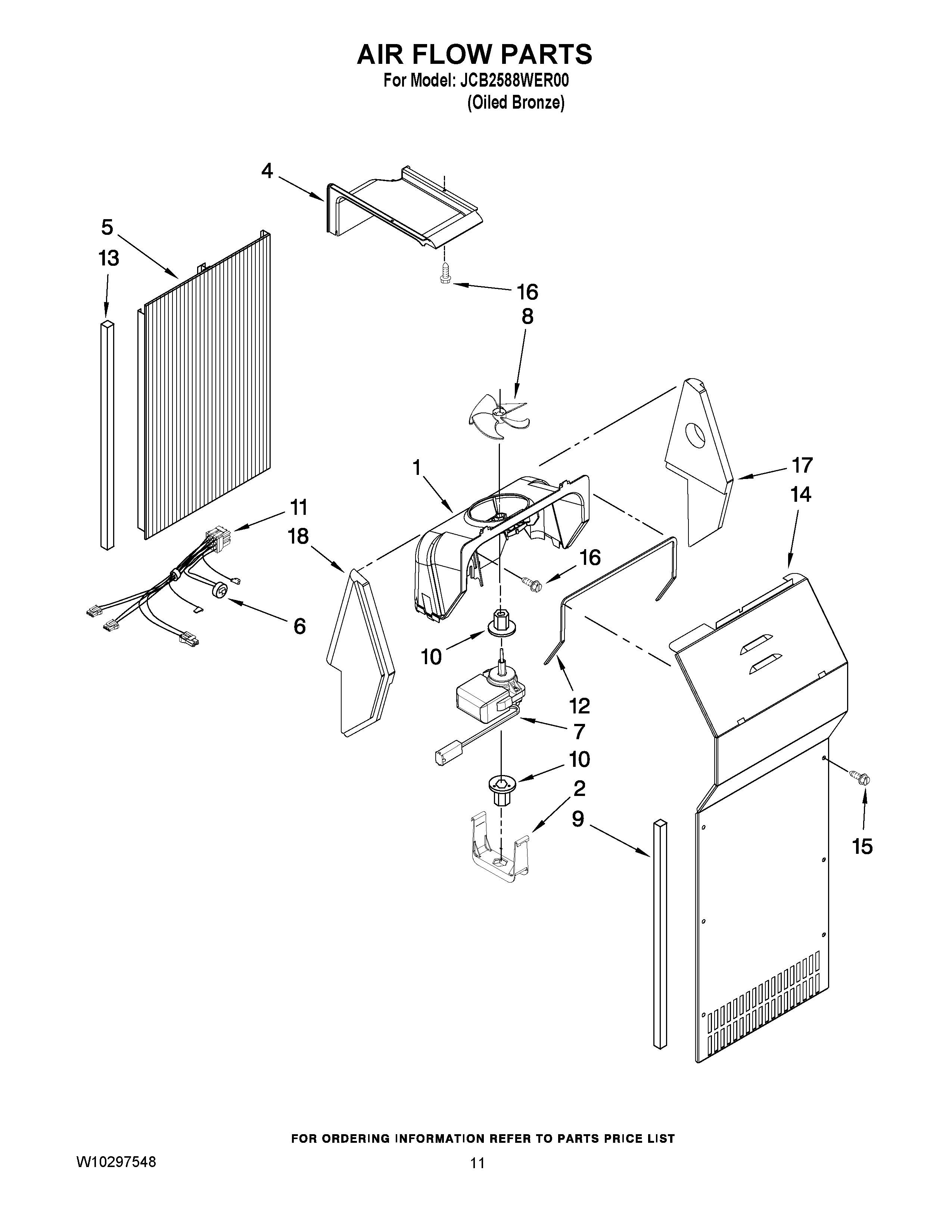

JCB2588WER00 07 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2223733
4	MAY W10256500
5	MAY 2223297
6	MAY 2321799
7	MAY 2259385
8	Blade, Fan (Evaporator)
9	Gasket
10	Grommet
11	HARNESS, FAN EVAPORATOR (INCLUDES No.6)
12	Gasket, Fan Scroll
13	MAY 2203876
14	MAY 2223413
15	MAY 8281159
16	MAY 489478
17	MAY 2223395
18	SUPPORT, FAN SCROLL (LEFT HAND)
