JCB850SR2SS LOWER DOOR

JCB850SR2SS LOWER DOOR

Written by

in

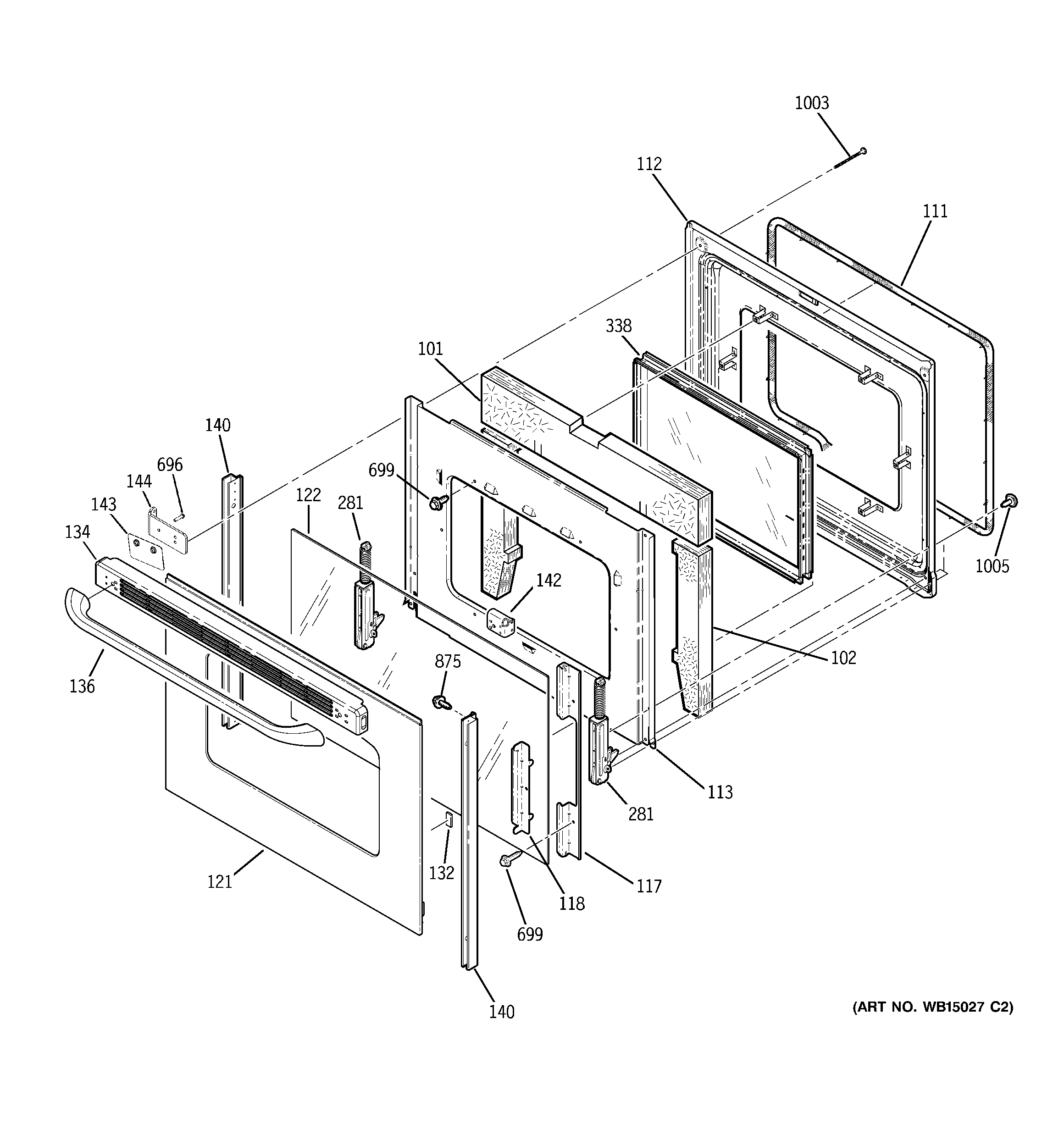

JCB850SR2SS LOWER DOOR

Products

PositionProduct
101WB35X30052 GE Oven Door Insulation Assembly
102WB35K10025 GE Oven Side Door Insulation
111WB04T10050 GE Oven Door Gasket
112WB55T10148 GE Oven Door Liner Assembly
113WB02T10371 GE Oven Retainer Insulation
117WB56T10320 GE Oven Glass Door Retainer
118WB56T10321 GE Oven Door Glass Retainer
121WB56T10301 GE Oven Outer Door Panel
122WB57T10233 GE Oven Inner Door Glass
132WB01T10026 GE Oven Door Pad
134GEN WB07T10699
136WB15T10163 GE Oven Stainless Steel Handle
140GEN WB56T10312
142WB34X42027 GE Right Hand Door Trim Bracket
143GEN WB02T10496
144GEN WB02T10349
281GEN WB10T10127
281GEN WB10T10126
338WB56T10105 GE Oven Inner Window Assembly
696WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
1003GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
