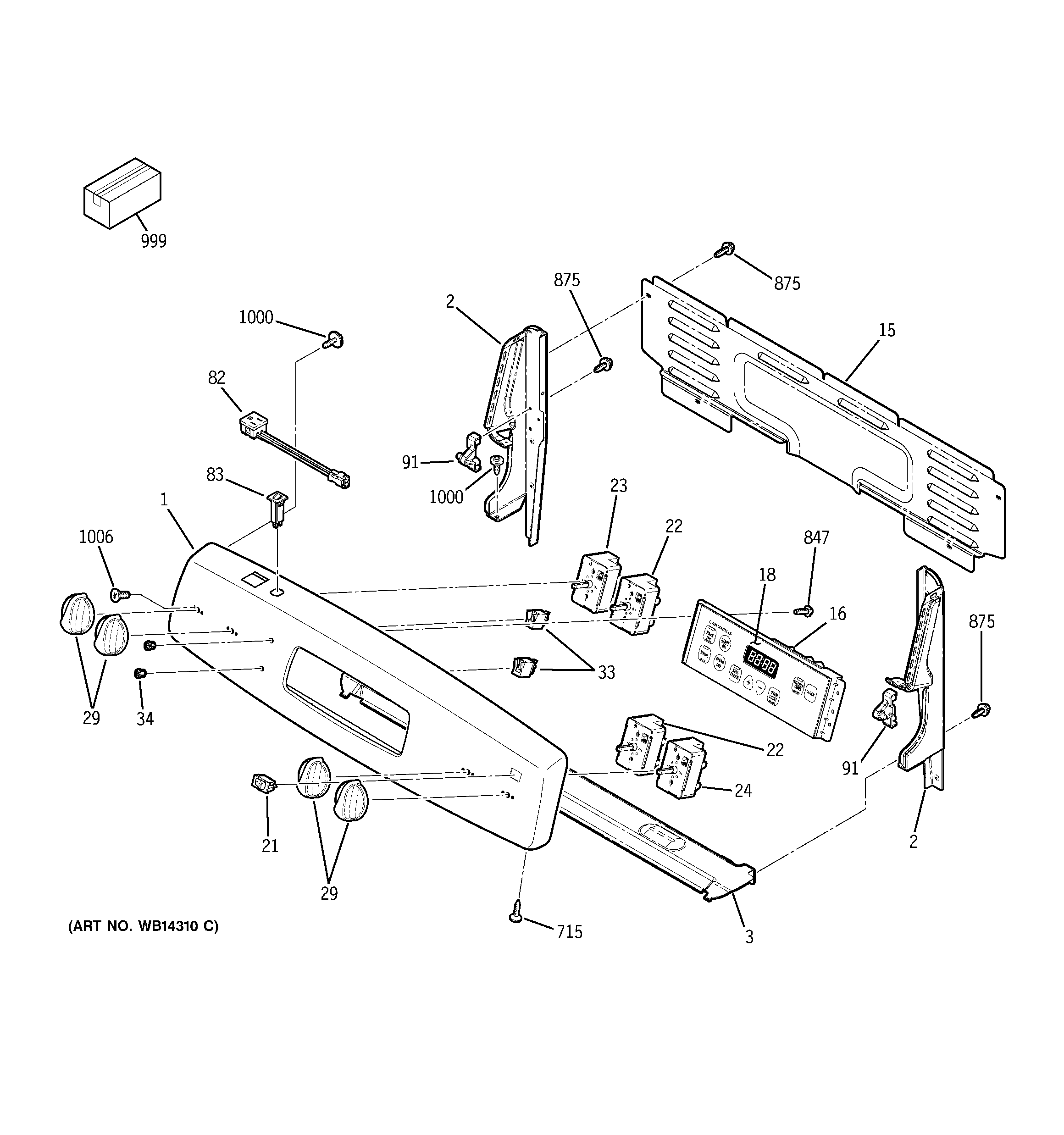

JCBP65DM1WW CONTROL PANEL

JCBP65DM1WW CONTROL PANEL

Written by

in

JCBP65DM1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11104
2GEN WB36T11043
2GEN WB36T11042
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11028
21WB24T10167 GE Oven Rocker Switch Element (White)
22WB24T10145 GE Oven Burner Switch
23WB24T10146 GE Oven Surface Element Control
24INFINITE CONTROL SWITCH
29WB03T10282 GE Oven Infinite Knob (White)
33GEN WB27T10628
34WB25T10041 GE Oven Lens
82GEN WB08T10034
83GEN WB08T10035
91WB10T10116 GE Range Top Hinge Pin
715WD2X433 GE Dishwasher Trim Screw
847WB1X537 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 31-10620
999GEN 29-5560
999GEN 31-14580
999GEN 31-10482
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999INSTR INSTALL OVN DOOR
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
