JCBP66DM2BB CONTROL PANEL

JCBP66DM2BB CONTROL PANEL

Written by

in

JCBP66DM2BB CONTROL PANEL

Products

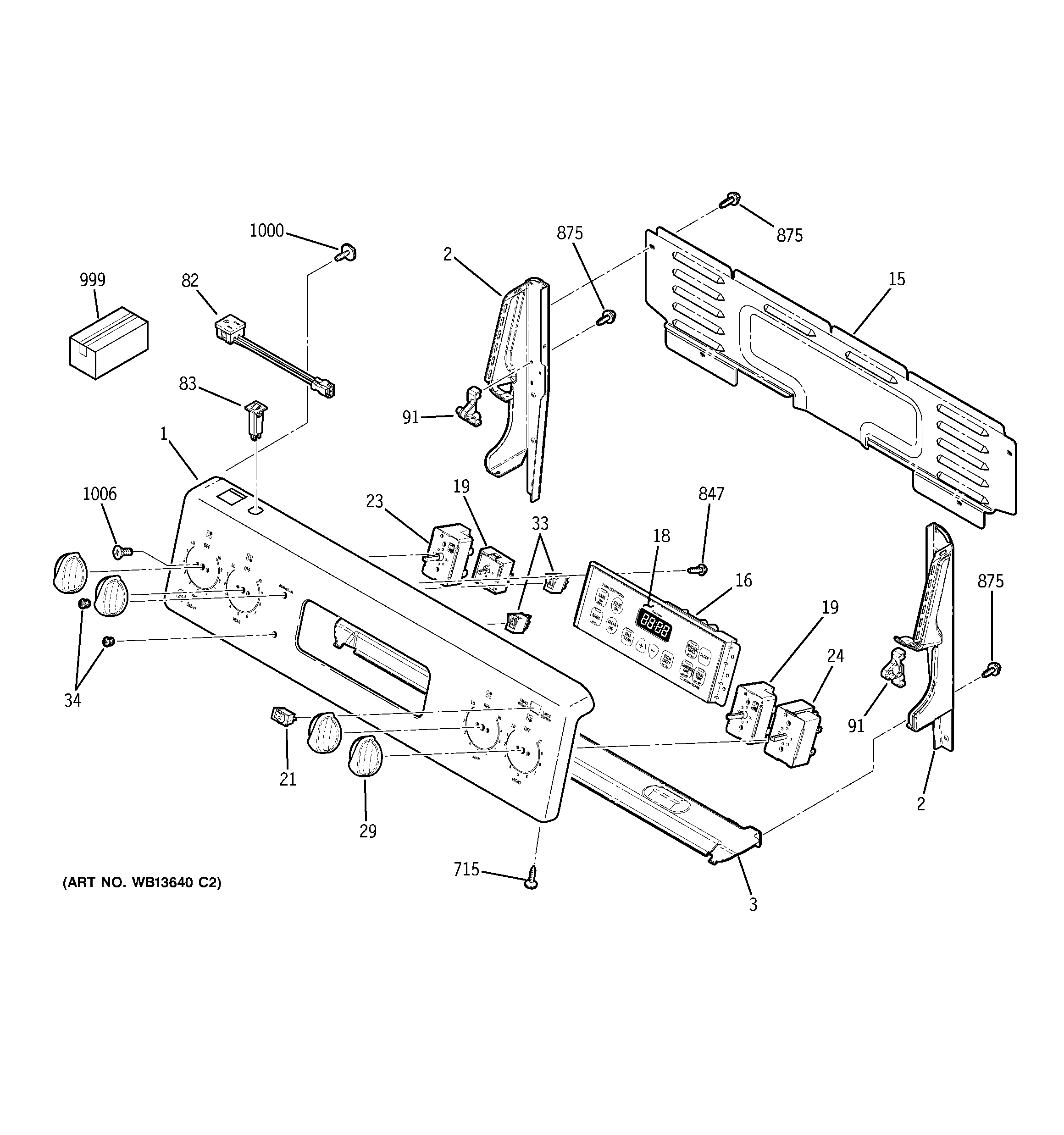

PositionProduct
1GEN WB36T11104
1GEN WB36T11107
2GEN WB36T11042
2GEN WB36T11043
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11010
18GEN WB27T11026
19WB24T10145 GE Oven Burner Switch
21WB24T10165 GE Oven Rocker Switch Element Black
21WB24T10167 GE Oven Rocker Switch Element (White)
23WB24T10146 GE Oven Surface Element Control
24INFINITE CONTROL SWITCH
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33GEN WB27T10628
34WB25T10041 GE Oven Lens
82GEN WB08T10032
82GEN WB08T10034
83GEN WB08T10035
83BREAKER RECEPTACLE
91WB10T10116 GE Range Top Hinge Pin
715WD2X433 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
847WB1X537 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 31-10679
999GEN 31-10672
999GEN 29-5624
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-14611
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
