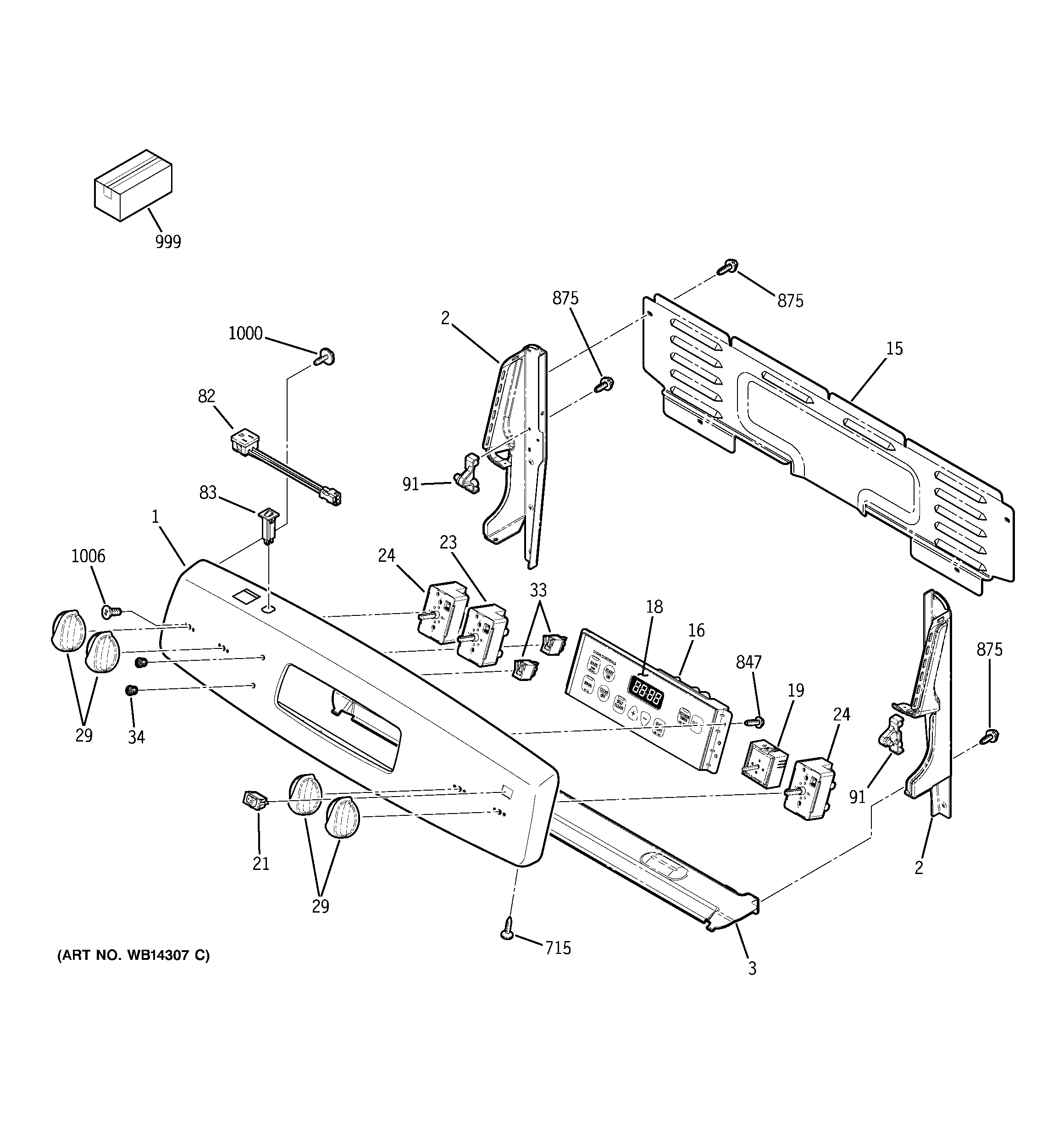

JCBP67CM2WW CONTROL PANEL

JCBP67CM2WW CONTROL PANEL

Written by

in

JCBP67CM2WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11109
1GEN WB36T11108
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11042
2GEN WB36T11043
2GEN WB36T11040
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11010
18GEN WB27T11026
19WB24T10011 GE Oven Infinite Switch
21WB24T10167 GE Oven Rocker Switch Element (White)
21WB24T10165 GE Oven Rocker Switch Element Black
23WB24T10145 GE Oven Burner Switch
24INFINITE CONTROL SWITCH
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33GEN WB27T10628
34WB25T10041 GE Oven Lens
82GEN WB08T10032
82GEN WB08T10034
83BREAKER RECEPTACLE
83GEN WB08T10035
91WB10T10116 GE Range Top Hinge Pin
715WD2X433 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
847WB1X537 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 29-5560
999GEN 31-14619
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-10679
999GEN 31-10672
999GEN 29-5624
999INSTR INSTALL OVN DOOR
999GEN 31-10620
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
