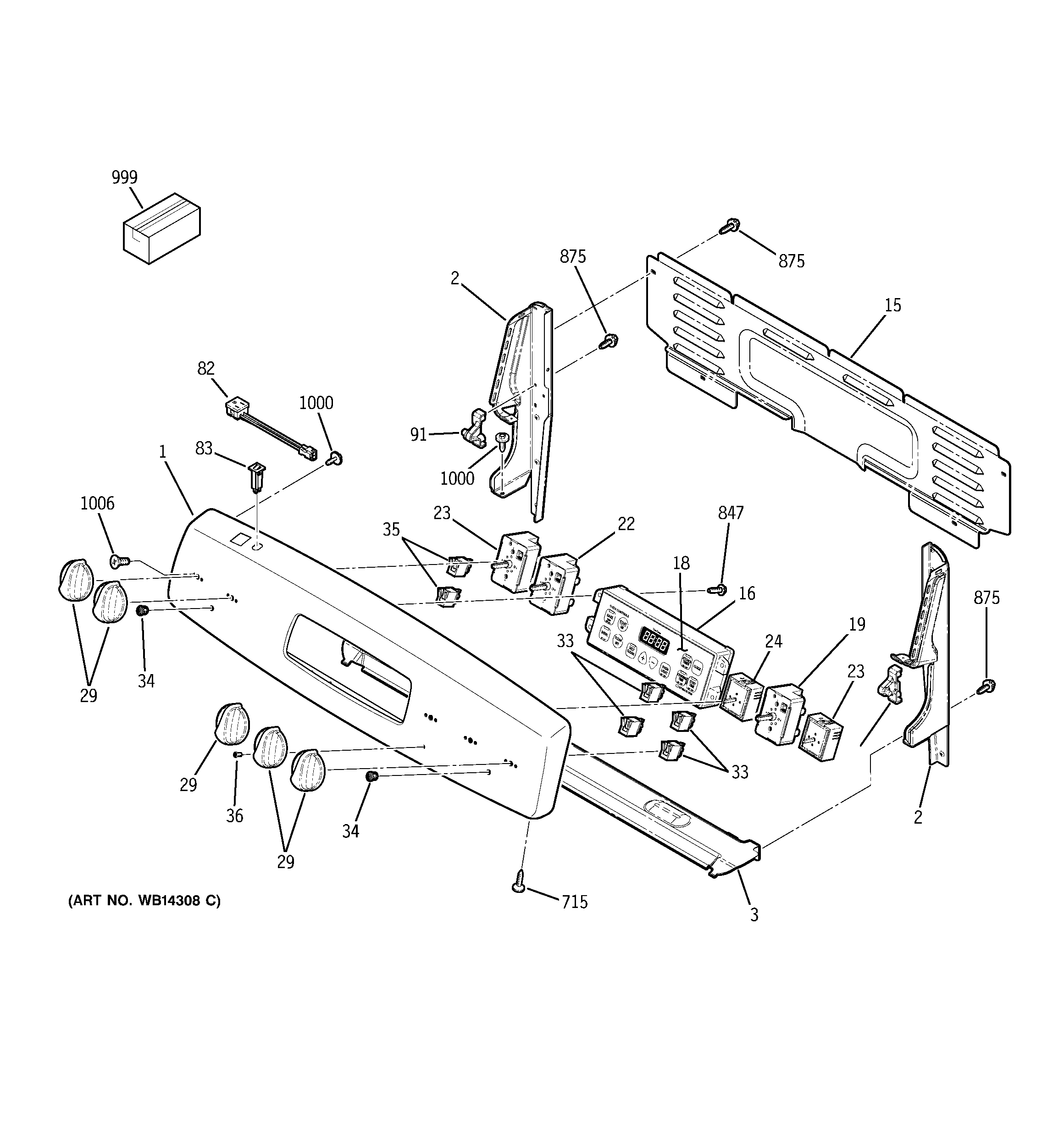

JCBP71CM2WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11117
1GEN WB36T11118
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11043
2GEN WB36T11042
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11010
18GEN WB27T11026
19WB24T10011 GE Oven Infinite Switch
19WB24T10153 GE Oven Infinite Switch Control
22WB24T10145 GE Oven Burner Switch
24INFINITE CONTROL SWITCH
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33GEN WB27T10628
34WB25T10041 GE Oven Lens
35WB25T10040 GE Oven Light Indicator
36LENS
82GEN WB08T10032
82GEN WB08T10034
83BREAKER RECEPTACLE
83GEN WB08T10035
91WB10T10116 GE Range Top Hinge Pin
715WD2X433 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
847WB1X537 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 29-5560
999GEN 31-14606
999INSTR INSTALL OVN DOOR
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
