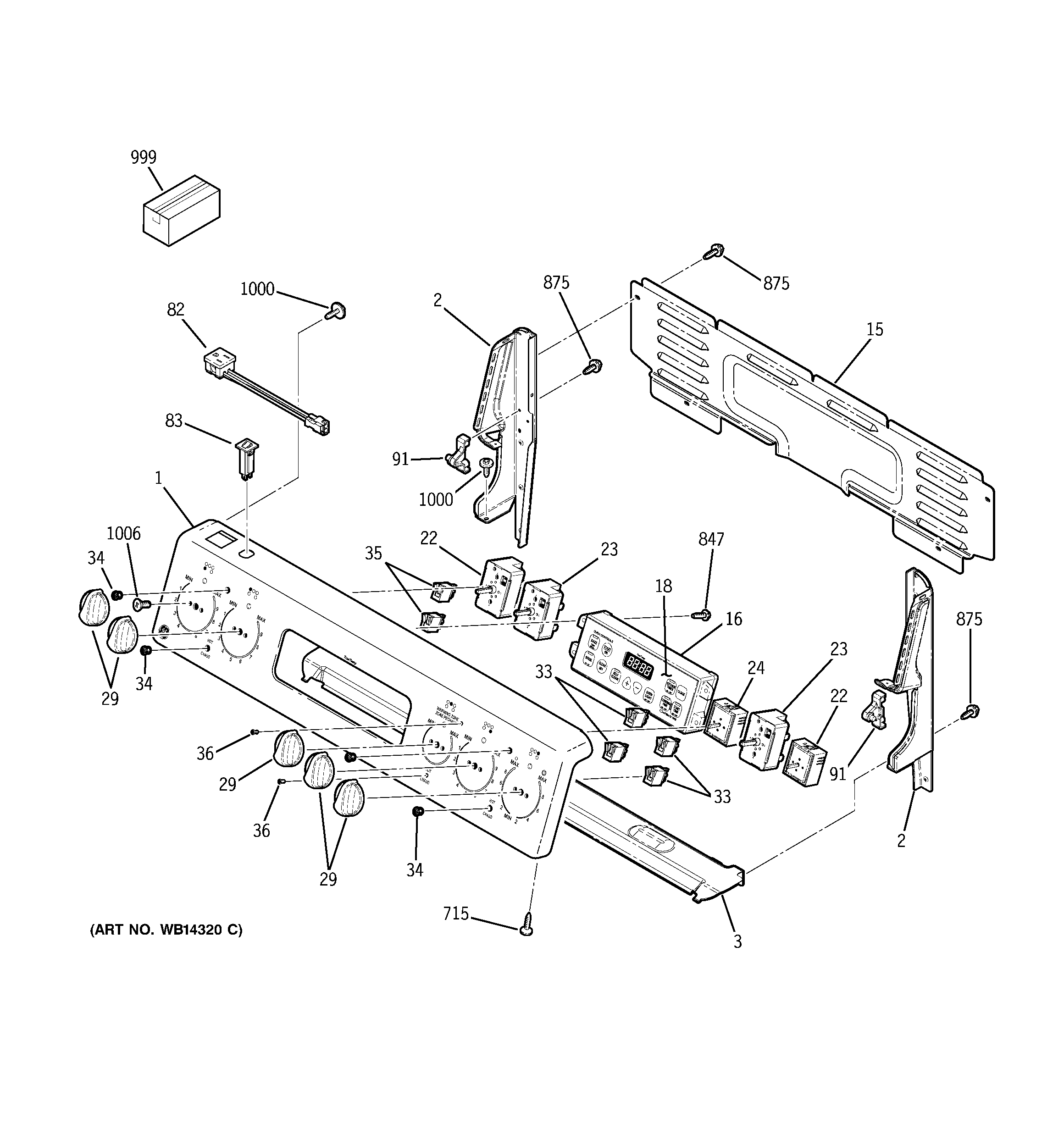

JCBP80DM1CC CONTROL PANEL

JCBP80DM1CC CONTROL PANEL

Written by

in

JCBP80DM1CC CONTROL PANEL

Products

PositionProduct
1GEN WB36T11128
2GEN WB36T11051
2GEN WB36T11050
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11034
22WB24T10153 GE Oven Infinite Switch Control
23WB24T10145 GE Oven Burner Switch
24INFINITE CONTROL SWITCH
29WB03T10285 GE Oven Infinite Control Knob
33GEN WB27T10628
34WB25T10041 GE Oven Lens
35WB25T10040 GE Oven Light Indicator
36LENS
82GEN WB08T10036
83GEN WB08T10037
91WB10T10116 GE Range Top Hinge Pin
715WD2X434 GE Dishwasher Trim Screw
847WB1X537 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 31-14576
999GEN 31-10482
999GEN 31-10620
999INSTR INSTALL OVN DOOR
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 29-5560
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
