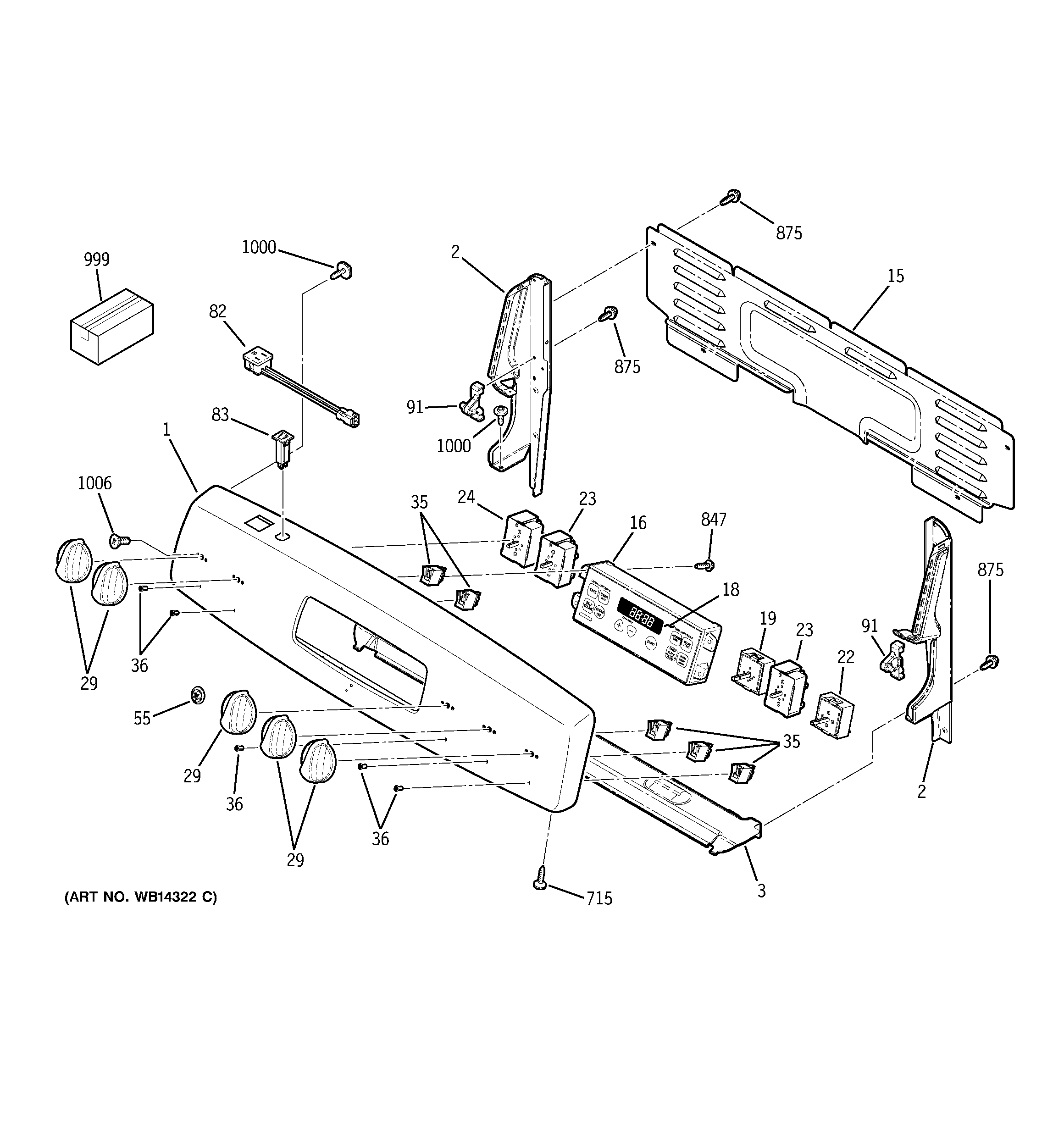

JCBP83HM2WW CONTROL PANEL

JCBP83HM2WW CONTROL PANEL

Written by

in

JCBP83HM2WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11133
1GEN WB36T11136
2GEN WB36T11043
2GEN WB36T11042
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11026
18GEN WB27T11010
19INFINITE CONTROL SWITCH
19WB24T10153 GE Oven Infinite Switch Control
22WB24T10162 GE Oven Infinite Control Switch
23WB24T10145 GE Oven Burner Switch
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
29GEN WB03T10283
29GEN WB03T10286
35WB25T10040 GE Oven Light Indicator
36LENS
55WB02T10359 GE Oven Badge
82GEN WB08T10034
82GEN WB08T10032
83GEN WB08T10035
83BREAKER RECEPTACLE
91WB10T10116 GE Range Top Hinge Pin
715WD2X433 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
847WB1X537 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 31-10620
999GEN 31-14609
999GEN 29-5560
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-10482
999INSTR INSTALL OVN DOOR
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
