JCBP83SM1SS CONTROL PANEL

JCBP83SM1SS CONTROL PANEL

Written by

in

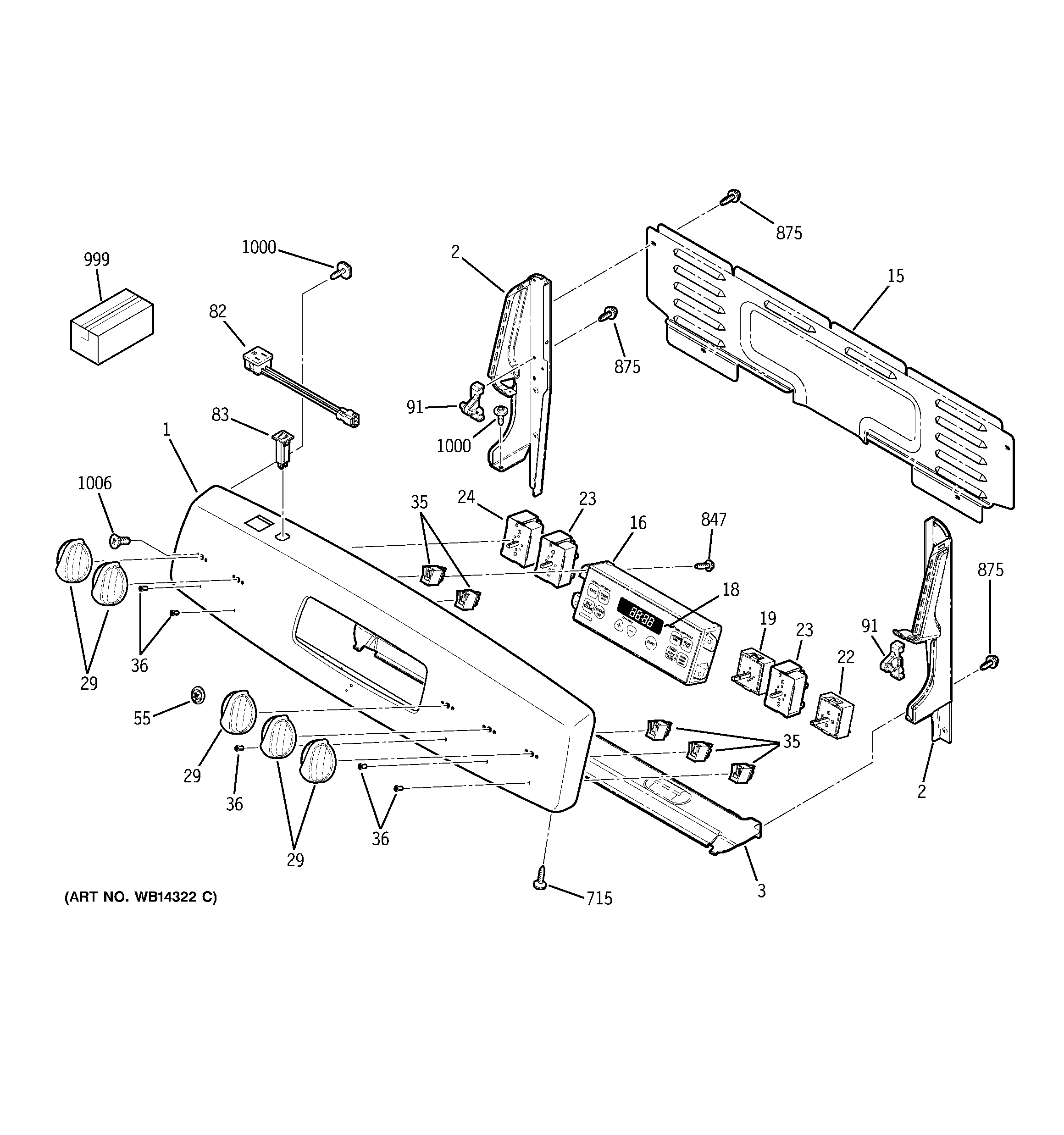

JCBP83SM1SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11134
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11011
19INFINITE CONTROL SWITCH
22WB24T10162 GE Oven Infinite Control Switch
23WB24T10145 GE Oven Burner Switch
24WB24T10153 GE Oven Infinite Switch Control
29WB03T10284 GE Range Infinite Burner Knob Cooktop Element
35WB25T10040 GE Oven Light Indicator
36LENS
55WB02T10359 GE Oven Badge
82GEN WB08T10032
83BREAKER RECEPTACLE
91WB10T10116 GE Range Top Hinge Pin
715WD2X432 GE Dishwasher Screw
847WB1X537 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 31-14579
999GEN 31-10482
999GEN 49-80453
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-10620
999INSTR INSTALL OVN DOOR
999GEN 29-5560
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
