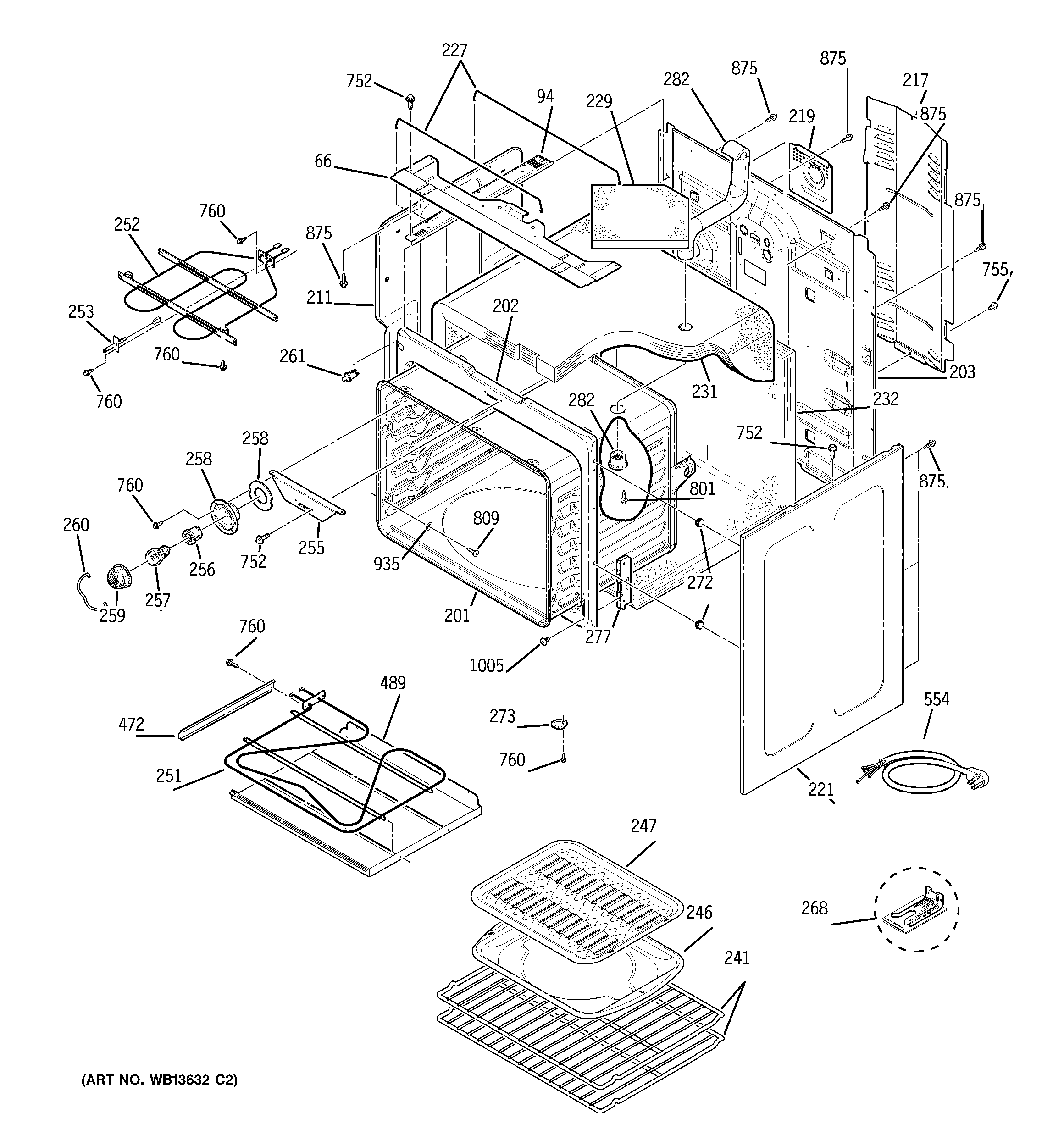

JCBP84WK1WW BODY PARTS

JCBP84WK1WW BODY PARTS

Written by

in

JCBP84WK1WW BODY PARTS

Products

PositionProduct
66ENCLOSURE RANGETOP
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
201GEN WB63T10099
202GEN WB63T10096
203GEN WB63T10047
211GEN WB02T10275
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28881 GE Oven Side Panel Black
221WB56X28884 GE Oven White Side Panel
227GEN WB02T10196
227GEN WB02T10252
229WB35T10017 GE Oven Vent Tube Insulation
229GEN WB35T10087
231WB35T10211 GE Oven Insulation
232GEN WB35T10023
241GEN WB48T10033
241GEN WB48T10032
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44X45499 GE Oven Bake Element
252WB44T10012 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
255GEN WB07T10109
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10027 GE Oven Gasket
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10147 GE Oven SPDT Light Switch
268GEN WB02T10137
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277WB10T10068 GE Oven Hinge Receiver
282GEN WB38T10022
282WB38X33648 GE Vent Tube
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
554WB08T10029 GE Range Cord 4' 3-Prong
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
935WB1K5174 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
