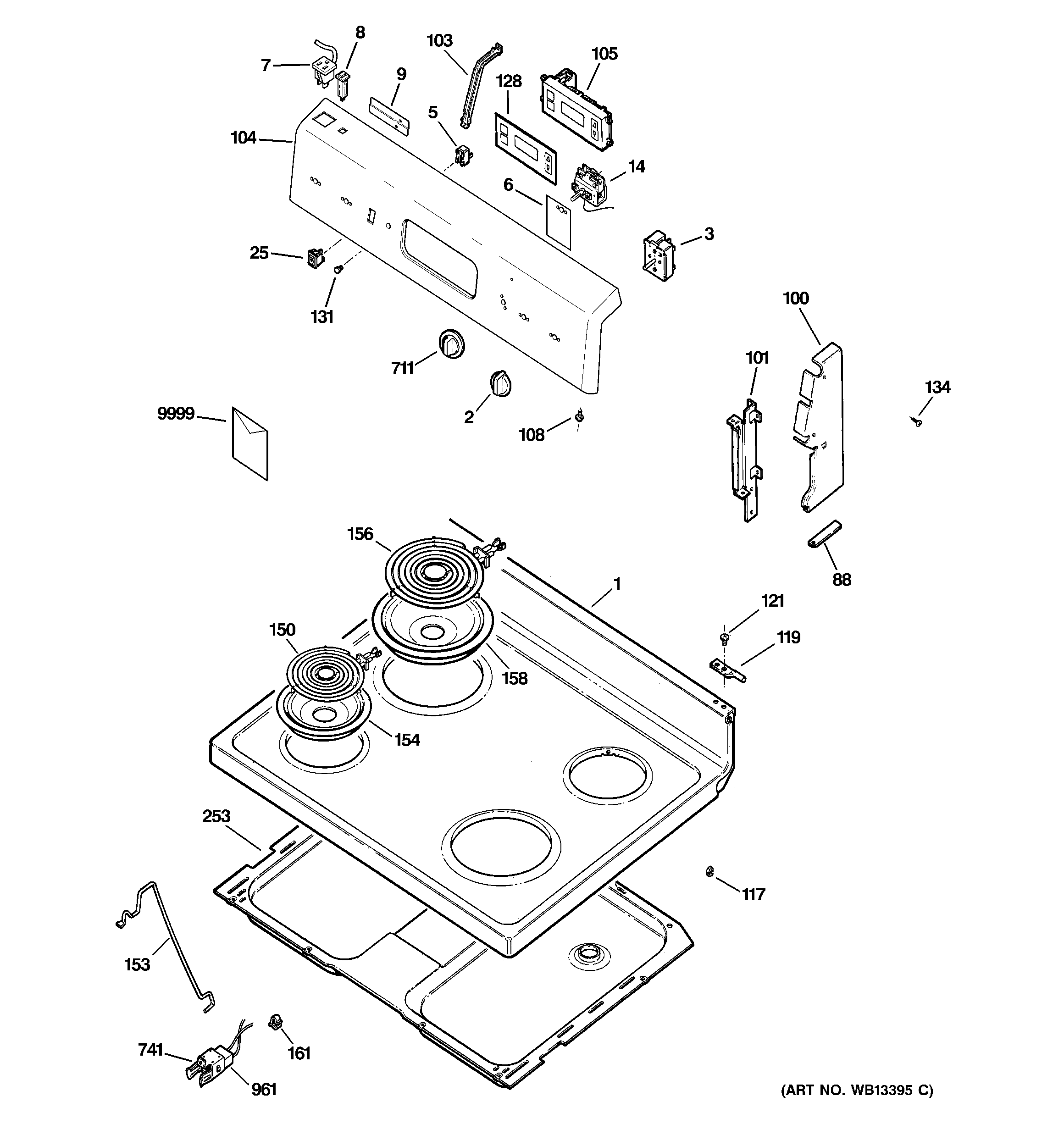

JCBS28WJ1WW CONTROL PANEL & COOKTOP

JCBS28WJ1WW CONTROL PANEL & COOKTOP

Written by

in

JCBS28WJ1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10080 GE Range White Top
2WB03T10207 GE Surface Unit Knob
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6GEN WB37K10011
7GEN WB37K10006
8GEN WB37K10010
9GEN WB37K10008
14CLIP THERMOMSTAT
14WB20K10004 GE Stove Range Oven Thermostat
25WB24K5022 GE Oven Rocker Switch
88GEN WB02K10098
88GEN WB02K0062
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10076
104GEN WB36K10495
105WB27T10469 GE Oven Timer Control Board
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB11K10025
131WB25T10041 GE Oven Lens
134GEN WB01X5874
150WB30T10076 GE Range Stove Cooktop 6" SURFACE ELEMENT
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB03T10167 GE Range Stove Cooktop 8" Surface Burner Element 5 Turn
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
253GEN WB64K10002
711GEN WB03K10190
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88016
9999GEN 31-21165
