JCD2289AEQ 03 – FOUNTAIN

JCD2289AEQ 03 – FOUNTAIN

Written by

in

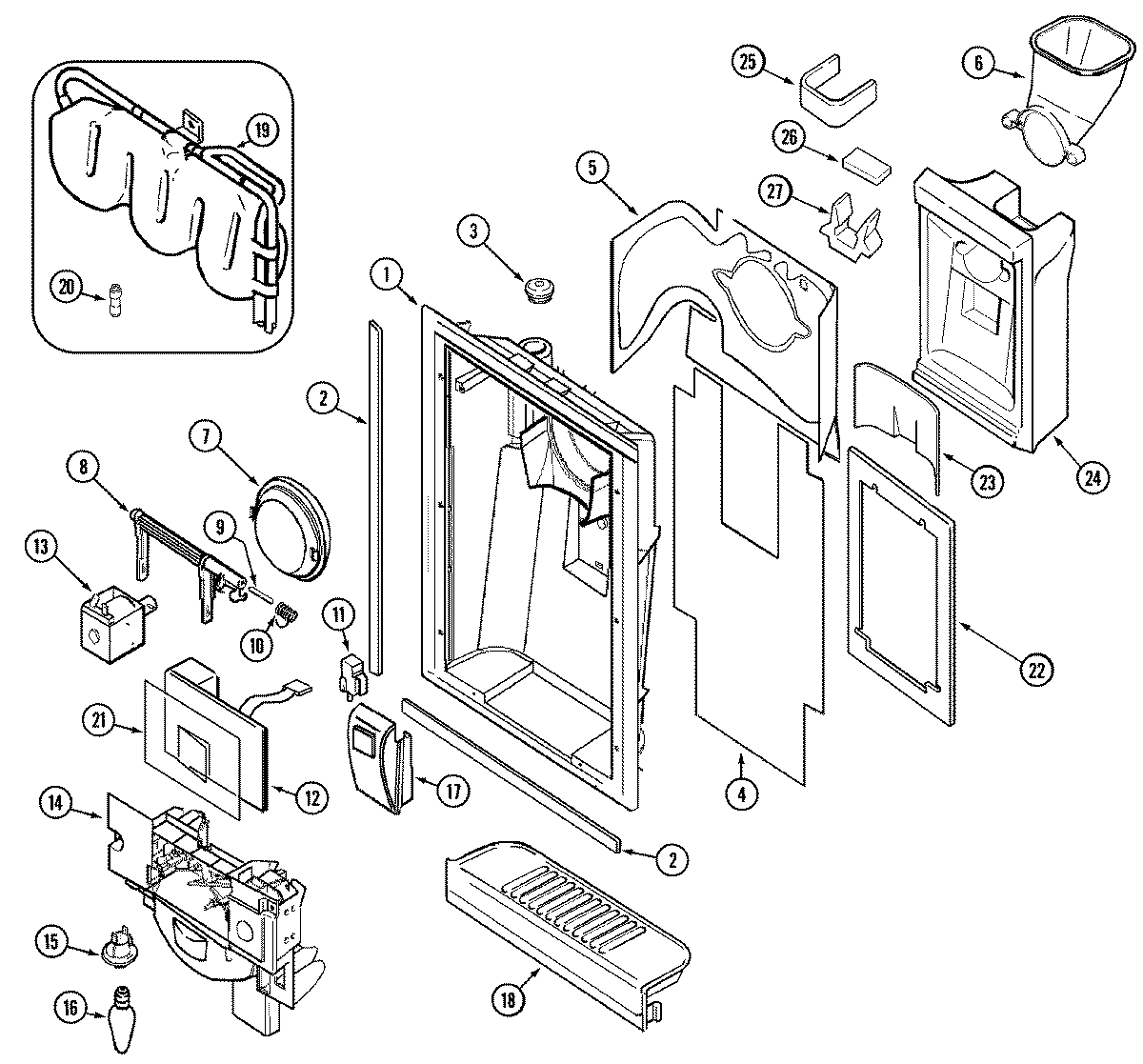

JCD2289AEQ 03 – FOUNTAIN

Products

PositionProduct
1MAY 61004772
1MAY 61003307
2MAY 61003286
3MAY 61003300
4MAY 61003304
5MAY 61003125
6MAY 61004677
7WP61005883 Whirlpool Ice Dispenser Door Flap
9WP9705445 Whirlpool Refrigerator Roll Pin
1061004388 Whirlpool Ice Maker Door Spring
11MAY 61003124
11MAY 415041-35
1312001991 Whirlpool Ice Door Kit
13WP488234 Whirlpool Air Conditioner Screw
14MAY 61004773
14415013-35 Whirlpool Refrigerator Screw
15MAY 70119-1
16MAY 63179-1
17MAY 61004441
18MAY 61004774
19WP61003689 Whirlpool Water Tank
19WP67006908 Whirlpool Refrigerator Screw
20WP2300868 Whirlpool Refrigerator Fitting
22WP61003339 Whirlpool Refrigerator Insulation
23MAY 61003340
24MAY 61004724
25MAY 61003342
26MAY 61003343
27MAY 61003308
28MAY 61003458
28MAY 61004775
