JCD2289AEQ 09 – ICE MAKER

JCD2289AEQ 09 – ICE MAKER

Written by

in

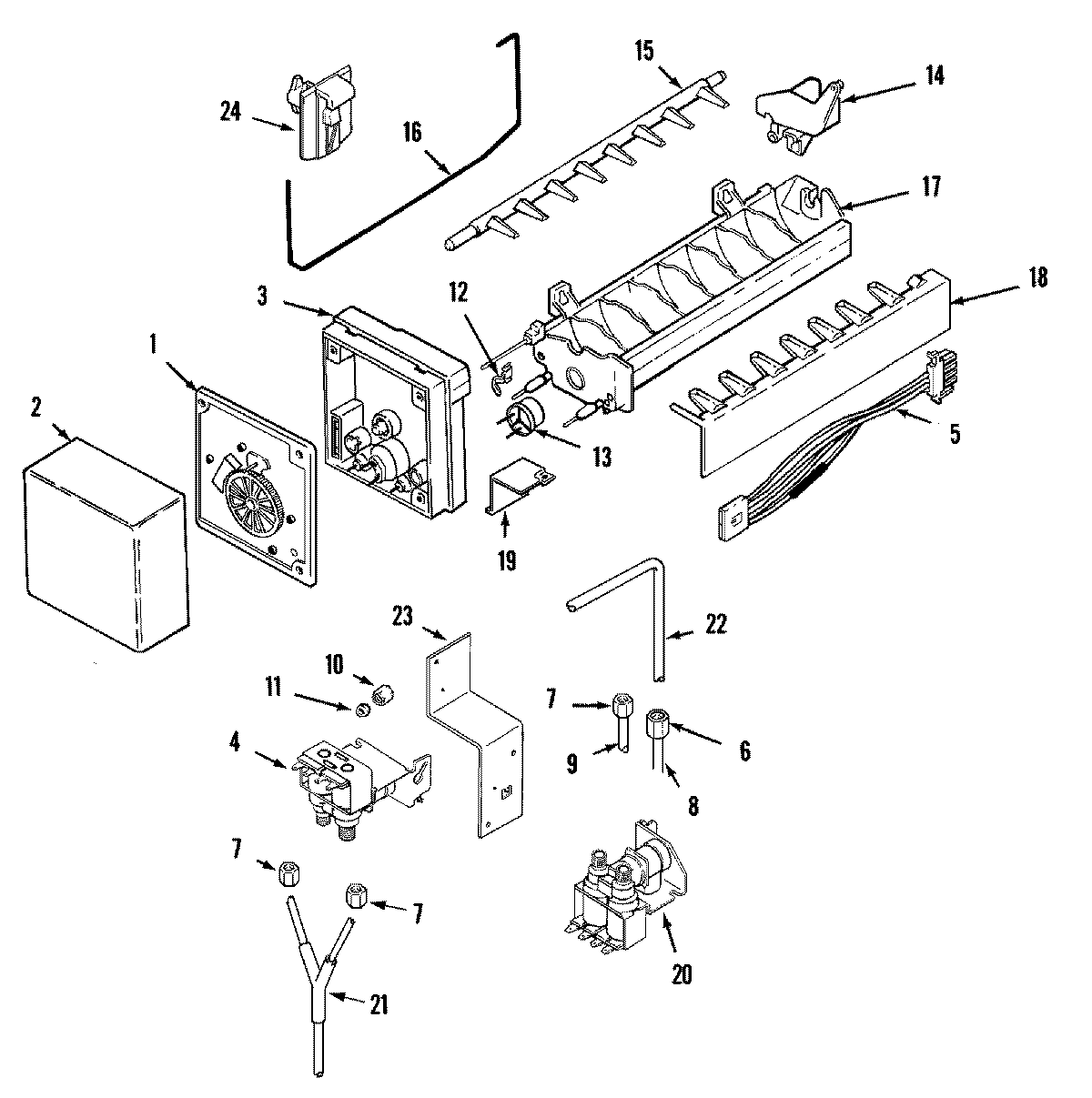

JCD2289AEQ 09 – ICE MAKER

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
1MAY 95109-1
2MAY 61004594
3SCREW
3WP2195914 Whirlpool Refrigerator Ice Maker Housing
412001892 Whirlpool Refrigerator Water Valve Kit with Filter
5MAY 61003575
6MAY 69583-2
7WP627018 Whirlpool Refrigerator Nut
8SEE NOTE GROUND WIRE, GREEN
9MAY 67579-1
10WP245183 Whirlpool Nut
11WP487627 Whirlpool Refrigerator Sleeve
12WP2315522 Whirlpool Refrigerator Clip
13MAY 95093-1
13WP627985 Whirlpool Icemaker Cycling Thermostat
14WP628356 Whirlpool Refrigerator Fill Cup
15WP627843 Whirlpool Refrigerator Ejector Arm
16MAY 61004136
17D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18WP2182124 Whirlpool Refrigerator Stripper Arm
19MAY 95108-1
19BRACKET, MODULE & HEATER
20WP489399 Whirlpool Refrigerator Screw
2061005626 Whirlpool Water Inlet Valve
21MAY 61003800
21WPM0114003 Whirlpool Microwave Speed Clip Clamp
21MAY 61004391
22MAY 61004392
23MAY 61003732
23MAY 61002819
24WP61005028 Whirlpool Refrigerator Support
