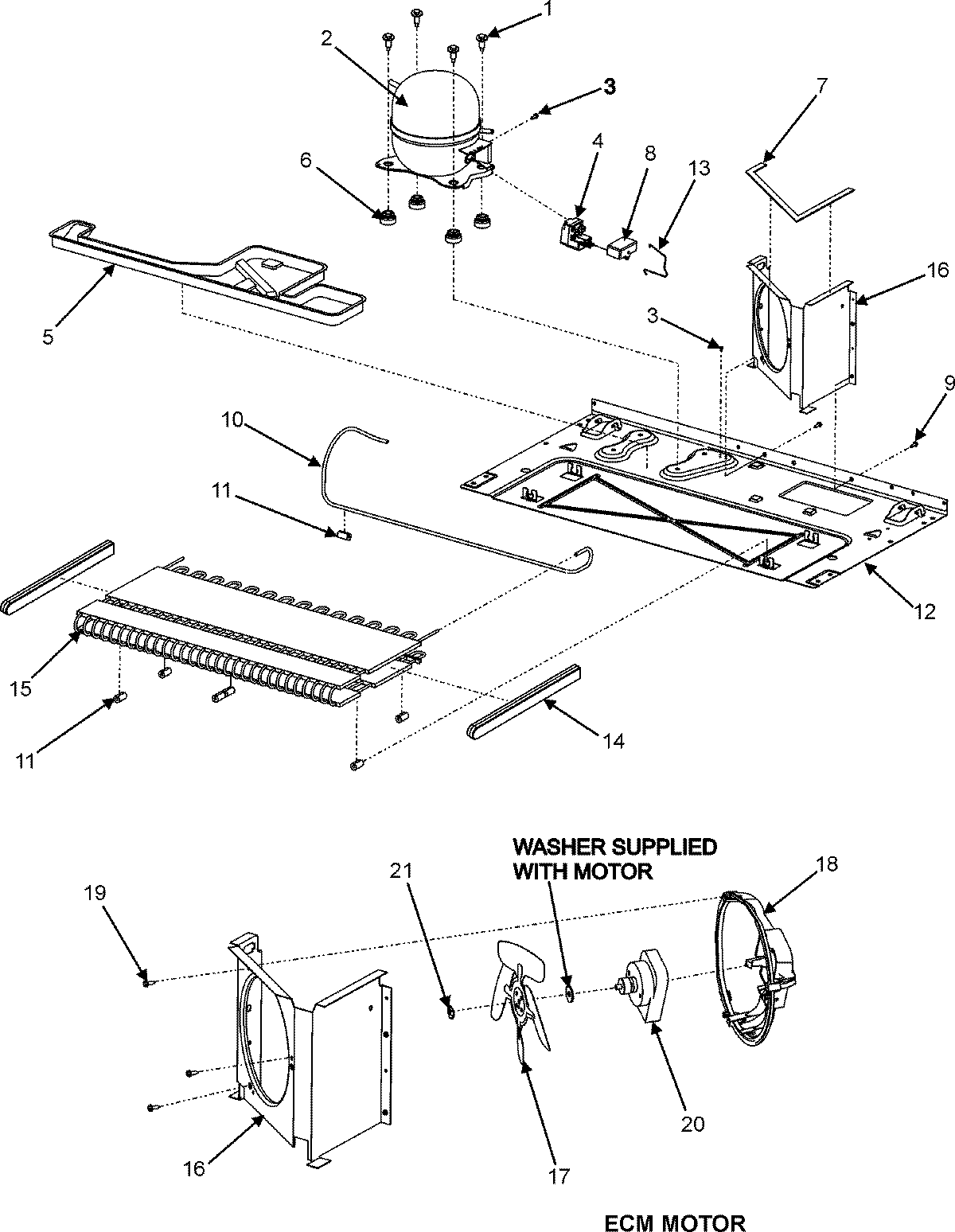

JCD2290HEB 03 – COMPRESSOR (SERIES 10)

Products

Position	Product
1	MAY M0221523
2	MAY 67003084
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
10	MAY 67002236
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001512
13	MAY 12576801
14	MAY 67002235
15	MAY 67003195
16	SHROUD, CONDENSER FAN
17	WP12587601 Whirlpool Refrigerator Condenser Blade
18	MAY 67003644
19	MAY M0238616
20	MAY 12628701
21	WP486692 Whirlpool Refrigerator Nut
22	MAY 67004097
