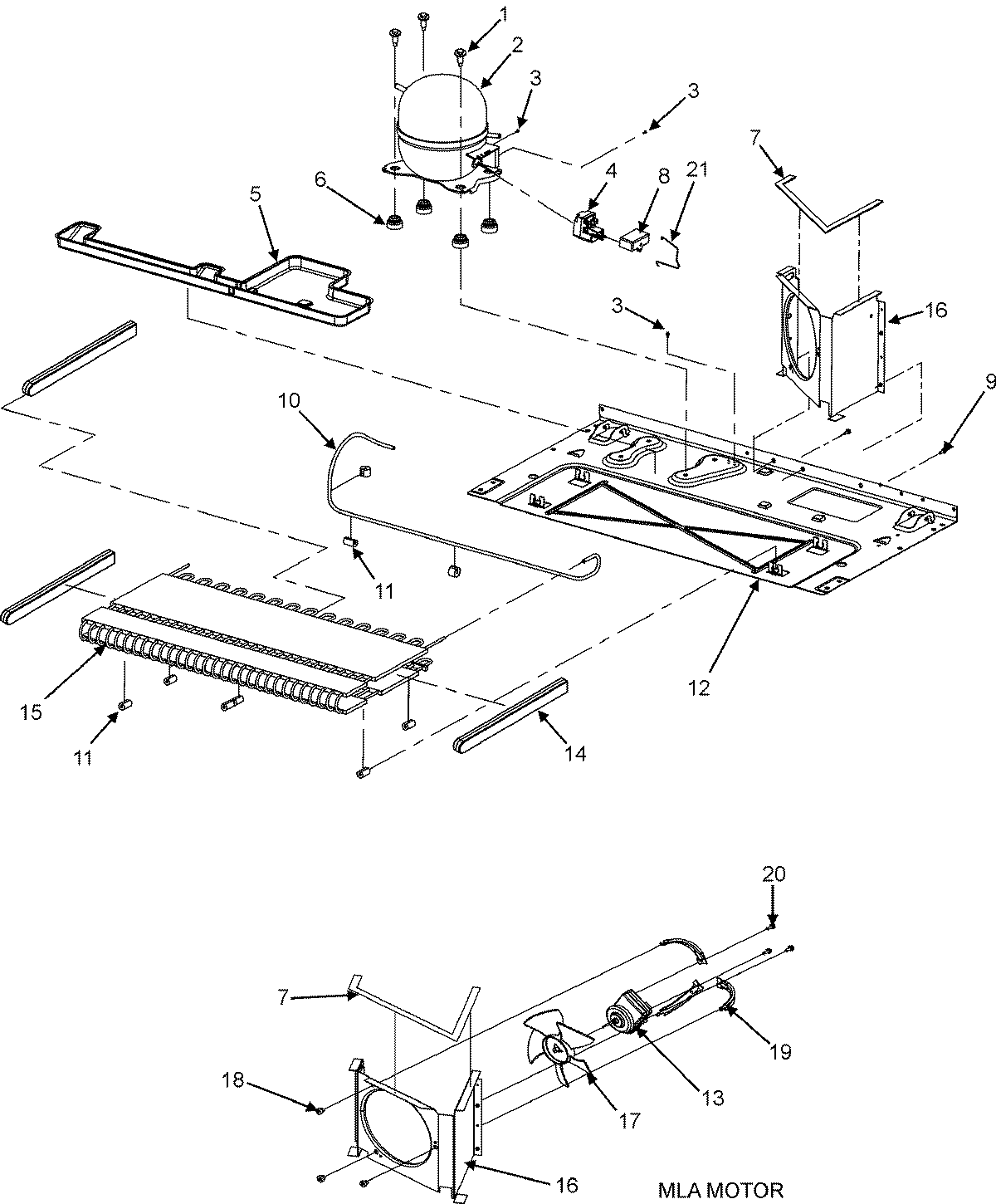

JCD2290HEB 04 – COMPRESSOR (SERIES 11)

Products

Position	Product
1	MAY M0221523
2	MAY 67003084
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
9	MAY M0238616
10	MAY 67002236
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001512
13	MAY 67004432
14	MAY 67002235
15	MAY 67003195
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	GROMMET, BRACKET
19	MAY 67004953
20	WP67004954 Whirlpool Refrigerator Screw
21	MAY 12576801
22	67004955 Whirlpool Refrigerator MC Harness
