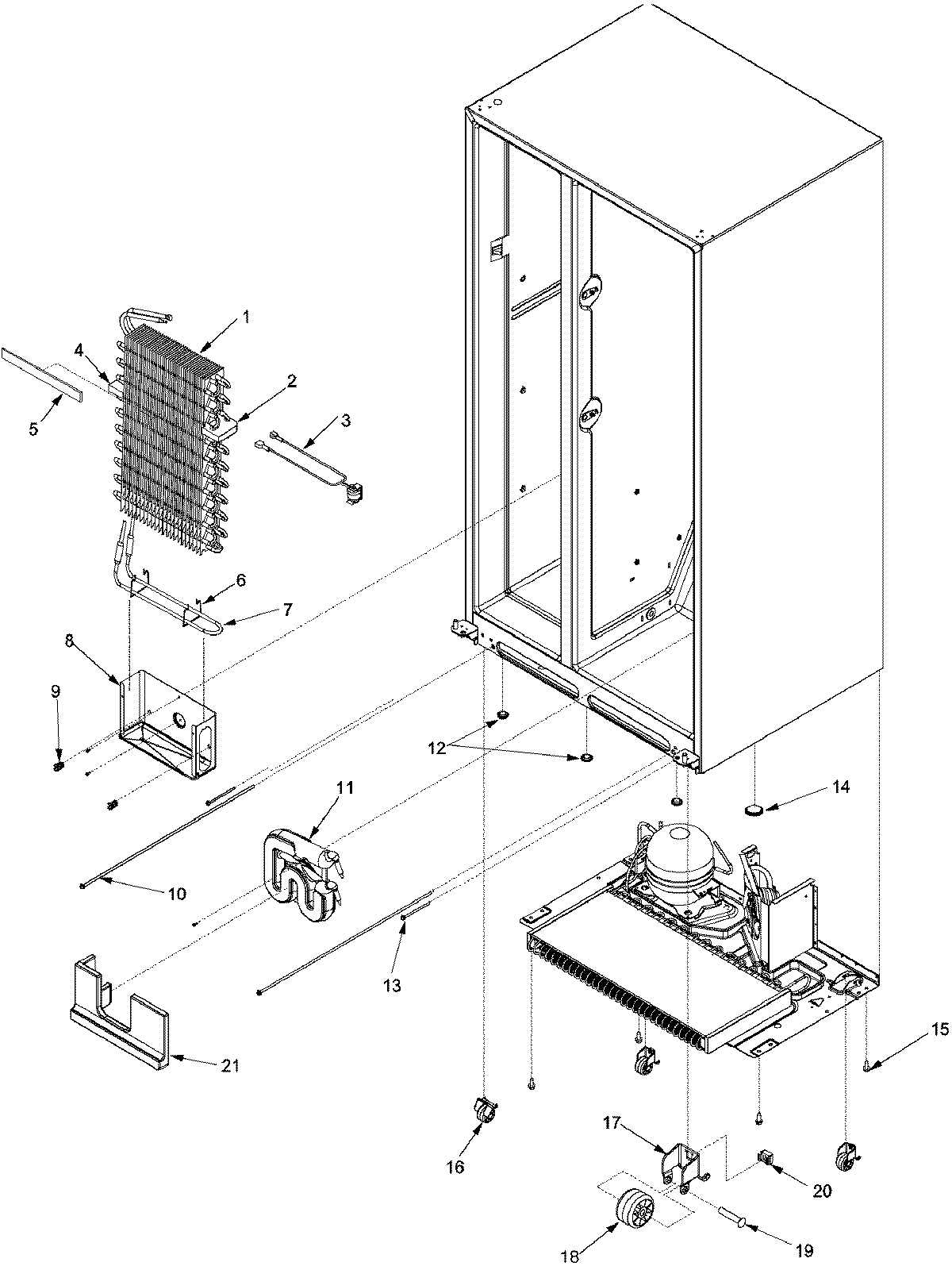

JCD2290HEB 08 – EVAPORATOR ASSY AND ROLLERS

Products

Position	Product
1	MAY 12676401
2	MAY 12590102
3	12002355 Whirlpool Refrigerator Thermistor Kit
3	WP67004757 Whirlpool Refrigerator Thermostat
4	MAY 12590101
5	MAY 67002226
6	W11673433 Whirlpool Clip
7	WP67004188 Whirlpool Heater Defrost Assembly
8	MAY M0224416
8	MAY 12558101WD
9	MAY 10623003
10	MAY 10093315
11	MAY R0131625
11	MAY M0211018
12	MAY A3080001
13	71003131 Whirlpool Oven Screw
14	A3076901 Whirlpool Refrigerator Plug
15	MAY 67001510
16	ROLLER BRACKET ASSY
17	12456801V Whirlpool Refrigerator Bracket
18	MAY 10450602
19	MAY M1205302
20	MAY M0286708
21	MAY 67004309
22	MAY 67004321
22	MAY 67006839
