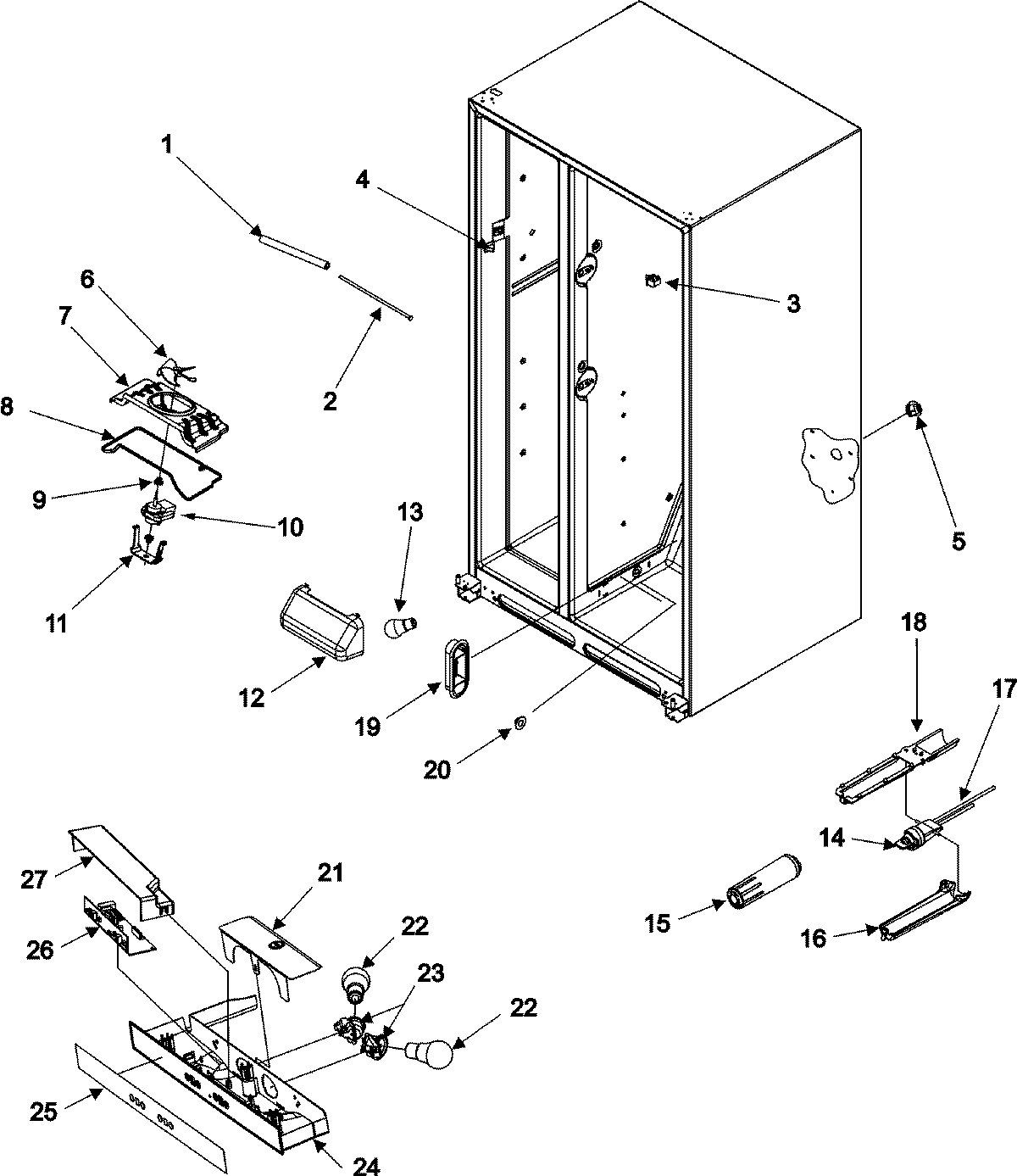

JCD2290HEQ 07 – EVAP FAN ASSY AND CONTROL

Products

Position	Product
1	MAY A0329806
2	MAY M0322202
3	W11291138 Whirlpool Refrigerator Door Switch
4	SWITCH, LIGHT
6	MAY 12217201
7	Shroud, Evap Fan
8	MAY 67001508
9	WP67002780 Whirlpool Refrigerator Grommet
10	12002744 Whirlpool Refrigerator Evaporator Fan Motor Kit
11	WP67005633 Whirlpool Refrigerator Bracket
12	MAY 67001507
14	MAY 67003146
15	FILTER, WATER SINGLE
16	WP12568001 Whirlpool Filter Cover
17	WP67006524 Whirlpool Refrigerator Housing
17	WP67004106 Whirlpool Water Filter Housing
18	MAY 12688503
19	MAY 12634801
20	MAY 67003018
21	MAY 67004157
22	RANGE ONLY 40W 120V APPL BULB
23	Socket, Light (2)
24	MAY 67004240
25	MAY 67004497
26	MAY 12002445
27	MAY 67004454
28	MAY 67004526
