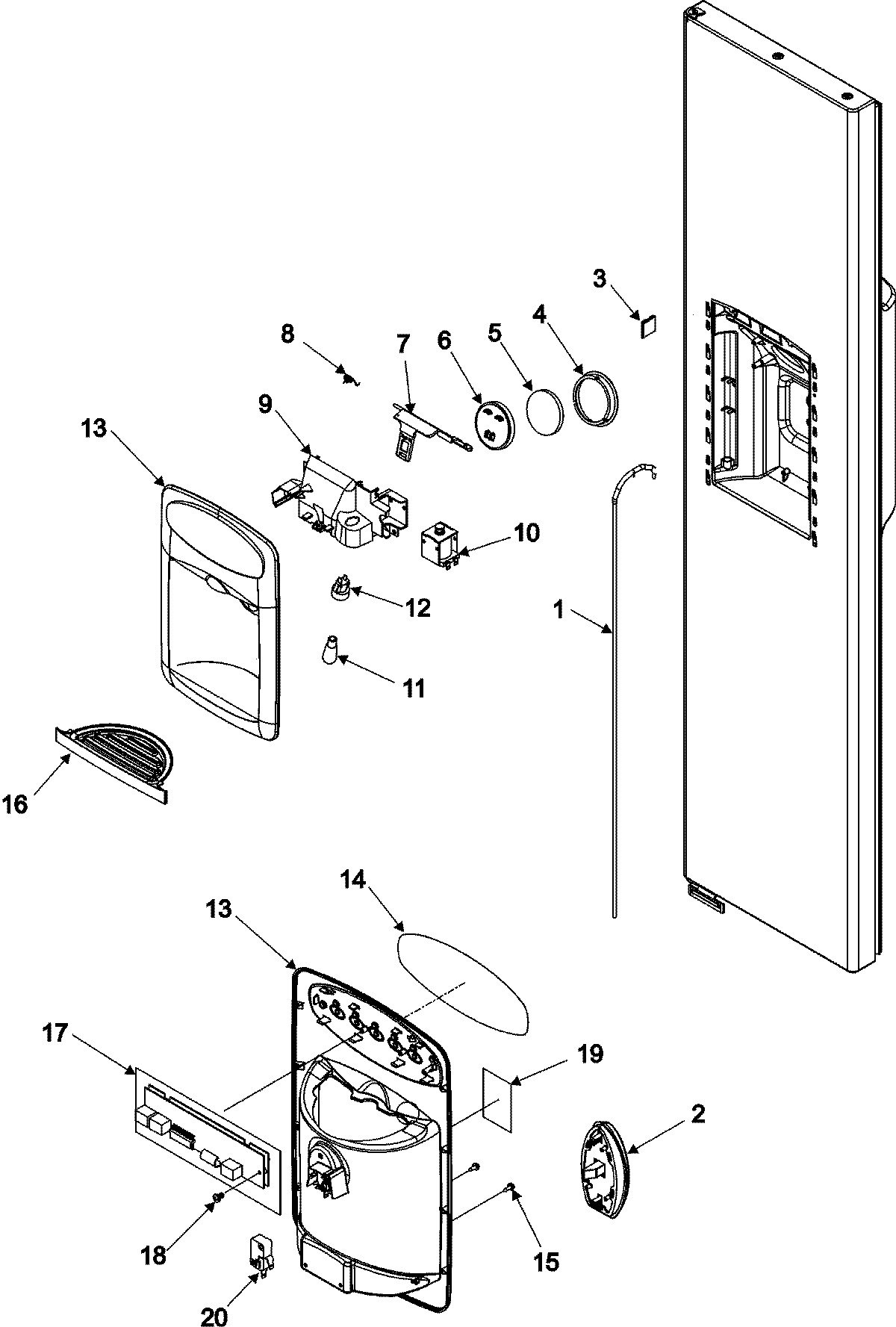

JCD2290HEQ 10 – FZ DOOR AND FACADE

Products

Position	Product
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	MAY 67004511
3	MAY M0104102
4	MAY 12665101
5	MAY 12563401
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	WP67006534 Whirlpool Refrigerator Ice Cube Chute
10	MAY 12575401
10	MAY 67006000
10	SCREW, SM
11	W10857122 Whirlpool Refrigerator Light Bulb, 7W, for Microwave/Dryer
12	MAY 12617501
13	MAY 67004518
14	MAY 67004520
15	Screw (2)
16	MAY 67004522
17	MAY 67003817
17	MAY 67006209
18	MAY M0237902
19	MAY 67003351
20	WP12575501 Whirlpool Refrigerator Micro Switch
