JCD2290HES 10 – FZ DOOR AND FACADE

JCD2290HES 10 – FZ DOOR AND FACADE

Written by

in

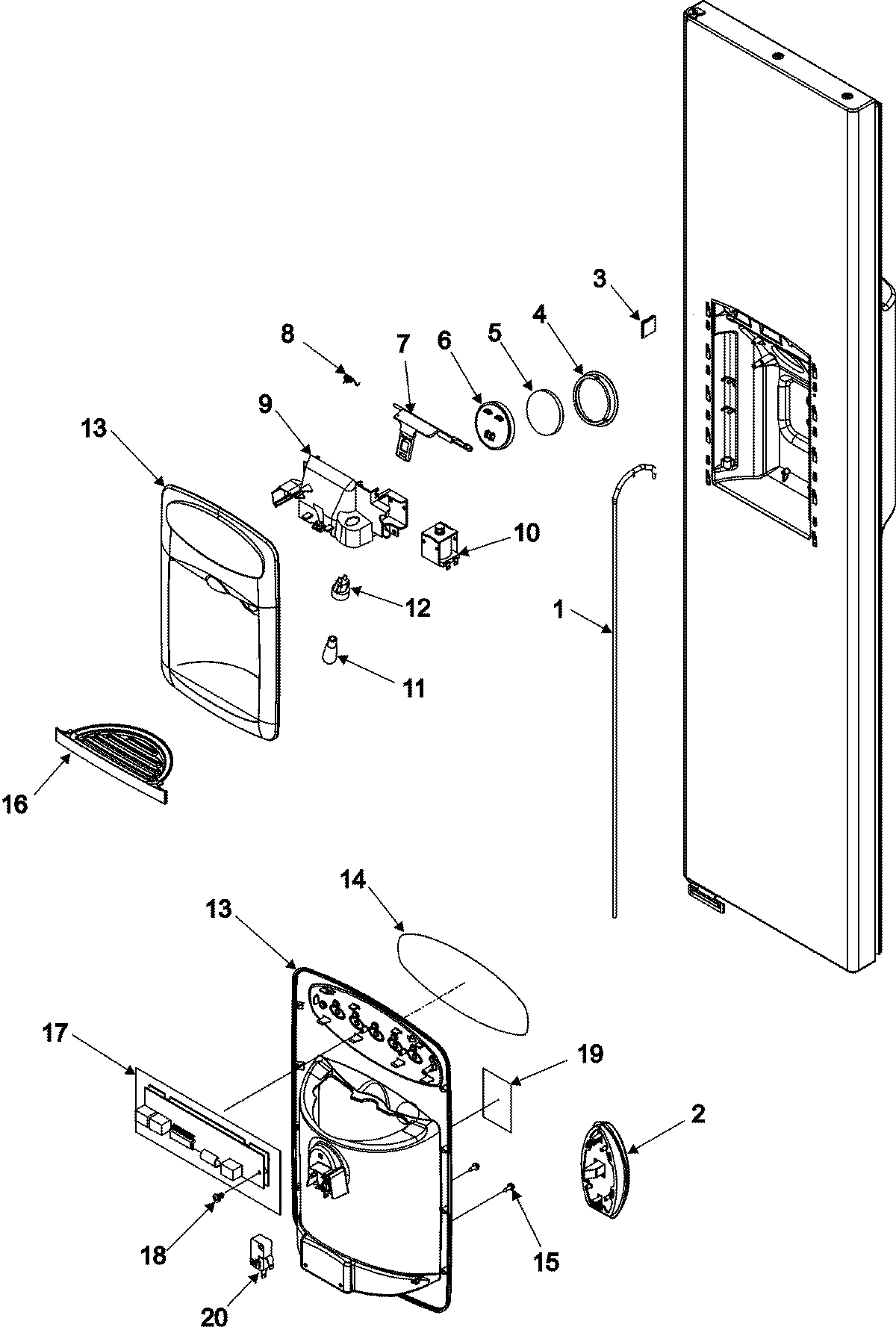

JCD2290HES 10 – FZ DOOR AND FACADE

Products

PositionProduct
167004938 Whirlpool Refrigerator Waterline Assembly
2MAY 67004511
3MAY M0104102
4MAY 12665101
5MAY 12563401
6WP12562701 Whirlpool Dispenser Door
7MAY 67004119
8WP12565502 Whirlpool Refrigerator Spring
9WP67006534 Whirlpool Refrigerator Ice Cube Chute
10MAY 12575401
10SCREW, SM
10MAY 67006000
11W10857122 Whirlpool Refrigerator Light Bulb, 7W, for Microwave/Dryer
12MAY 12617501
13MAY 67004517
14MAY 67004520
15Screw (2)
16MAY 67004521
17MAY 67003817
17WP12945106 Whirlpool Refrigerator Electronic Control Board
18MAY M0237902
19MAY 67003351
20WP12575501 Whirlpool Refrigerator Micro Switch
