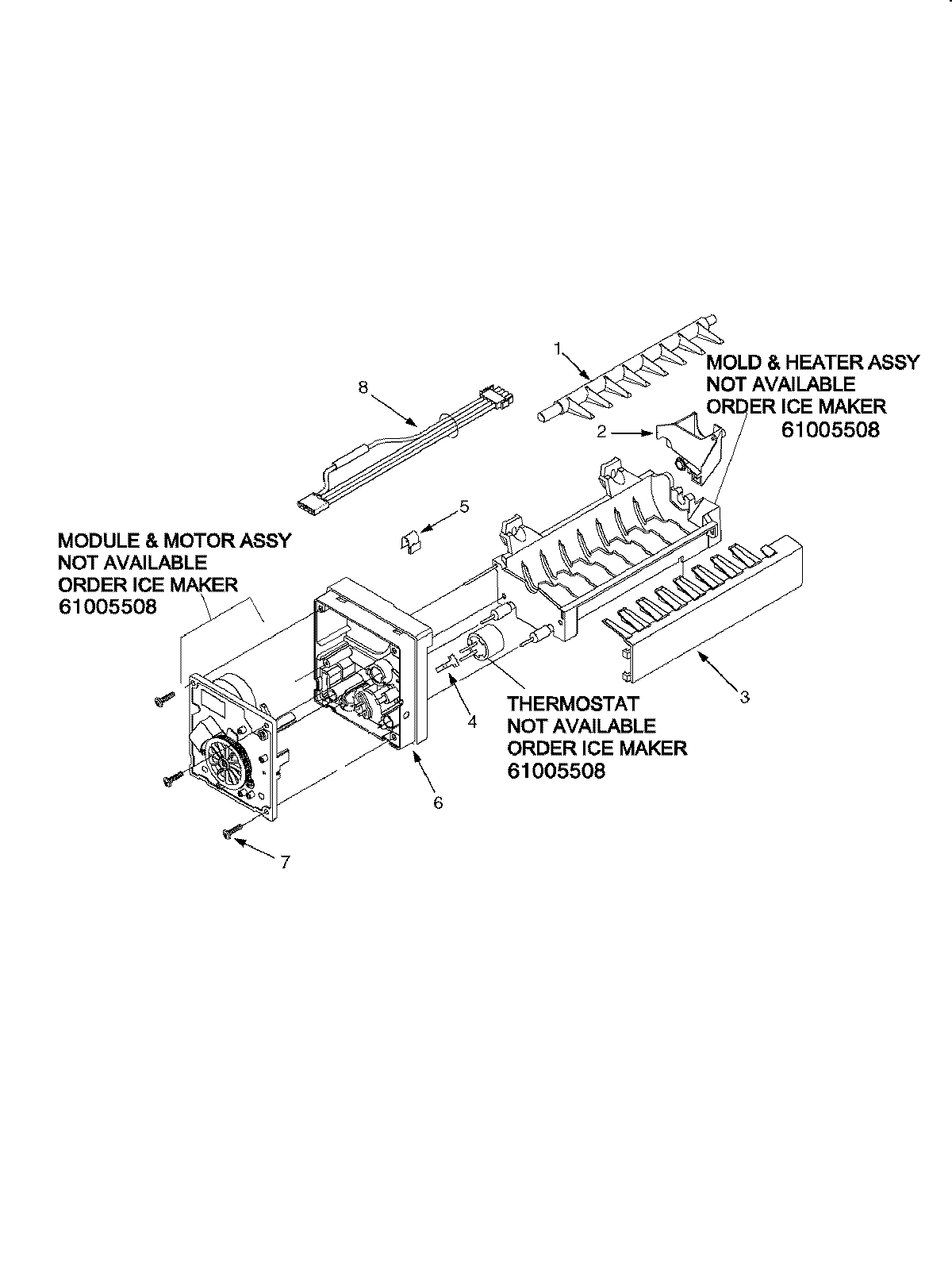

JCD2290HES 15 – ICE MAKER

Products

Position	Product
1	WP627843 Whirlpool Refrigerator Ejector Arm
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	WP2315522 Whirlpool Refrigerator Clip
5	MAY 95108-1
5	BRACKET, MODULE & HEATER
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	SCREW
8	HARNESS, ICE MAKER
9	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
10	W11033771 Whirlpool Refrigerator Coupling
