JCD2292KTB 08 – FREEZER COMPARTMENT
Written by
in

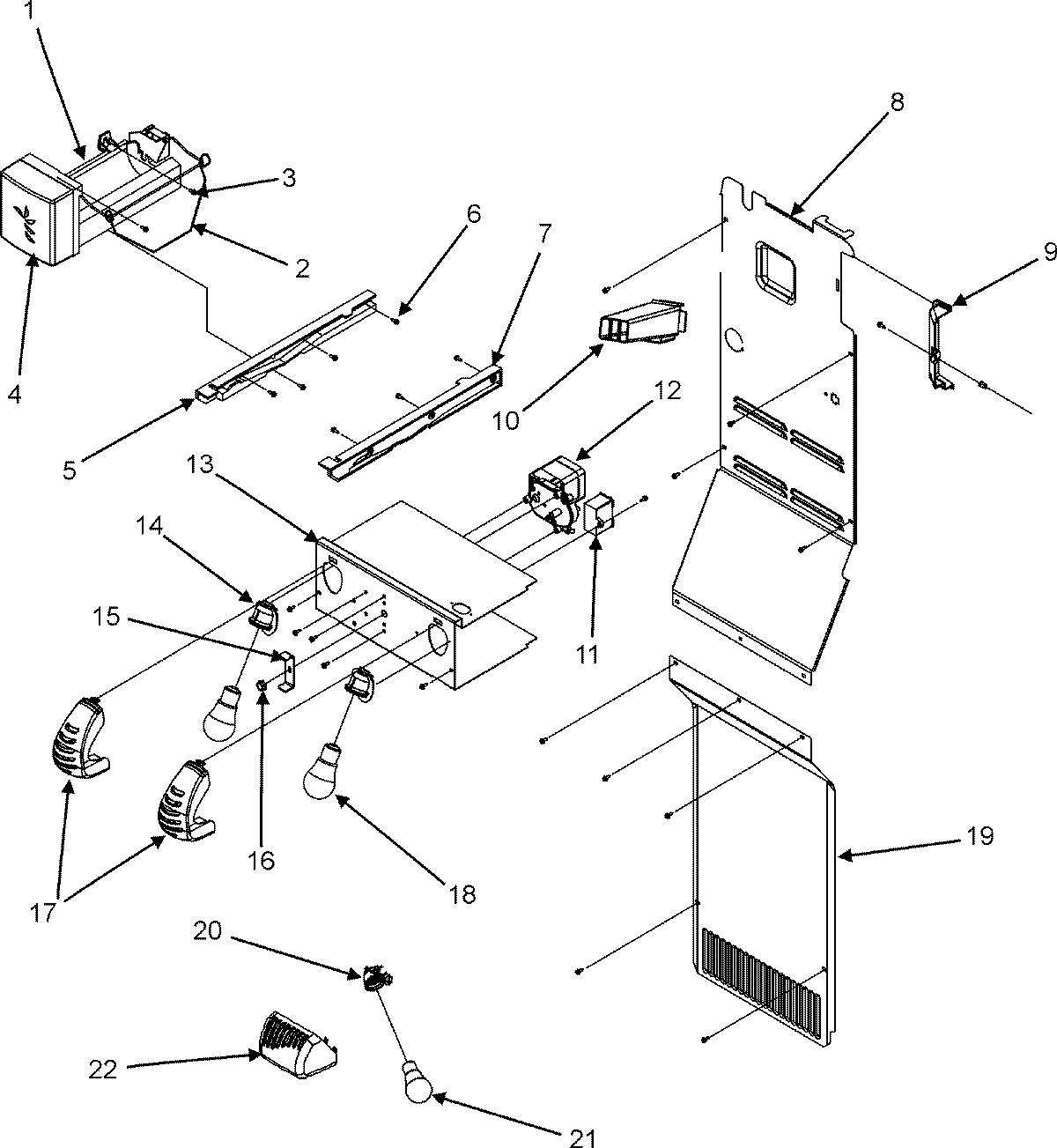

JCD2292KTB 08 – FREEZER COMPARTMENT
Products
Position
Product
1
WP2256087 Whirlpool Refrigerator Bracket
1
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2
MAY 12671401
3
MAY M0238833
4
Cover
5
67005375 Whirlpool Refrigerator Glide, Freezer (Left)
6
67006529 Whirlpool Refrigerator Screw
7
MAY 67004323
8
MAY 67005524
9
MAY 12583101
9
MAY M0580205
10
MAY 67003581
11
CAPACITOR
12
WP67003226 Whirlpool Motor Auger
12
MAY M0226528
12
MAY 67005523
13
MAY 67002887
15
MAY 10114901
16
WPM0223101 Whirlpool Refrigerator Nut
17
MAY 67004433
19
MAY 67004192
19
MAY M0238616
20
Socket, Light (2)
21
RANGE ONLY 40W 120V APPL BULB
22
MAY 67004135
←
