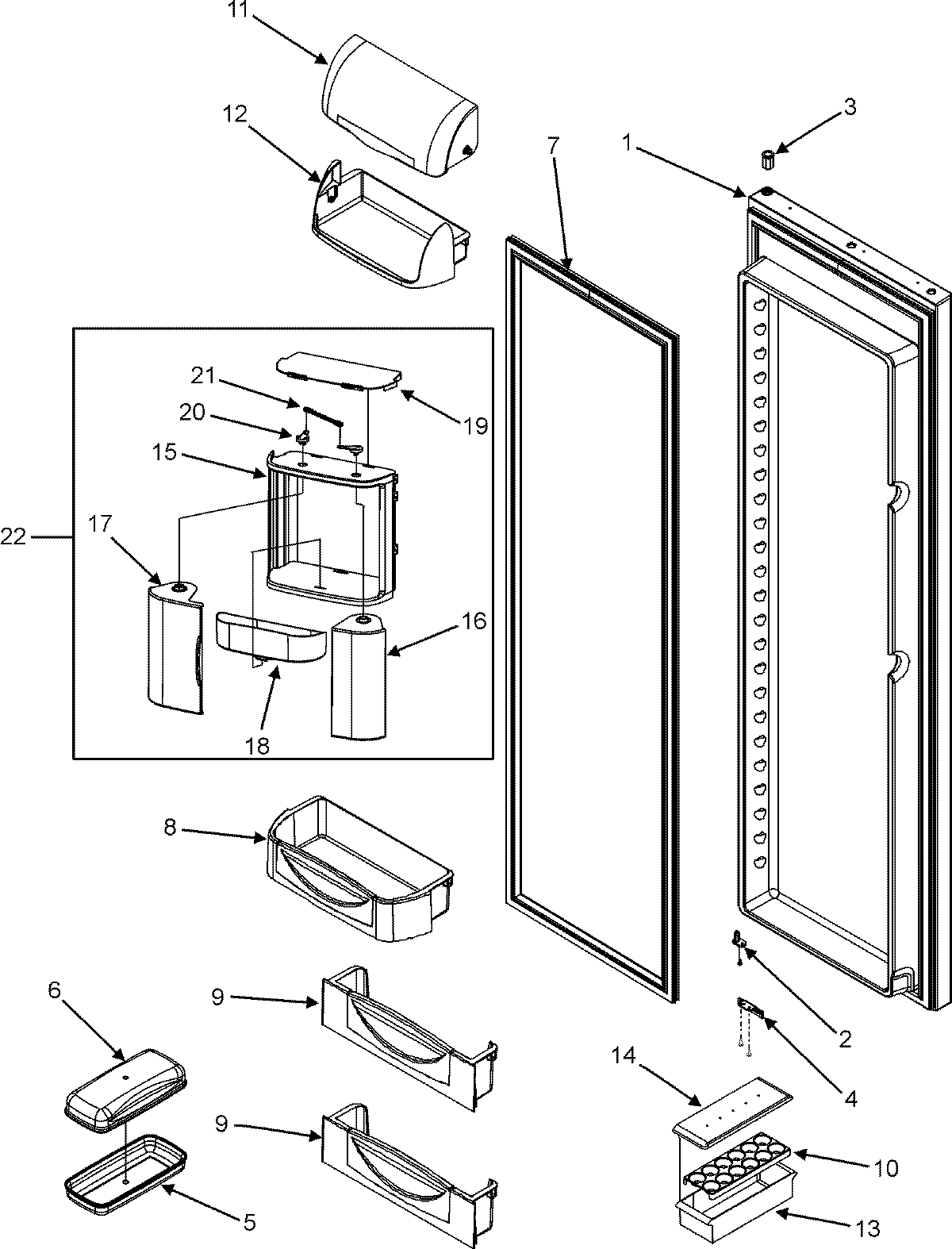

JCD2292KTB 15 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67006802
1MAY 67003812
2MAY 12113204
2MAY 67006493
2MAY M0220432
3MAY 67004976
4MAY 12636401B
4MAY M0211018
4MAY 67006518
5MAY 67004404
6MAY 67004405
7W10840101 Whirlpool Refrigerator FIP Gasket
8MAY 67004540
9MAY 67004498
10MAY 10436506
11MAY 67001325
12MAY 67002304
13MAY 10423131
14MAY 10436404
15Frame, Chiller (Large)
16Door Chiller (RT) (Large)
17MAY 67004542
18Tray, Chiller (2)
19Cover, Chiller (2)
20Linkage, Chiller (4)
21Linkage, Center Chiller (2)
22MAY 67004539
