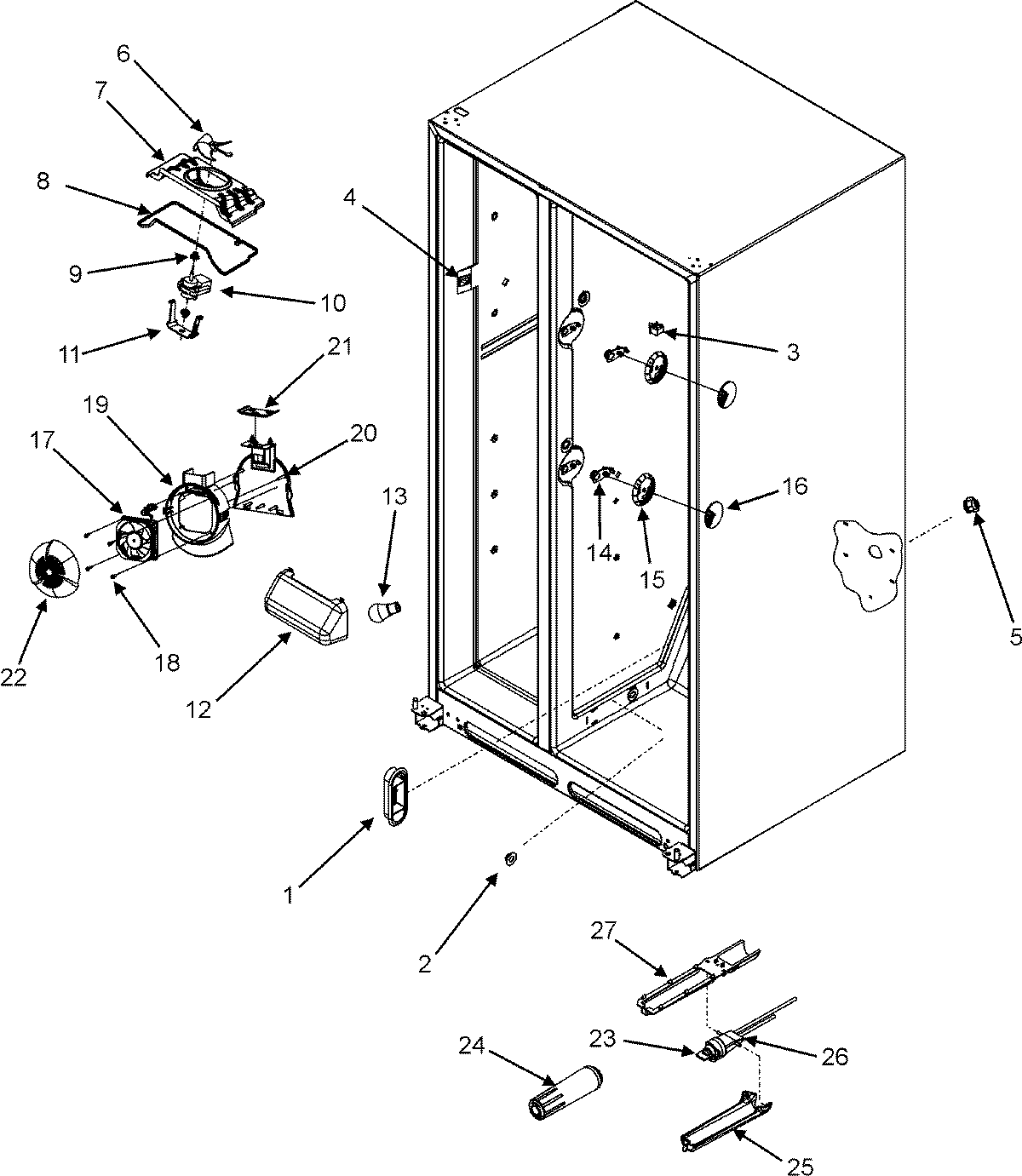

JCD2292KTW 05 – EVAP FAN/CONVECTION FAN/CRISP LT/FILTER

Products

Position	Product
1	MAY 12634801
2	MAY 67003018
3	W11291138 Whirlpool Refrigerator Door Switch
4	SWITCH, LIGHT
5	Socket, Light (2)
6	MAY 12217201
7	Shroud, Evap Fan
8	MAY 67001508
9	WP67002780 Whirlpool Refrigerator Grommet
10	WPW10128551 Whirlpool Evaporator Fan Motor
11	WP67005633 Whirlpool Refrigerator Bracket
12	MAY 67001507
13	WP67002552 Whirlpool Refrigerator Light Bulb
14	MAY 67002827
15	MAY 67002225
16	MAY 67004525
17	MAY 67005358
18	MAY M0254706
19	MAY 67005359
20	MAY 67005360
21	MAY 67005361
22	MAY 67005481
23	MAY 67003146
24	FILTER, WATER SINGLE
25	WP12568001 Whirlpool Filter Cover
26	WP67004106 Whirlpool Water Filter Housing
27	MAY 12688503
