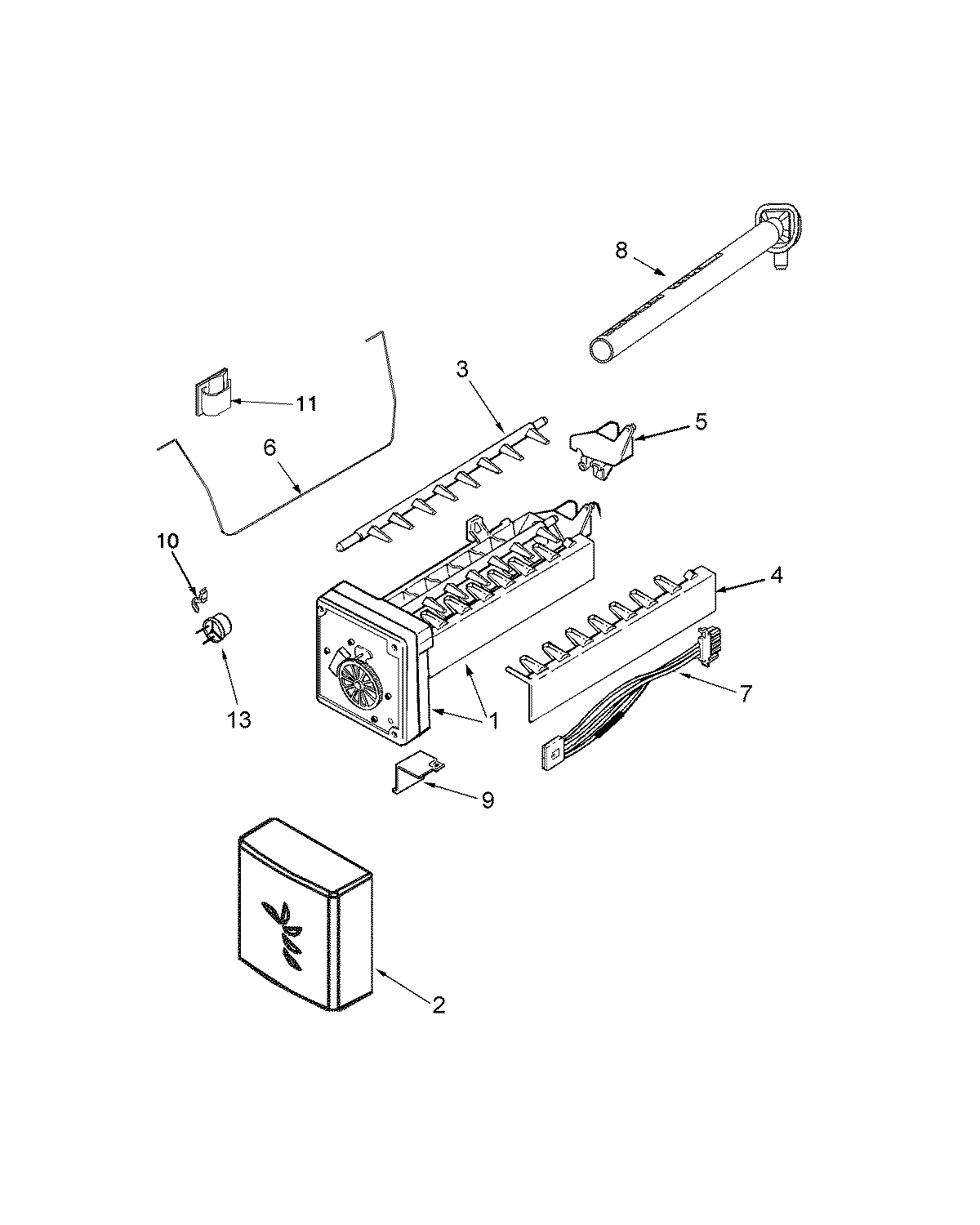

JCD2292KTW 14 – ICE MAKER

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1MAY M0238833
1WP2256087 Whirlpool Refrigerator Bracket
2Cover
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP628356 Whirlpool Refrigerator Fill Cup
6MAY 12671401Q
7HARNESS, ICE MAKER
8MAY 67003579
9BRACKET, MODULE & HEATER
9MAY 95108-1
10WP2315522 Whirlpool Refrigerator Clip
11WPM0104106 Whirlpool Refrigerator Clip
12WP627985 Whirlpool Icemaker Cycling Thermostat
12MAY 95093-1
13W11033771 Whirlpool Refrigerator Coupling
148003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
