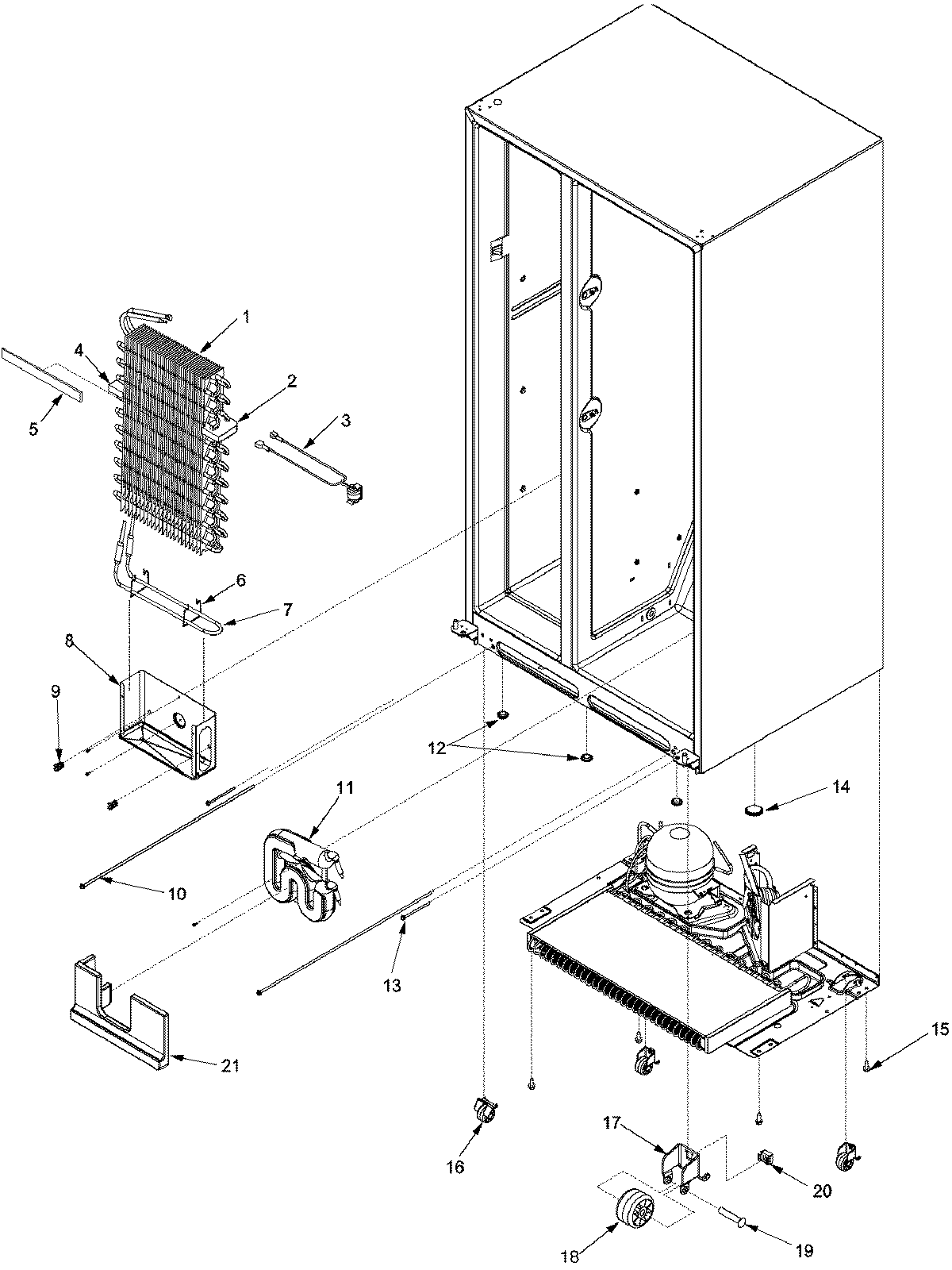

JCD2295HES 07 – EVAPORATOR ASSY AND ROLLERS

JCD2295HES 07 – EVAPORATOR ASSY AND ROLLERS

Written by

in

JCD2295HES 07 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
1MAY 12676401
2MAY 12590102
312002355 Whirlpool Refrigerator Thermistor Kit
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67002226
6W11673433 Whirlpool Clip
7WP67004188 Whirlpool Heater Defrost Assembly
8MAY M0224416
8MAY 12558101WD
9MAY 10623003
10MAY 10093315
11MAY R0131625
11MAY M0211018
12MAY A3080001
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15MAY 67001510
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18MAY 10450602
19MAY M1205302
20MAY M0286708
21MAY 67004309
22MAY 67004189
