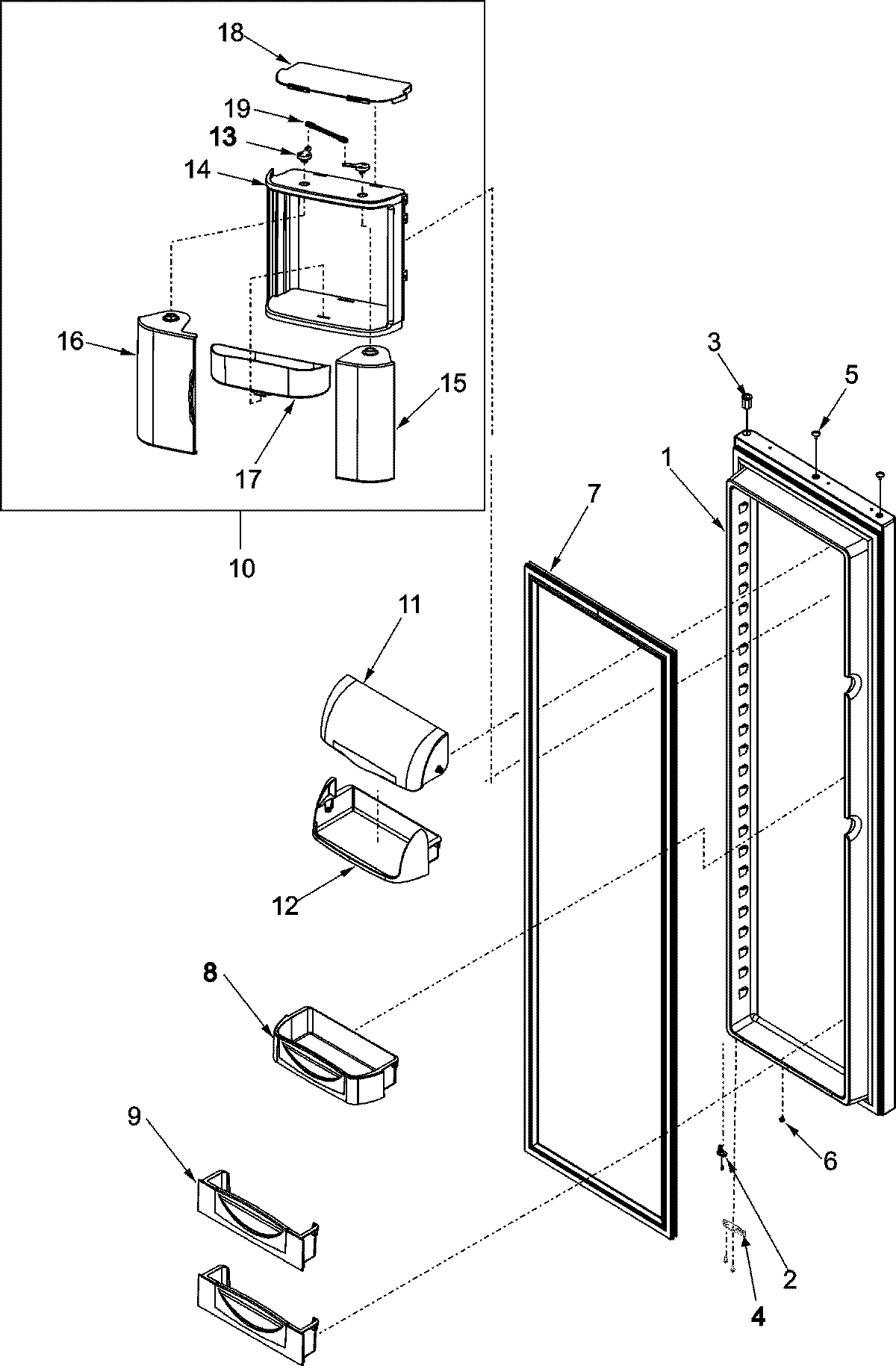

JCD2295HES 16 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67004468
2MAY R0181181
2MAY M0220432
3MAY 10961002
4MAY 12636401B
4MAY M0211018
5MAY M0311607
6MAY A3080001
7W10840101 Whirlpool Refrigerator FIP Gasket
8MAY 67004540
9MAY 67004498
10MAY 67004539
11MAY 67001325
12MAY 67002304
14Frame, Chiller (Large)
15Door Chiller (RT) (Large)
16MAY 67004542
17Tray, Chiller (2)
18Cover, Chiller (2)
19Linkage, Chiller (4)
