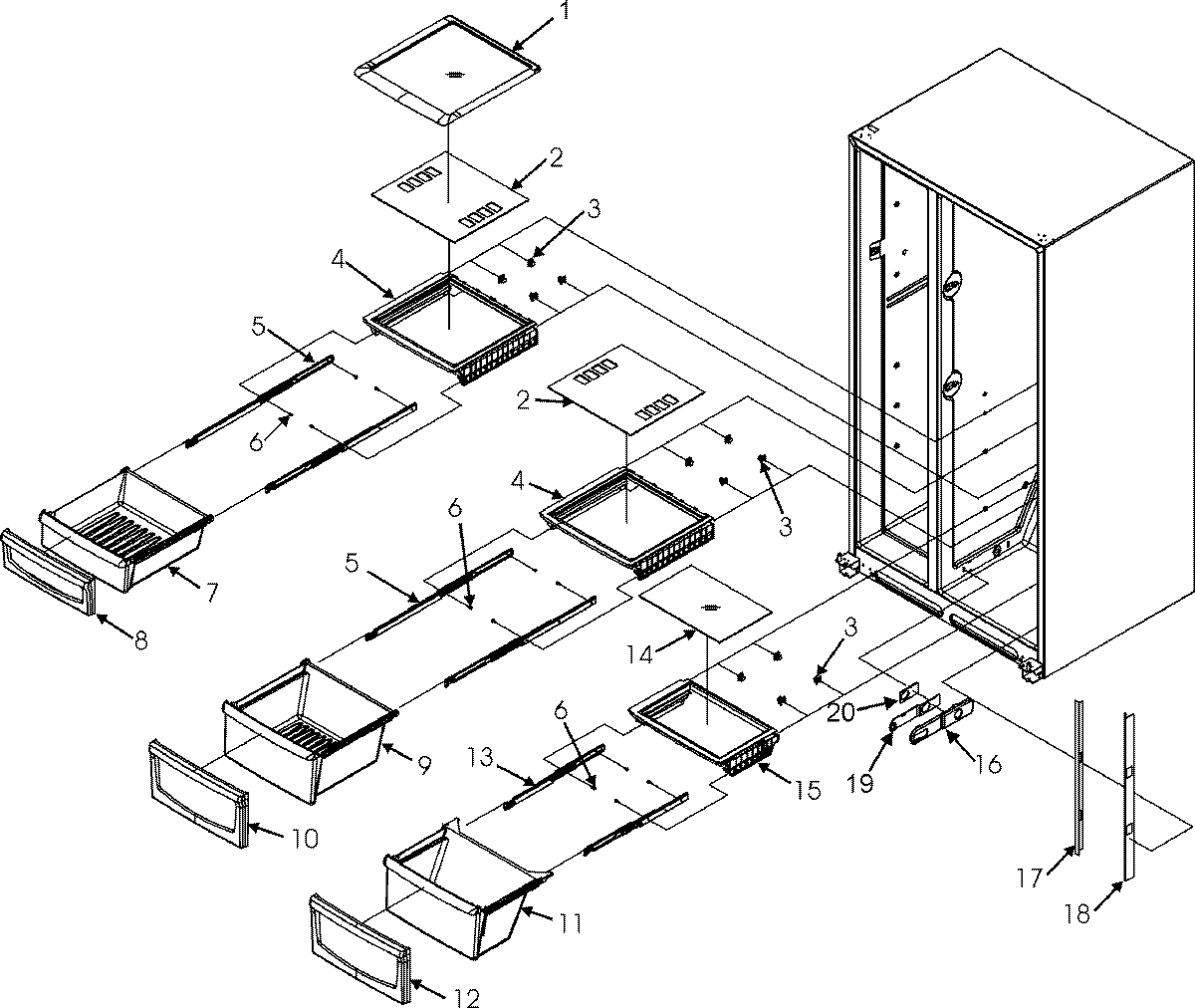

JCD2295KES 04 – CRISPER ASSEMBLY

JCD2295KES 04 – CRISPER ASSEMBLY

Written by

in

JCD2295KES 04 – CRISPER ASSEMBLY

Products

PositionProduct
1MAY 67004130
2MAY 67004484
3WP12603701 Whirlpool Refrigerator Support
4WP67004531 Whirlpool Refrigerator Frame
5MAY 67004489
5MAY 67005620
6MAY M0213129
7MAY 67004532
7MAY 67005820
8MAY 67004425
9WP67005816 Whirlpool Refrigerator Pan
10MAY 67004115
11MAY 67005639
11MAY 67004206
12MAY 67004426
13MAY 67005898
1367005620 Whirlpool Refrigerator Glide CRI
14MAY 67004132
15MAY 67004247
16HOUSING, TEMP. CONTROL
17PILLAR (LT)
18PILLAR (RT)
19SLIDE, TEMP. CONTROL
20MAY 67004177
