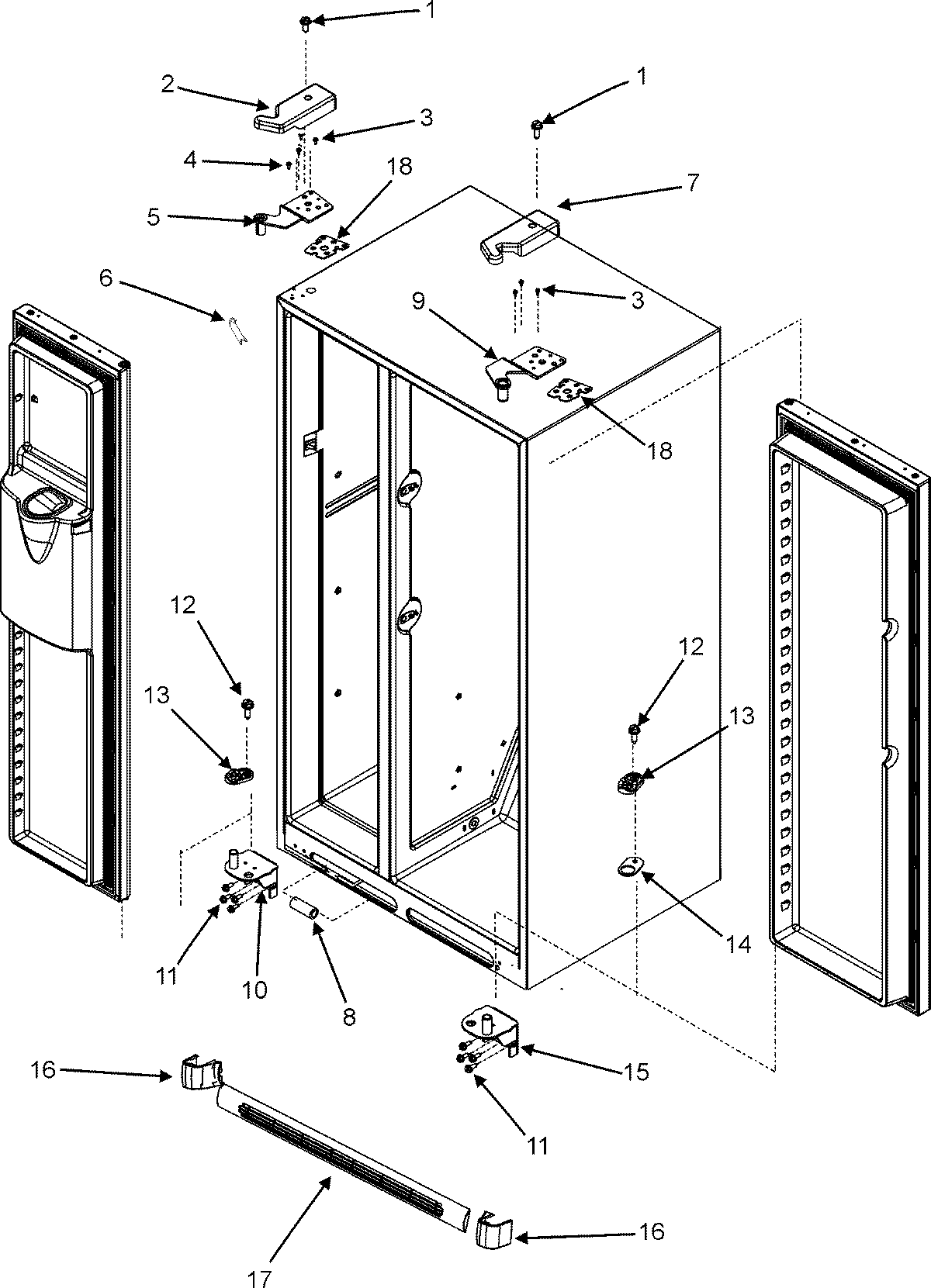

JCD2297KEF 12 – HINGES & TOE GRILLE (SERIES 10)

JCD2297KEF 12 – HINGES & TOE GRILLE (SERIES 10)

Written by

in

JCD2297KEF 12 – HINGES & TOE GRILLE (SERIES 10)

Products

PositionProduct
1WP8281196 Whirlpool Screw
2MAY 12629802W
3MAY M0238731
4W11214483 Whirlpool Refrigerator Screw
512626911ED Whirlpool Refrigerator Door Hinge
667003484 Whirlpool Refrigerator White Corner Cover
7Cover, Right Hinge (White)
8WP2300868 Whirlpool Refrigerator Fitting
912626910ED Whirlpool Refrigerator Door Hinge
10MAY 12636901ED
11MAY 67003858
12MAY M0220431
13MAY 12431302
14MAY 10361806
15MAY 67005413
16MAY 12630301W
17Clip, Grille
17TOE GRILLE ASSY (WHT)
18MAY 12695601
