JCD2297KEF 13 – HINGES & TOE GRILLE (SERIES 12)

Products

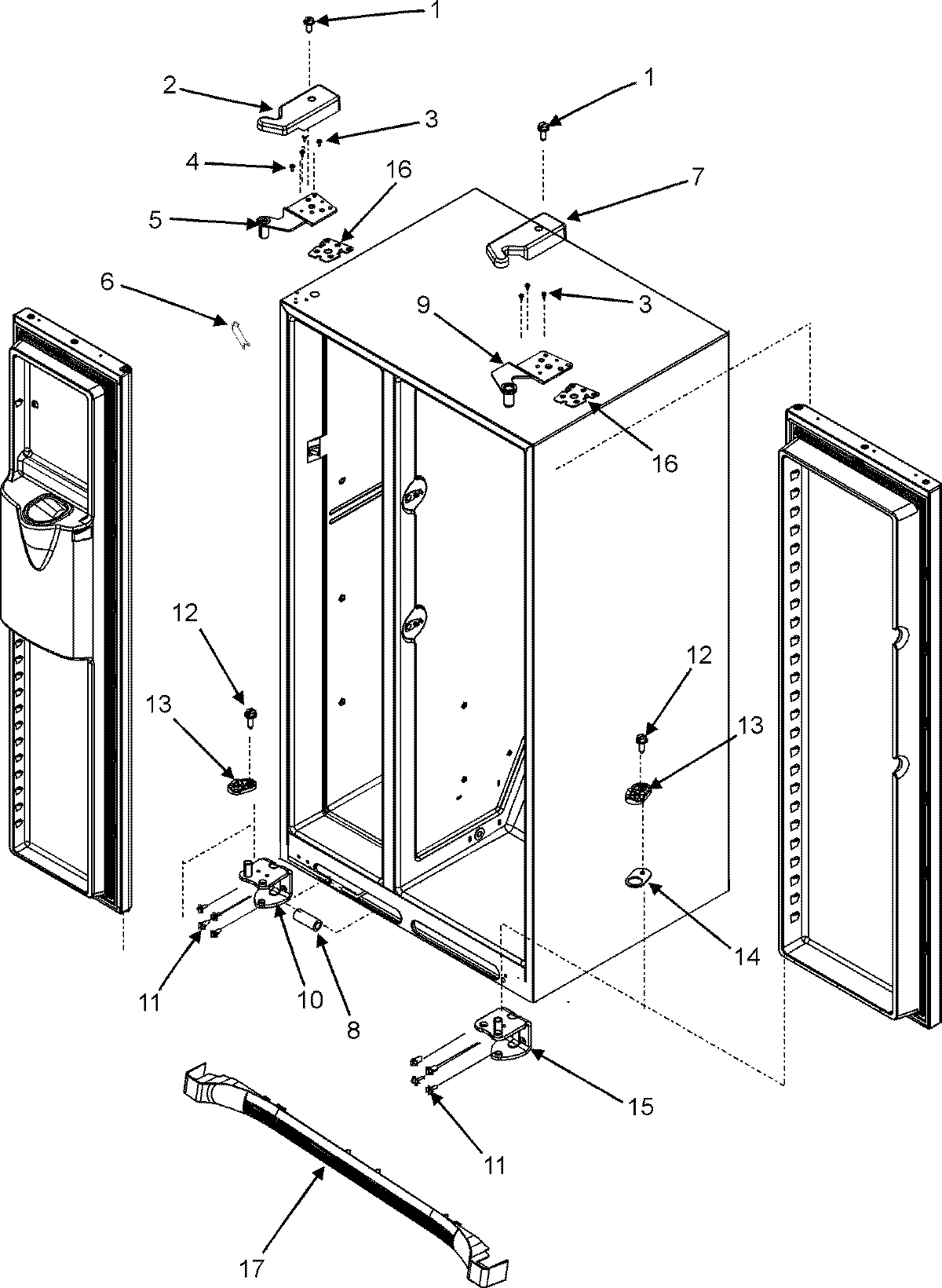

PositionProduct
1WP8281196 Whirlpool Screw
2MAY 12629802W
3MAY M0238731
4W11214483 Whirlpool Refrigerator Screw
512626911ED Whirlpool Refrigerator Door Hinge
667003484 Whirlpool Refrigerator White Corner Cover
7Cover, Right Hinge (White)
8WP2300868 Whirlpool Refrigerator Fitting
912626910ED Whirlpool Refrigerator Door Hinge
10MAY 67006685
11MAY 67003858
12MAY M0220431
13MAY 67006493
14MAY 10361806
15MAY 67006686
16MAY 12695601
17Clip, Grille
17WP67006687 Whirlpool Refrigerator Front Grille
