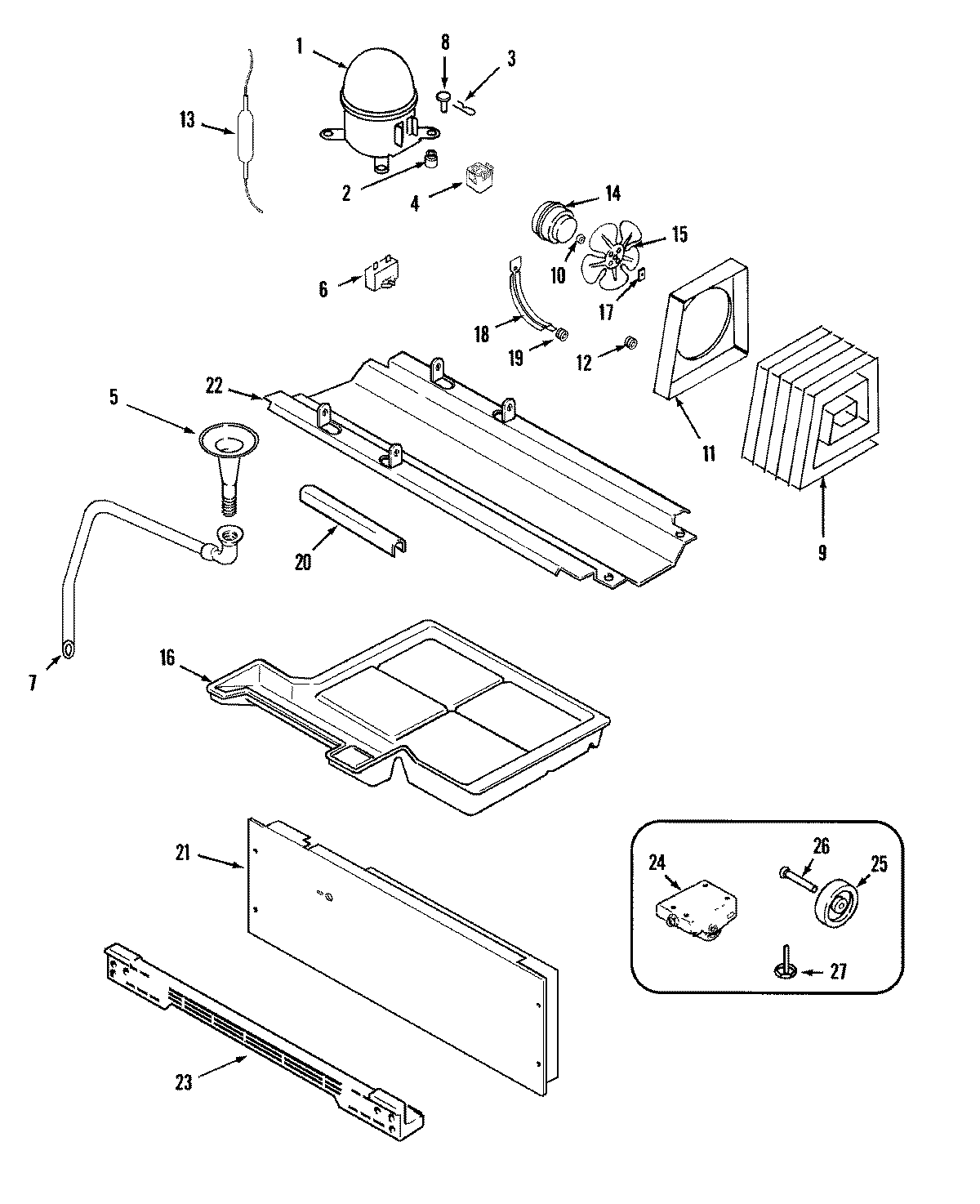

JCD2389DES 01 – COMPRESSOR (JCD2389DEB/Q/S/W)

Products

Position	Product
1	MAY 61004917
1	MAY 12001777
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
2	MAY 17245-4
3	MAY 61003099
4	MAY 61005620
4	MAY 61004918
5	MAY 61004751
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	MAY 53516-9
7	MAY 61003133
8	MAY 52656-2
9	MAY 61003814
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	833697 Whirlpool Condenser Fan Motor
15	MAY 60683-1
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61004584
21	MAY 61004674
21	MAY 65275-50
22	MAY 61003816
22	WP67006715 Whirlpool Refrigerator Screw
22	MAY 61005269
23	MAY 61004055
24	WP489478 Whirlpool Refrigerator Screw
24	MAY 61005232
24	MAY 61002066
24	SCREW
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 61002014
28	MAY 12001548
29	MAY 61004965
30	MAY 16010154
