JCD2389DES 10 – ICE MAKER (JCD2389DEB/Q/S/W)

JCD2389DES 10 – ICE MAKER (JCD2389DEB/Q/S/W)

Written by

in

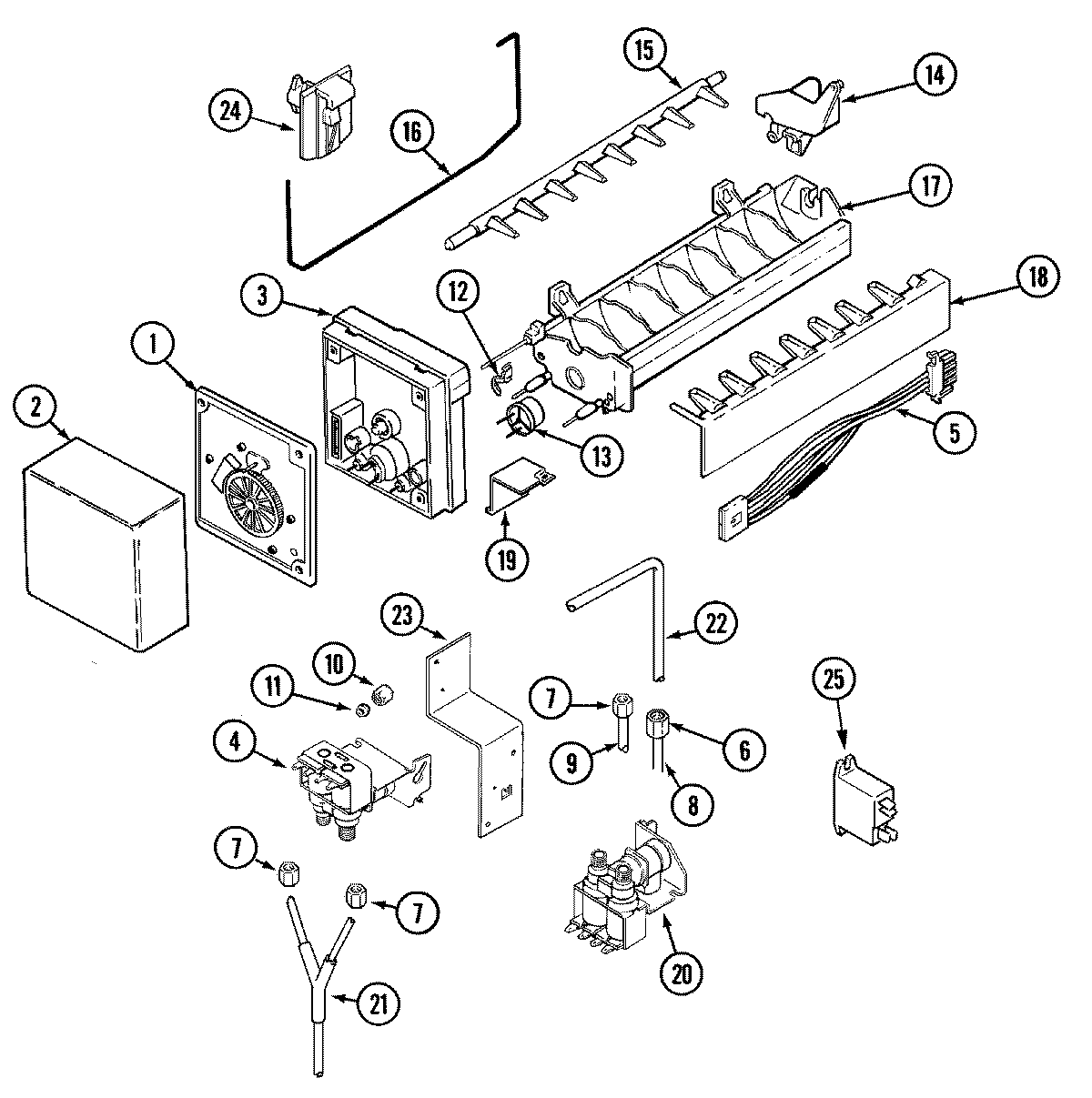

JCD2389DES 10 – ICE MAKER (JCD2389DEB/Q/S/W)

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
1MAY 95109-1
2MAY 61004594
3WP2195914 Whirlpool Refrigerator Ice Maker Housing
3SCREW
412001892 Whirlpool Refrigerator Water Valve Kit with Filter
5MAY 61003575
5MAY 61005308
6MAY 69583-2
7WP627018 Whirlpool Refrigerator Nut
8SEE NOTE GROUND WIRE, GREEN
9MAY 67579-1
10WP245183 Whirlpool Nut
11WP487627 Whirlpool Refrigerator Sleeve
12WP2315522 Whirlpool Refrigerator Clip
13MAY 95093-1
13WP627985 Whirlpool Icemaker Cycling Thermostat
14WP628356 Whirlpool Refrigerator Fill Cup
15WP627843 Whirlpool Refrigerator Ejector Arm
16MAY 61004136
17D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18WP2182124 Whirlpool Refrigerator Stripper Arm
19BRACKET, MODULE & HEATER
19MAY 95108-1
20WP489399 Whirlpool Refrigerator Screw
2061005626 Whirlpool Water Inlet Valve
21WPM0114003 Whirlpool Microwave Speed Clip Clamp
21MAY 61005058
21MAY 61004391
22MAY 61004392
23MAY 61002819
23MAY 61003732
24WP61005028 Whirlpool Refrigerator Support
25MAY 61005004
25MAY 61005006
25MAY 61005057
