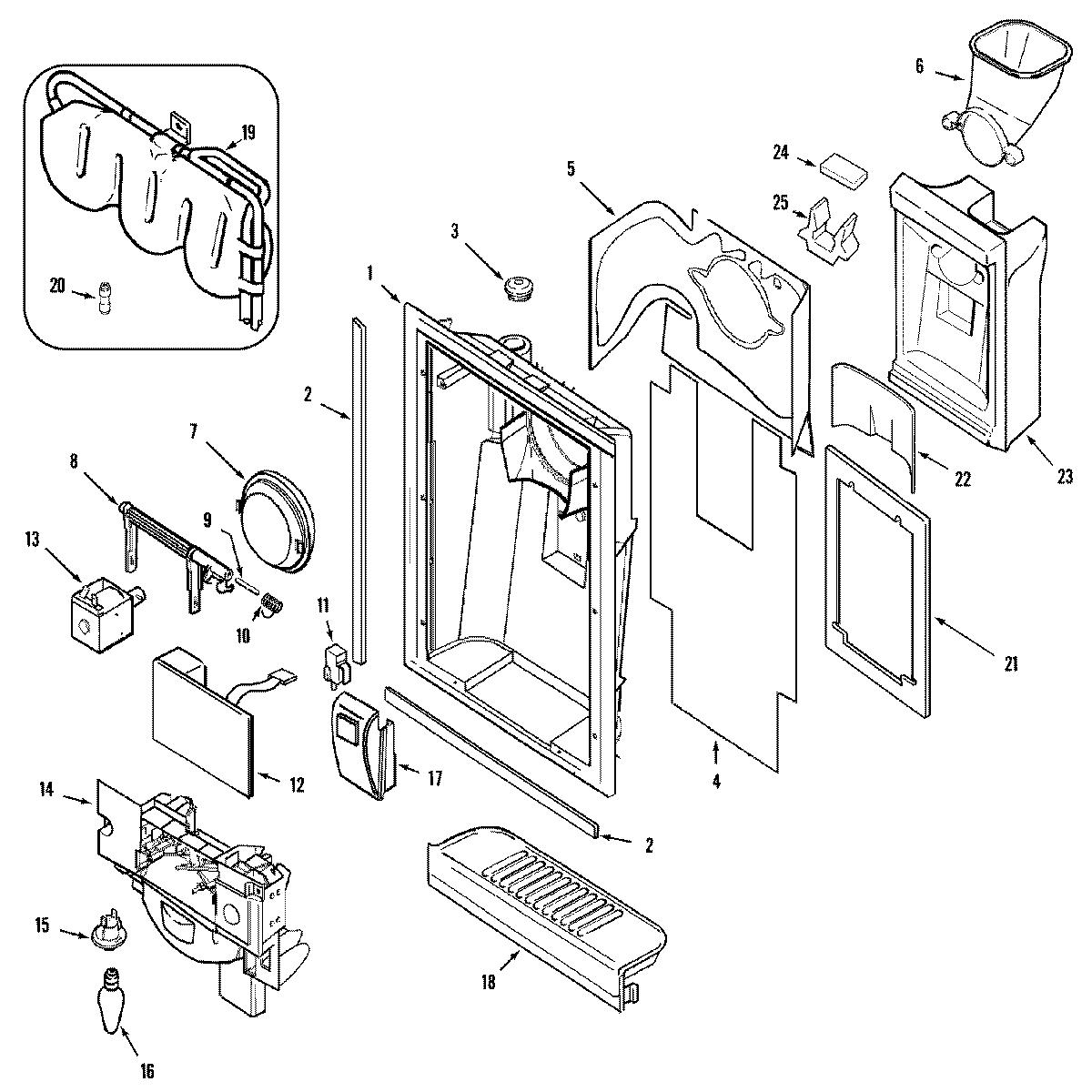

JCD2389DEW 03 – FOUNTAIN (JCD2389DEB/Q/S/W)

JCD2389DEW 03 – FOUNTAIN (JCD2389DEB/Q/S/W)

Written by

in

JCD2389DEW 03 – FOUNTAIN (JCD2389DEB/Q/S/W)

Products

PositionProduct
1MAY 61003307
1MAY 61004675
2MAY 61003286
3MAY 61003300
4MAY 61003304
5MAY 61005001
6MAY 61004677
712001991 Whirlpool Ice Door Kit
9WP9705445 Whirlpool Refrigerator Roll Pin
1061004388 Whirlpool Ice Maker Door Spring
11MAY 61003124
11MAY 415041-35
12WP61005274 Whirlpool Refrigerator Electronic Control Board
12MAY 61005002
12MAY 61003426
13WP488234 Whirlpool Air Conditioner Screw
13SEE NOTE GROUND WIRE, GREEN
14WP61003407 Whirlpool Refrigerator Dispenser Control Bracket
14415013-35 Whirlpool Refrigerator Screw
15MAY 70119-1
16MAY 63179-1
17MAY 61004441
18MAY 61003411
19WP61003689 Whirlpool Water Tank
19WP67006908 Whirlpool Refrigerator Screw
20WP2300868 Whirlpool Refrigerator Fitting
21WP61003339 Whirlpool Refrigerator Insulation
22MAY 61003340
23MAY 61004724
24MAY 61003343
25MAY 61003308
26MAY 61005003
26MAY 61005275
26MAY 61004775
